Description

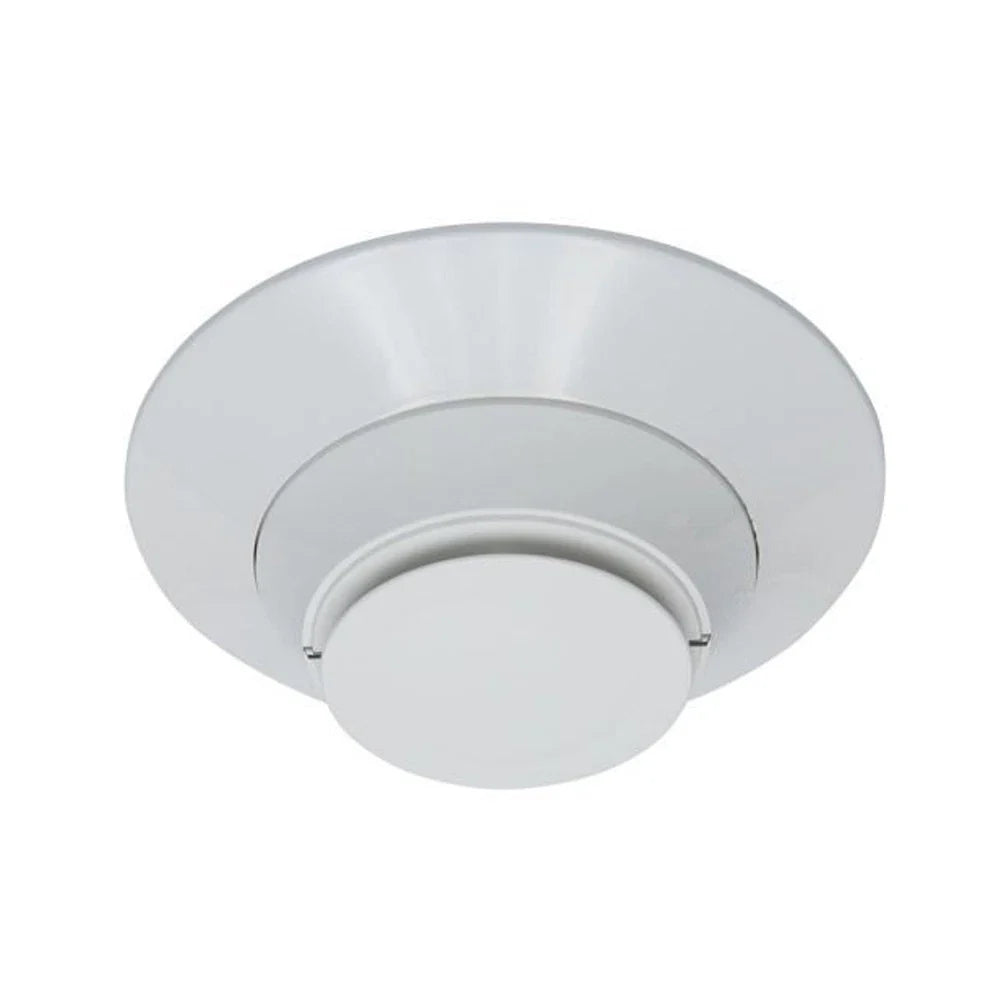

The Notifier NP-200T is an intelligent plug-in photoelectric smoke detector with an integrated 135°F (57°C) fixed-temperature heat sensor. Designed exclusively for FireWarden Series addressable panels, it offers advanced sensing performance and point-ID identification for precise fire detection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Notifier |
| Category |
Fire Safety |
| Part Number |
NP-200T |
| Subcategory |
Smoke Detector |
| Detector Type |
Intelligent plug-in photoelectric with 135°F heat sensor |
| Sensing Method |
Photoelectric light-scattering |
| Thermal Sensor Rating |
135°F (57°C), fixed temperature |
| Protocol |
FlashScan intelligent communication |
| Addressing Method |
Rotary decimal address switches |
| Compatible Panels |
FireWarden addressable series |
| LED Indicators |
Dual, bi-color status LEDs |
| Compatible Bases |
B300-6, B501-White, B200S-WH, B200SR-WH, B200S-LF-WH, B200SR-LF-WH, B224RB-WH, B224BI-WH |
| Compatible Accessories |
TR300, RA100Z(A) remote LED |
| Operating Environment |
Indoor dry locations |
| Installation |
Low-profile plug-in base mounting |
| Function |
Smoke and fixed-temperature fire detection |
| Status |
Active replacement for NP-100 Series |
| Weight |
0.20 lbs (typical detector weight) |
Information About NP-200T
The NP-200T is part of Notifier’s NP-200 Series, a family of next-generation photoelectric detectors engineered as direct replacements for the NP-100 Series. Its redesigned optical chamber improves sensitivity to a wide range of slow- and fast-burning fire types, meeting modern code requirements. The detector communicates using the FlashScan protocol, enabling rapid polling and precise system response while allowing address selection via rotary decimal switches. With a low-profile housing and compatibility with multiple intelligent bases, the NP-200T is suited for both new installations and system upgrades in commercial fire-protection environments.
Key Features:
- Photoelectric Smoke Detection: Enhanced optical chamber for improved response to various combustion sources.
- Built-In 135°F Heat Sensor: Integrates fixed-temperature thermal detection for multi-criteria fire protection.
- FlashScan Intelligent Protocol: Provides fast communication, reduced latency, and reliable detector supervision.
- Point-ID Addressing: Rotary decimal address switches allow precise location identification for emergency personnel.
- Modern Low-Profile Design: Sleek aesthetic suitable for commercial and institutional environments.
- Dual Status LEDs: Provides local visual indication of power, alarm, and diagnostic conditions.
- Compatible with FireWarden FACPs: Designed exclusively for Notifier addressable control panels using FlashScan.
- Supports Multiple Mounting Bases: Works with sounder bases, relay bases, isolator bases, and low-profile standard bases.
- Remote LED Annunciator Support: Allows visual status indication from a remote location for concealed or high-ceiling installations.
- Direct Replacement for NP-100 Series: Simplifies upgrades without major system redesign.
The NP-200T delivers the reliability and precision required for modern addressable fire-detection systems.
