Description

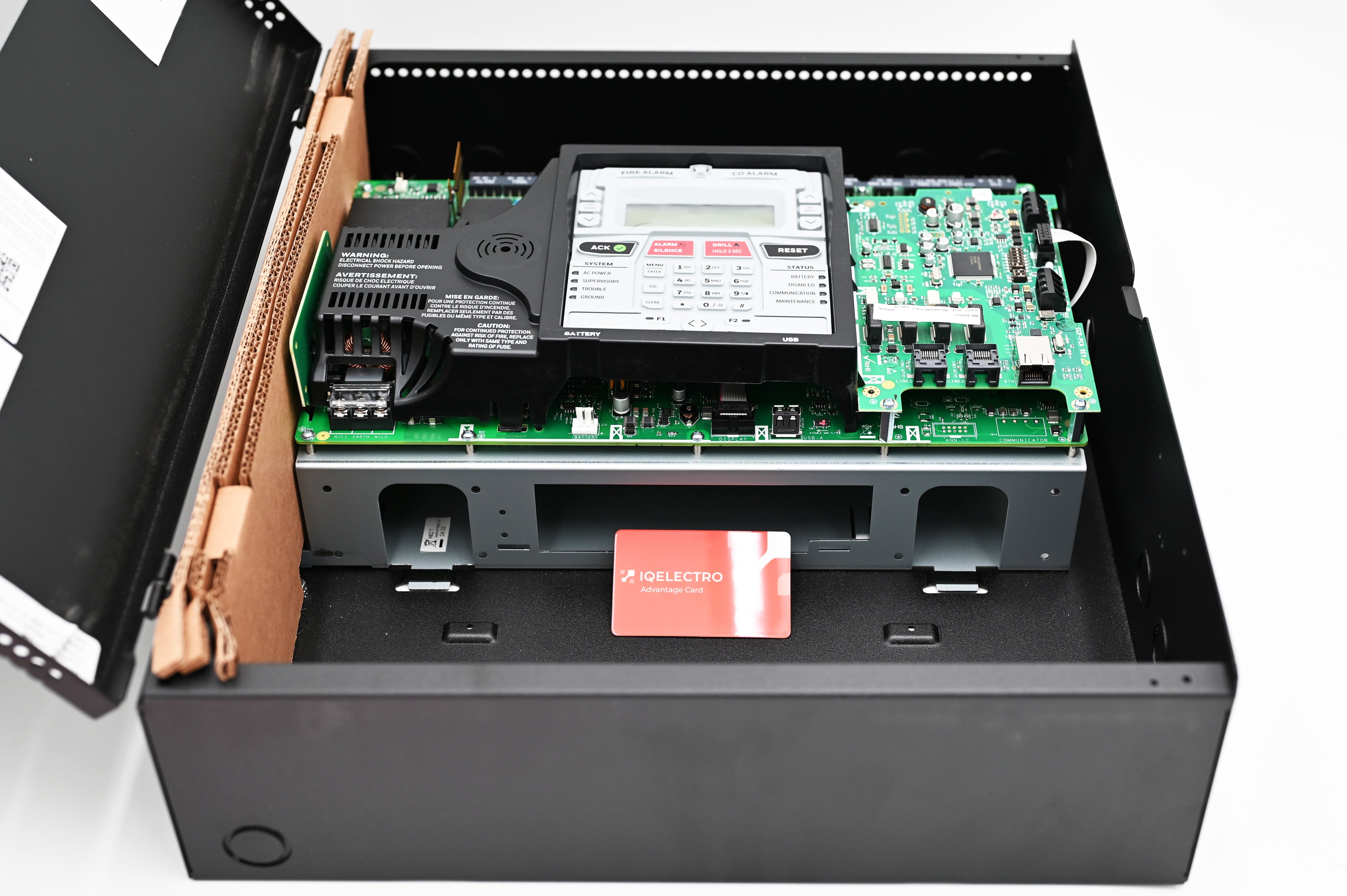

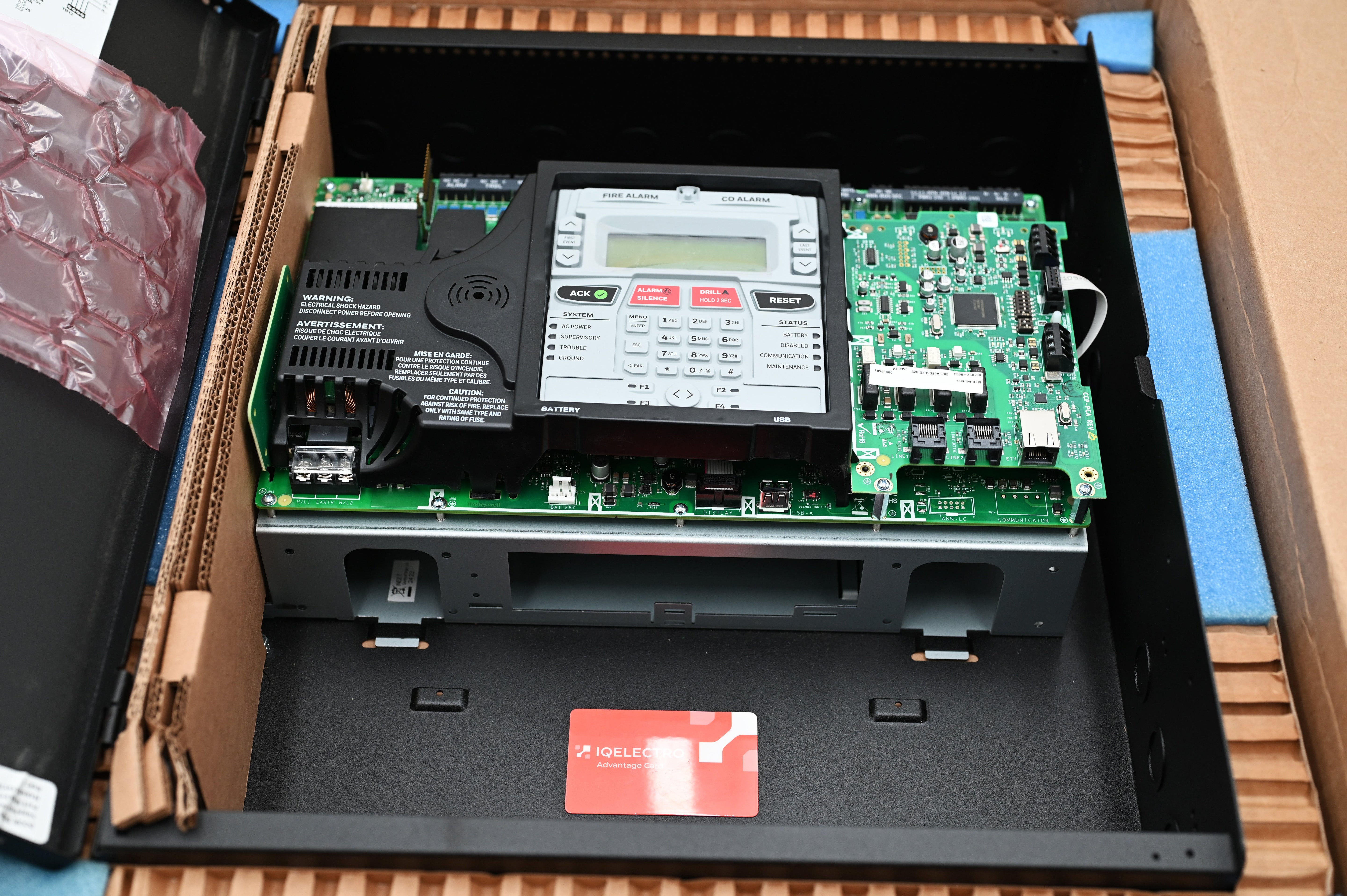

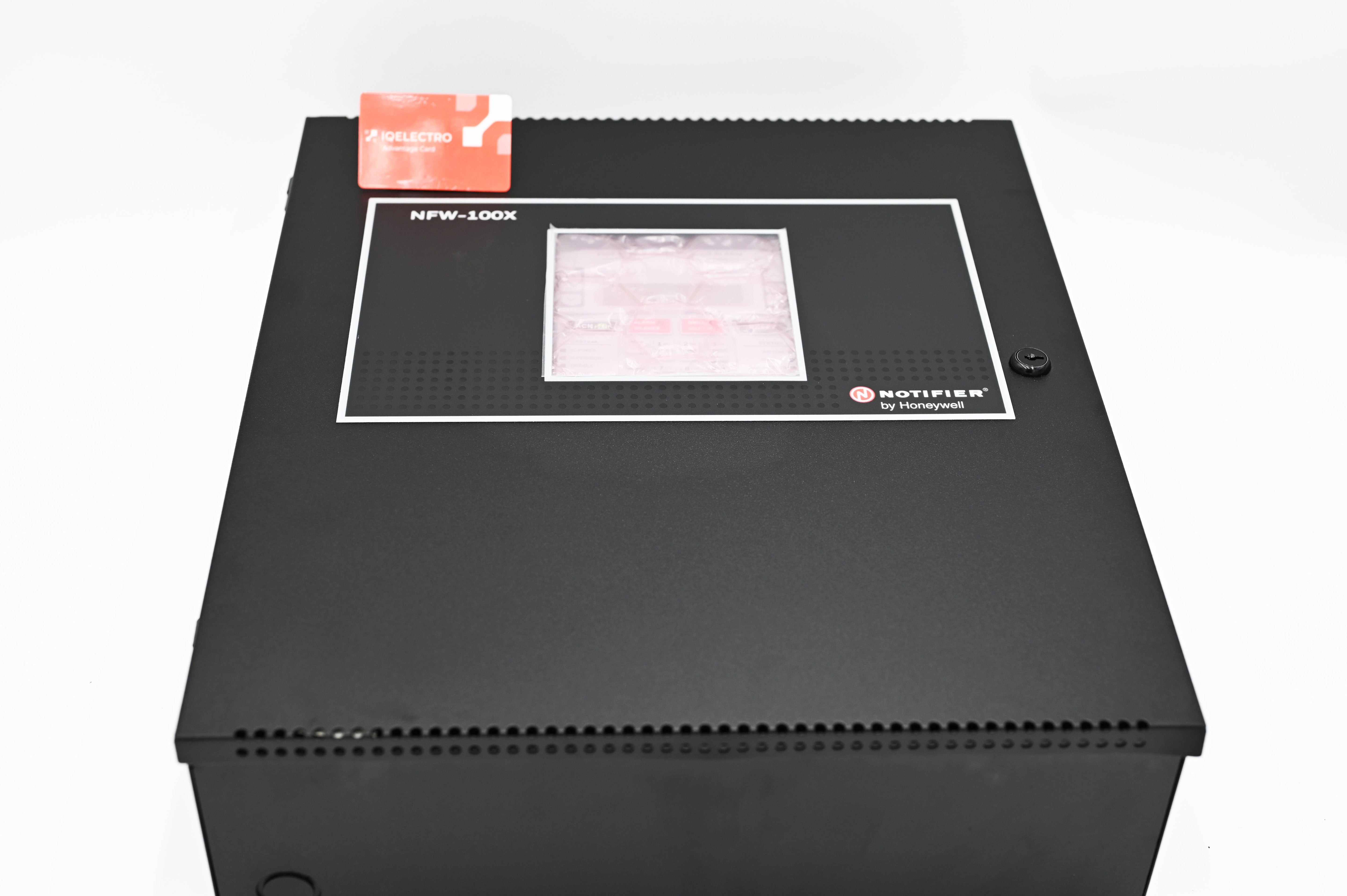

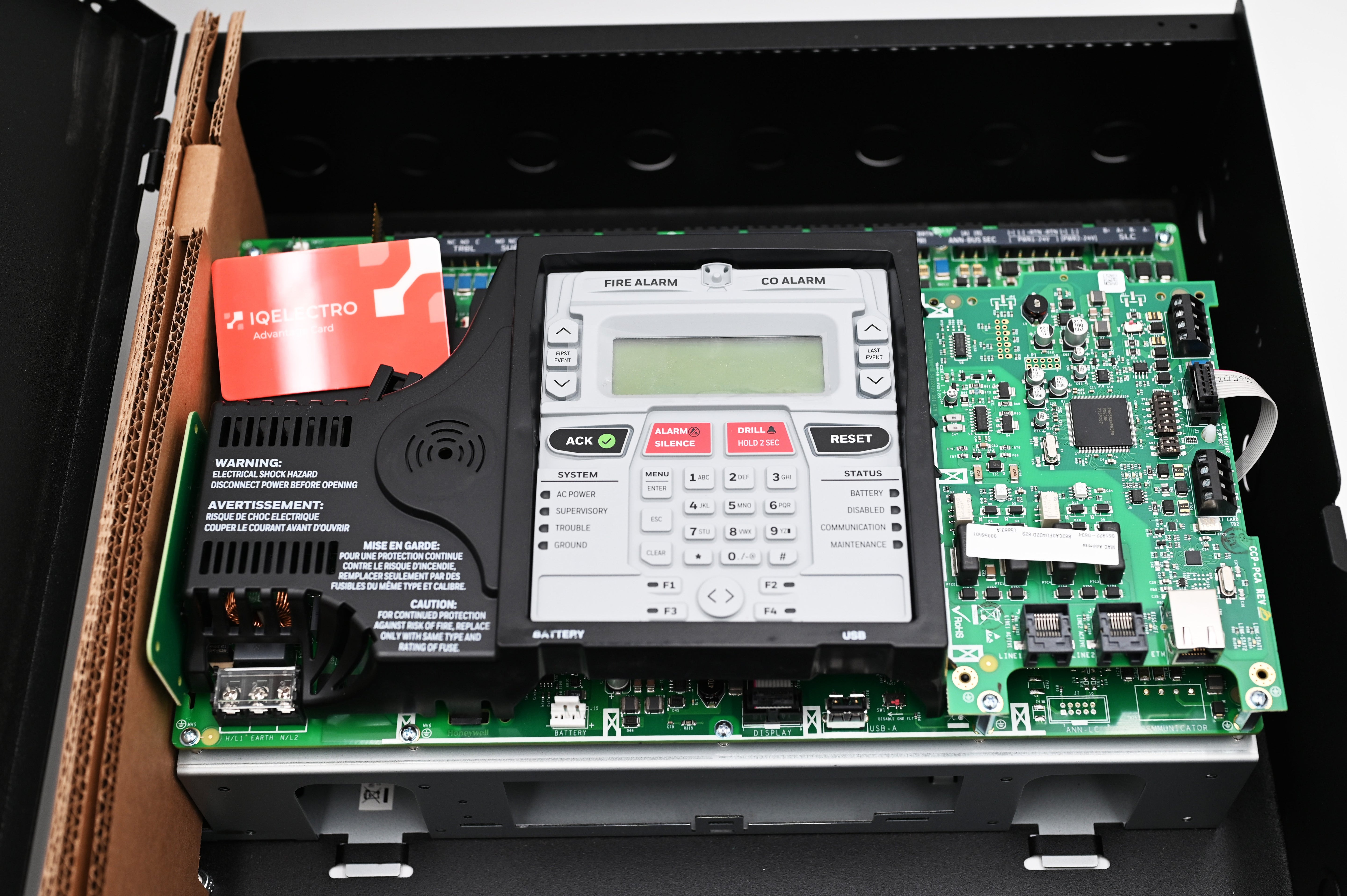

The NFW-100X is an intelligent addressable fire alarm control panel from the ONYX Series by Notifier, engineered for mid-size commercial or institutional applications. It combines reliable fire detection, high system capacity, and modern communication technologies in a compact and modular platform.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Notifier |
| Category |
Fire Detection & Alarm Systems
|
| Part Number |
NFW-100X |
| Subcategory |
Addressable Fire Alarm Panels |
| Intelligent SLCs |
1 |
| Addressable Device Capacity |
198 (99 detectors + 99 modules) |
| NAC Circuits |
4 (2.5 A special application, 250 mA regulated)
|
| System Zones |
99 programmable software zones |
| Annunciators |
Up to 16 (8 per ANN-BUS) |
| Communication |
IPOTS-COM (IP + POTS), USB, optional CELL-MOD/4XTM |
| Relays |
2 programmable Form-C, 1 fixed trouble relay |
| Power Supply |
120/240 VAC, 50/60 Hz, 3.25 A auto-sensing |
Battery Backup
|
Supports two 12 V 18 AH sealed lead-acid batteries |
| Cabinet Size |
20.00" H × 22.25" W × 5.13" D (508 mm × 565 mm × 130 mm) |
| Weight |
16.00 lbs |
Information About NFW-100X
The NFW-100X is the latest model in the FireWarden line and supports up to 198 addressable devices and 99 software zones. It includes a pre-installed IPOTS-COM communicator, providing both POTS and IP connectivity for dual-path alarm transmission. Designed with ease of installation and programming in mind, the panel features a USB port for quick uploading/downloading and supports remote programming using FS-Tools software.
Key Features:
- Dual Path Communication: Comes standard with IPOTS-COM module supporting both IP and POTS for primary/backup transmission.
- High System Capacity: Supports 198 addressable devices, 99 zones, and up to 16 annunciators (8 per ANN-BUS).
- Integrated USB Port: Allows fast access to panel programming, history, and diagnostics using flash drives or FS-Tools.
- Built-in NAC Circuits: Includes four NACs configurable as Class A or B, with sync support for System Sensor, Gentex, and others.
- Flexible Configuration: Offers two programmable and one fixed trouble relay, selectable verification and sensitivity levels per point.
The NFW-100X delivers advanced fire protection functionality in a compact, cost-effective platform tailored for modern facility safety systems.
