Description

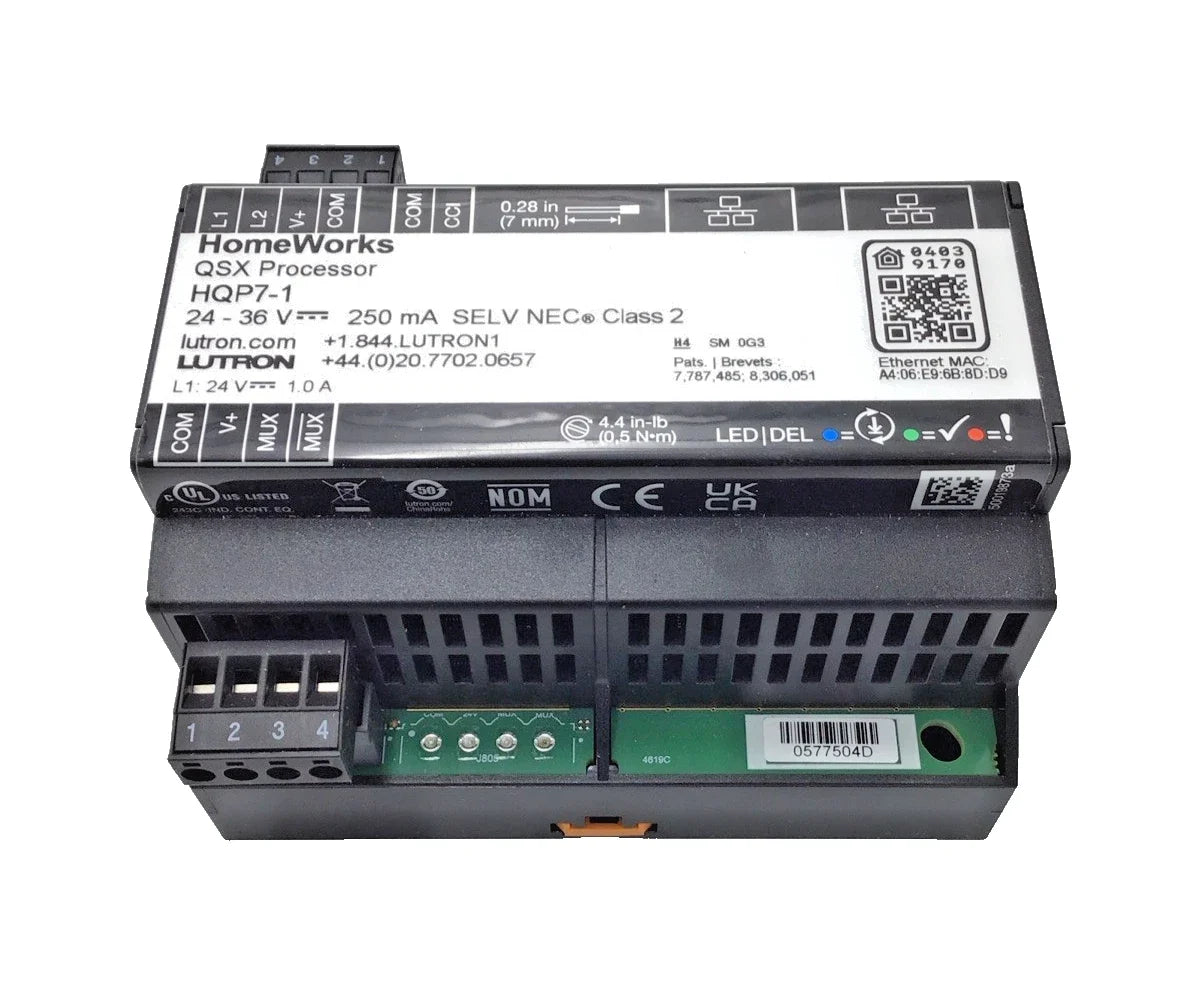

The Lutron HQP7-1 is a HomeWorks QSX processor providing centralized control and communication for QSX system components. It supports integration with third-party systems and multiple processors via Ethernet connectivity. The unit enables advanced automated lighting control in premium residential environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
|
| Part Number |
HQP7-1 |
| Subcategory |
Processors |
| Series |
HomeWorks QSX |
| Power Input |
24–36 V, 250 mA |
| Typical Power Consumption |
4.2 W (8 PDUs) |
| Cooling |
Passive |
| Communication |
Ethernet, RS485 (QS/RF)
|
| Link Capacity |
Up to 99 devices / 512 zones per wired link |
| Time-clock Accuracy |
±1 minute per year |
| Time-clock Retention |
10 years |
| Surge Protection |
ANSI/IEEE C62.41 compliant |
| ESD Protection |
IEC 61000-4-2 compliant |
| Mounting Panels |
HQ-LV21, L-LV21, L-LV14, PDx |
| Dimensions (with terminals) |
108 × 100 mm (4.25 × 3.94 in) |
| Environment |
0–40 °C, 0–90% RH non-condensing |
| Weight |
0.45 kg (approx.) |
Information About HQP7-1
The HQP7-1 is part of Lutron’s HomeWorks QSX processor family engineered to connect system devices, designer software, and Clear Connect Type X gateways on a unified Ethernet network. Powered from a 24–36 V supply, it features dual Ethernet ports, passive cooling, and time-clock retention up to 10 years. Compatible with HQ-LV21, L-LV21, L-LV14, and PDx control panels, it offers RS485 QS/RF communications and mis-wire protection. The processor supports up to 99 QS wired devices per link, ensuring scalable system expansion.
Key Features:
- Single Configurable Link: Supports either a QS wired device link or a Clear Connect Type A wireless link.
- Dual Ethernet Ports: Enables networking, programming, processor communication, and third-party integration.
- RS485 Communication: Provides reliable communication with compatible HomeWorks devices.
- Centralized System Management: Controls lighting, shades, keypads, and automation devices from one processor.
- High Device Capacity: Supports up to 99 wired devices or 99 wireless devices, depending on link configuration.
- Non-Volatile Memory: Retains programming and schedules during power interruptions.
- Integrated Timeclock: Provides accurate scheduling with up to 10 years of clock retention.
- Advanced Protection: Includes surge, ESD, over-voltage, and wiring fault protection.
The HQP7-1 delivers the reliability and precision required for centralized lighting, shading, and integrated building automation systems.
