Description

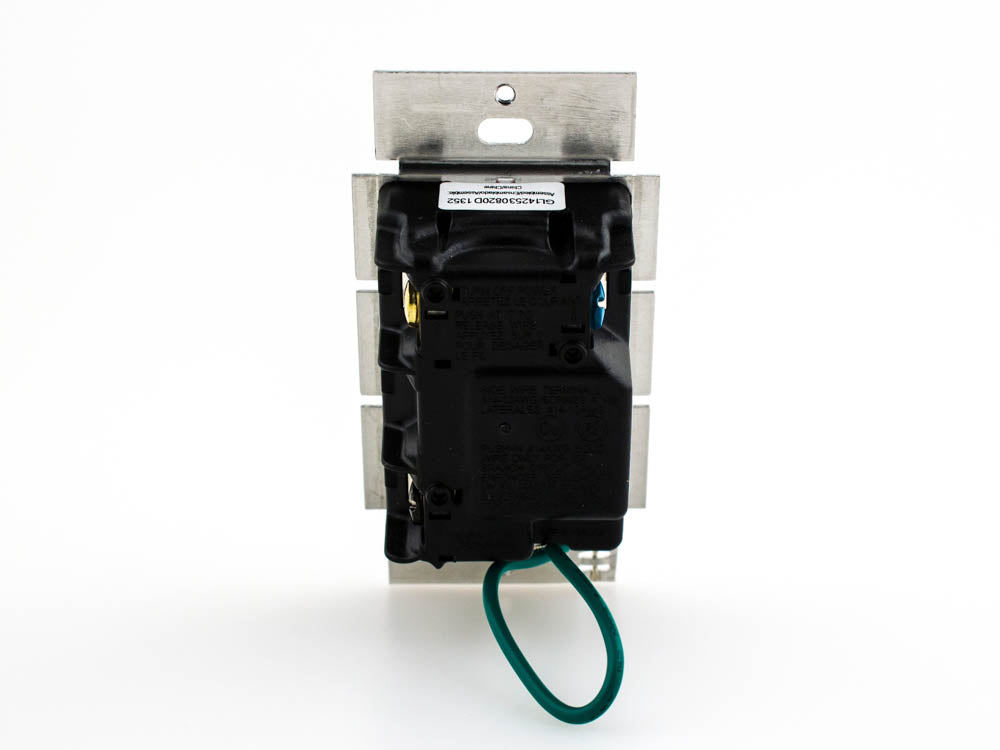

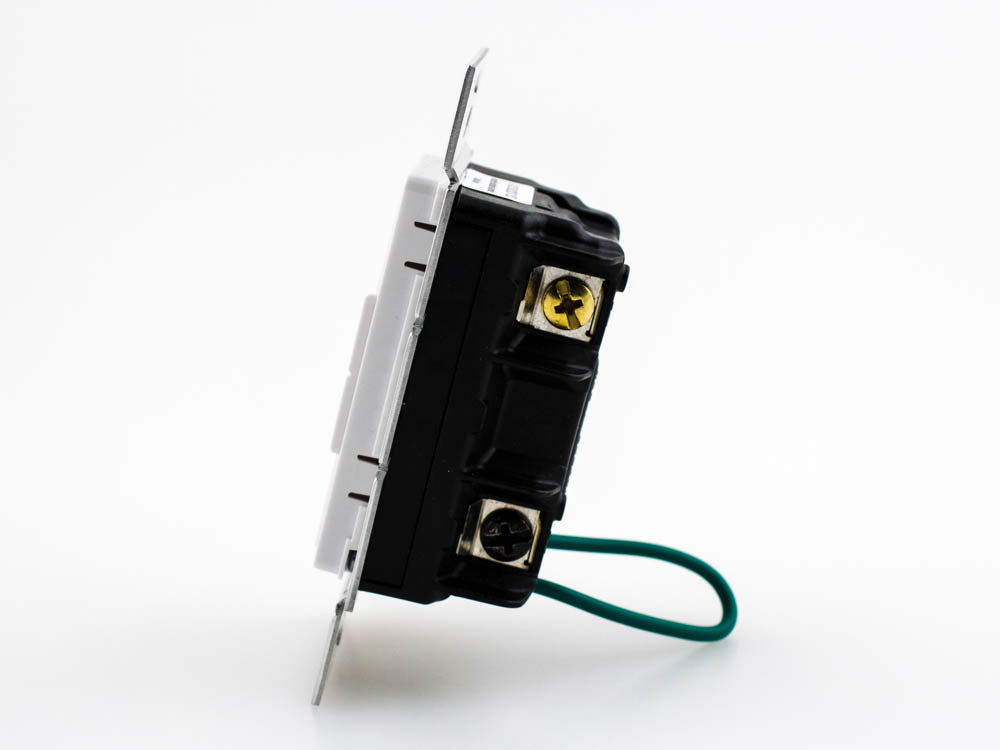

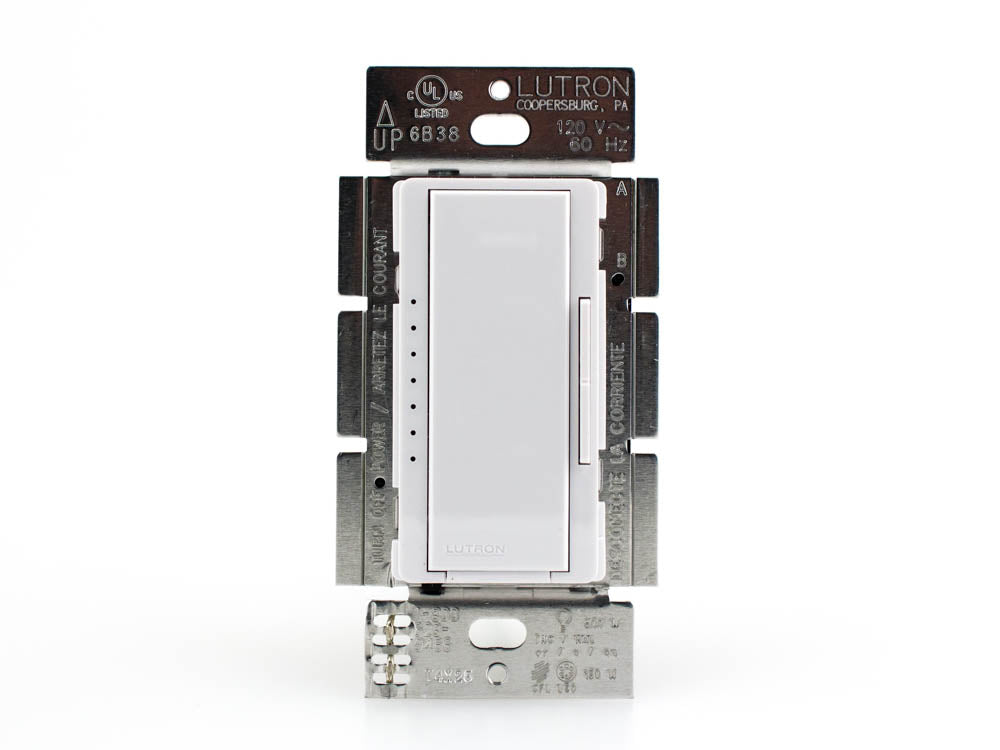

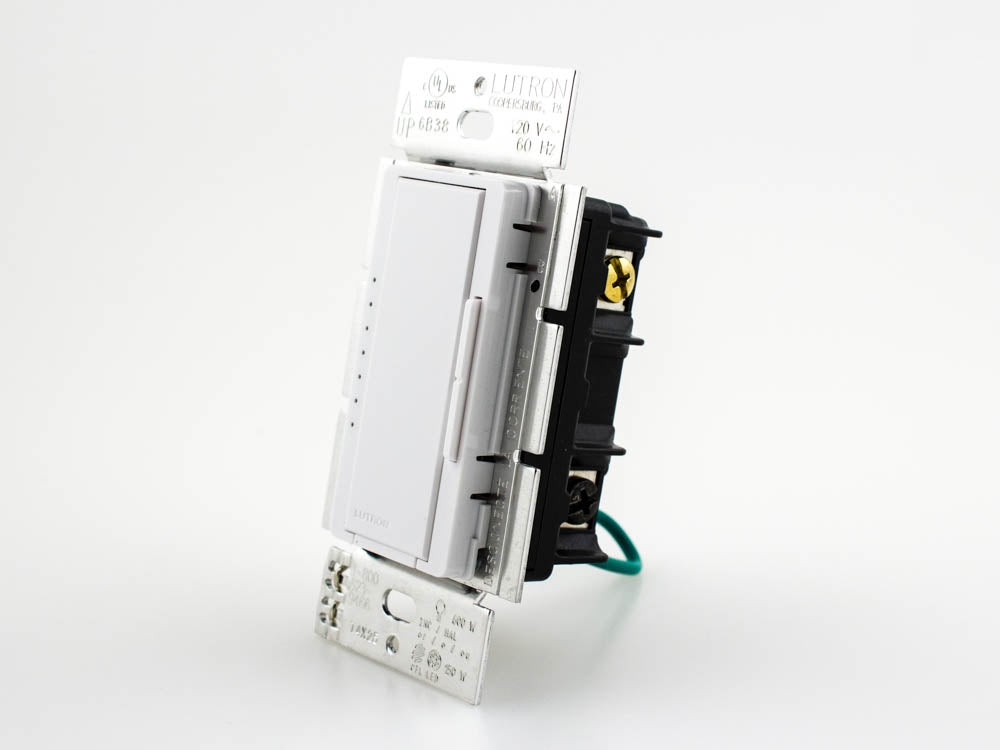

The Lutron MACL-153M-WH is a versatile slide dimmer designed to control dimmable LED and CFL lighting up to 150 watts at 120 volts. It supports 3-way applications allowing lights to be dimmed or switched from two locations. This dimmer features a convenient rocker switch combined with a smooth slide control for precise brightness adjustment.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
|
| Part Number |
MACL-153M-WH |
| Subcategory |
Dimmers |
| Product Line |
Maestro |
| Load Capacity |
150 W CFL/LED, 600 W Incandescent/Halogen |
| Line Voltage |
120 V AC, 60 Hz |
| Switch Function |
Single Pole / 3-Way |
| Switch Mechanism |
Rocker / Paddle with Slide Dimmer
|
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Dimensions (W x H x D) |
2.9 in x 4.7 in x 1.5 in |
| Finish |
White |
| Compatibility |
Dimmable LED, CFL, Incandescent, Halogen |
| Power-Failure Memory |
Yes |
| Regulatory Approvals |
UL 1472, CSA C22.2 184.1, NOM |
| Weight |
1.0 kg |
Information About MACL-153M-WH
The MACL-153M-WH is part of the Lutron Maestro series, engineered for energy-efficient lighting control with broad bulb compatibility. It supports dimming for dimmable CFLs, LEDs, incandescent, and halogen bulbs, ensuring flexible use in residential settings. Designed for both single-pole and 3-way switch configurations, it enables multi-location lighting control when paired with compatible devices. The device includes advanced dimming technology and meets UL and CSA safety standards for reliable, safe operation.
Key Features:
- Load Capacity: Supports up to 150W dimmable CFL/LED or 600W incandescent/halogen loads.
- 3-Way Compatibility: Allows dimming and switching from two separate locations.
- Slide Dimmer with Rocker Switch: Combines on/off control with smooth brightness adjustment.
- No Neutral Wire Required: Suitable for retrofit installations without neutral wiring.
- Power-Failure Memory: Remembers the last dimming level after a power outage.
- Wide Operating Temperature: Functions between 32°F to 104°F (0°C to 40°C).
- Front Accessible Service Switch (FASST): Provides safe bulb replacement without turning off power.
- The MACL-153M-WH delivers reliable and precise dimming for modern LED and CFL lighting applications.
