Description

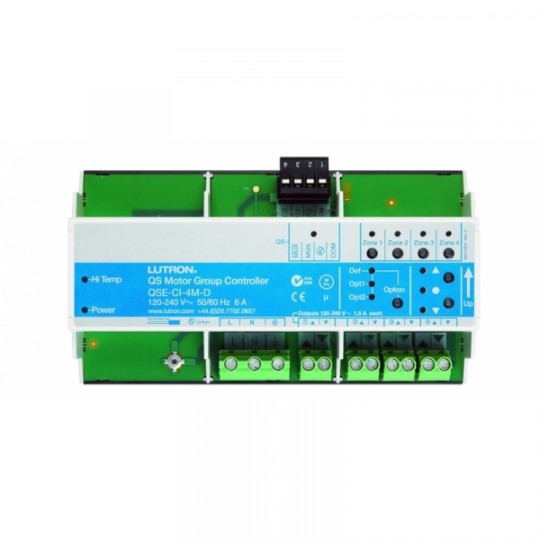

The QSE‑CI‑4M‑D is a 4‑output AC Motor Group Controller designed by Lutron for integration with HomeWorks QS, Quantum QS, and standalone QS systems.

Technical Specifications

Information About QSE-CI-4M-D

The QSE-CI-4M-D is a 4-output motor group controller developed by Lutron for integration with QS-based lighting and shading systems, including HomeWorks QS and Quantum. It enables control of up to four individual AC motor zones using a single power feed and communicates over the QS link. Designed for DIN rail mounting, the unit provides local diagnostic control, robust surge protection, and seamless compatibility with keypads, remotes, and network interfaces within the QS ecosystem.

Key Features:

• Multi-Zone Motor Control: Supports four independently controlled AC raise/lower motor outputs.
• Wide Voltage Compatibility: Operates on 120–240 V~ at 50/60 Hz, suitable for global installations.
• QS System Integration: Interfaces with HomeWorks QS, Quantum, and standalone QS systems over the QS link.
• Local Diagnostics: Includes zone selection, raise/lower buttons, and LED indicators for programming and troubleshooting.
• Device Compatibility: Works with Grafik Eye QS, seeTouch QS, Pico remotes, and QSE-CI-NWK-E network interfaces.
• Surge Protection: Built to withstand lightning and power surges in accordance with ANSI/IEEE standards.
• DIN Rail Mountable: Compact 9-DIN-unit design allows easy integration into control panels.
• Environmental Rating: Operates in 32–104 °F (0–40 °C) and up to 90% non-condensing humidity.
• Lightweight Design: Weighs approximately 0.340 kg (0.75 lb), ideal for space-sensitive installations.
• Used Condition: Often available in working used condition for retrofit or replacement purposes.

The QSE-CI-4M-D provides powerful, flexible motor control for QS systems, making it an essential component in automated shade and projection screen applications across residential, commercial, and AV installations.
