Description

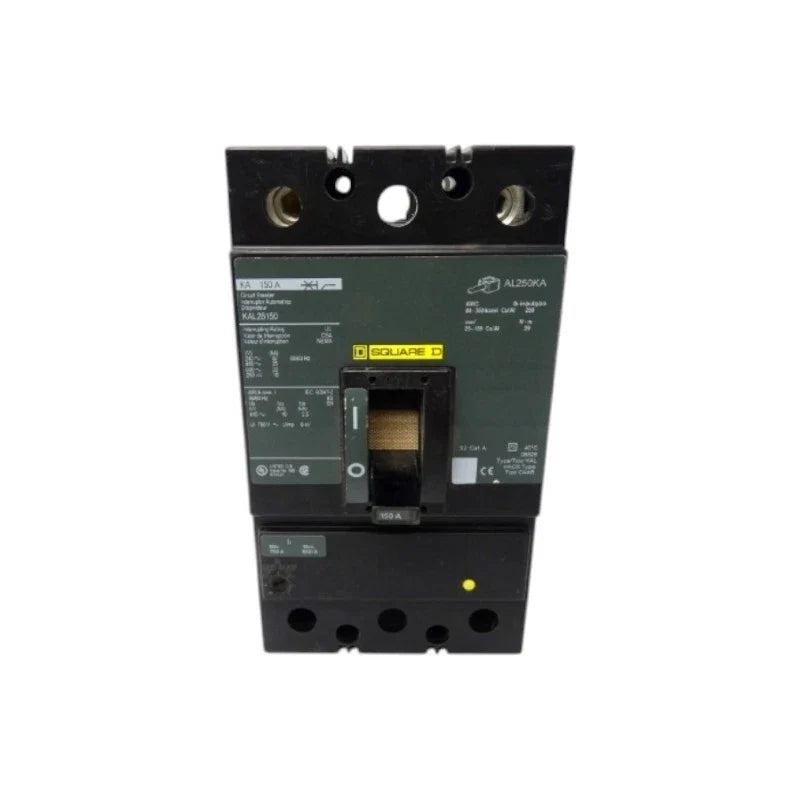

The Square D KAL26150 is a thermal-magnetic molded case circuit breaker designed for branch and feeder circuit protection in commercial and industrial power systems. This 2-pole breaker is rated at 150 amps and supports operating voltages up to 600 VAC. It provides dependable long-time and instantaneous trip protection for single-phase electrical applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Square D |
| Category |
Circuit Breakers |
| Part Number |
KAL26150 |
| Subcategory |
Molded Case Circuit Breaker |
| Series |
KAL |
| Rated Current |
150 A |
| Rated Voltage |
600 VAC |
| Number of Poles |
2 |
| Phase |
Single Phase |
| Trip Unit Type |
Thermal-Magnetic |
| Interrupting Rating |
25 kA @ 480 VAC |
| Connection Type |
Feed-Thru |
| Terminal Type |
Line and Load Side Lugs |
| Frame Type |
KAL |
| Weight |
6.57 lbs |
Information About KAL26150
The KAL26150 is part of the Square D KAL series of molded case circuit breakers, engineered for reliable overcurrent protection in power distribution systems. It features a thermal-magnetic trip unit that responds to sustained overloads and instantaneous fault conditions. The breaker is equipped with feed-thru connections and line/load lugs on both ends to support flexible installation configurations. It is commonly used in panelboards and switchgear where consistent electrical performance and fault protection are required.
Key Features:
-
Thermal-Magnetic Trip Unit: Provides long-time overload and instantaneous short-circuit protection.
-
150 Amp Current Rating: Suitable for higher-load branch and feeder circuits.
-
2-Pole Configuration: Designed for single-phase power distribution.
-
600 VAC Voltage Rating: Supports high-voltage electrical systems.
-
Feed-Thru Connection: Enables straightforward wiring and power flow continuity.
-

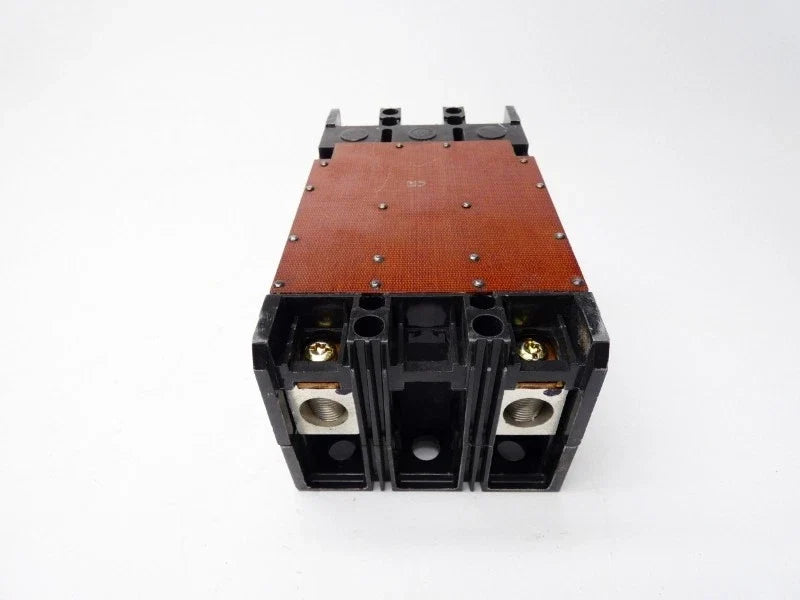

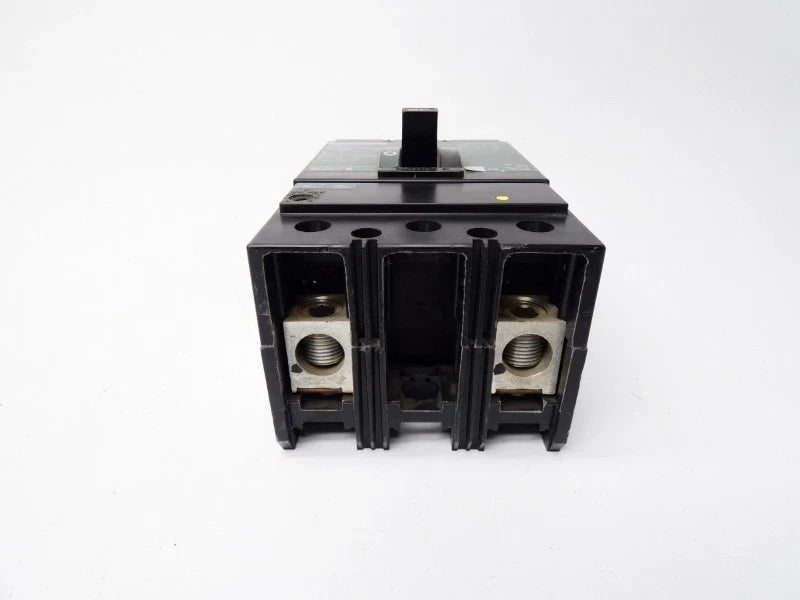

Line and Load Side Lugs: Allows secure conductor termination on both ends.
-
High Interrupting Capacity: Rated at 25 kAIC at 480 VAC for fault conditions.
The KAL26150 delivers the reliability and precision required for molded case circuit protection in commercial and industrial electrical installations.
