Description

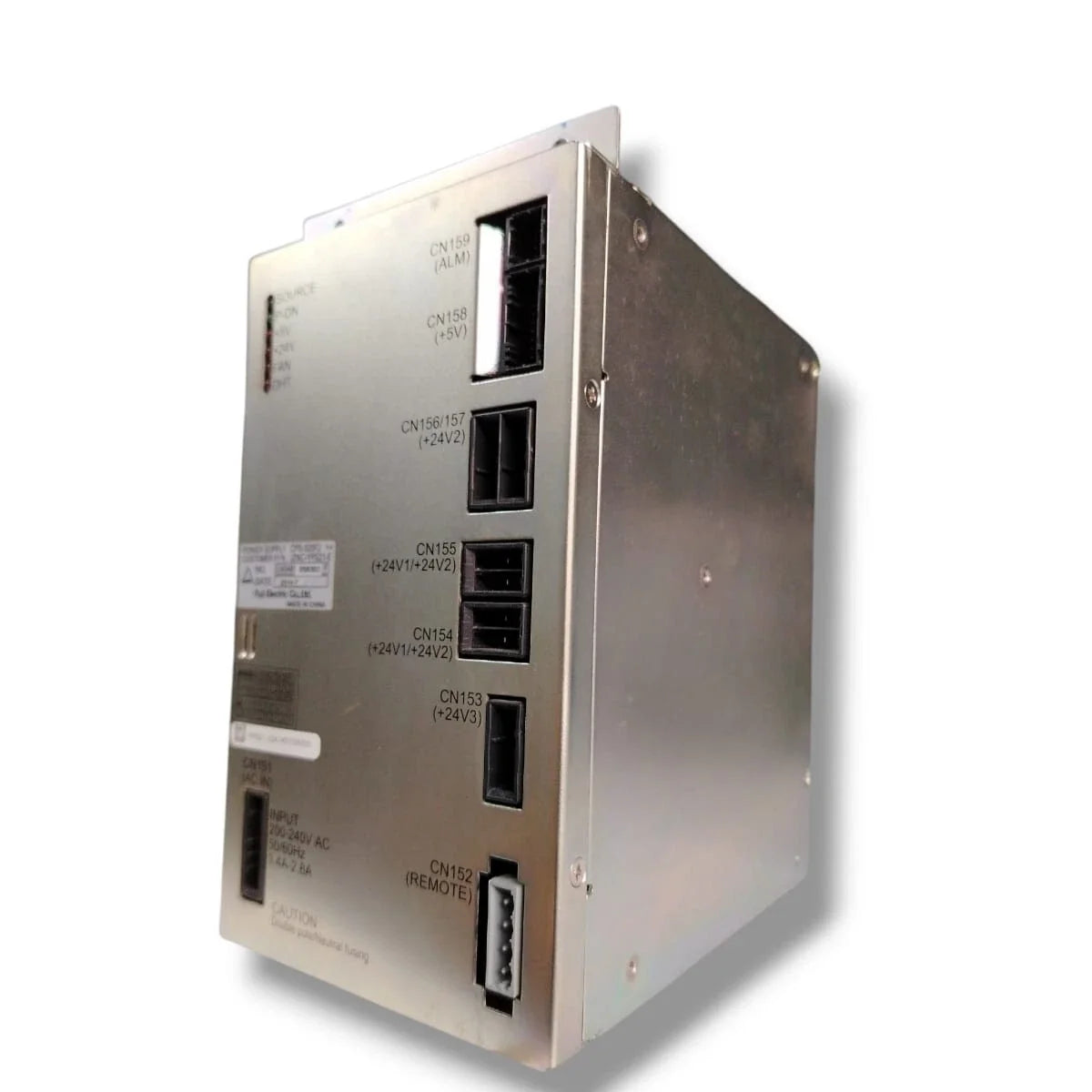

The JZNC‑YPS21‑E is a dedicated power supply and CPU unit for Yaskawa’s DX200 robot controller, converting 200–240 V AC into required 5 V and 24 V DC rails. Designed for industrial robotics, it ensures stable and reliable operation under demanding conditions. Though discontinued by Yaskawa, it remains available through aftermarket and surplus channels.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
|
| Part Number |
JZNC-YPS21-E |
| Subcategory |
Power Supply |
| Function |
Power supply and CPU board for DX200 robot controller
|
| Input Voltage |
200–240 V AC
|
| Output Voltage |
5 V DC and 24 V DC
|
| Dimensions (approx.) |
9.4 in × 11.8 in × 1.8 in (packaged)
|
| Operating Temp. Range |
0°C to 50°C
|
| Mounting |
Integrated into DX200 backplane
|
| Status |
Discontinued by manufacturer
|
| Country of Origin |
Japan |
| Output Type |
Regulated dual DC for control systems
|
| Compatibility |
Yaskawa DX200 controller only
|
| Certifications |
Designed to OEM DX200 standards, IP20 internal rating
|
| Weight |
5.64 lbs |
Information About JZNC-YPS21-E

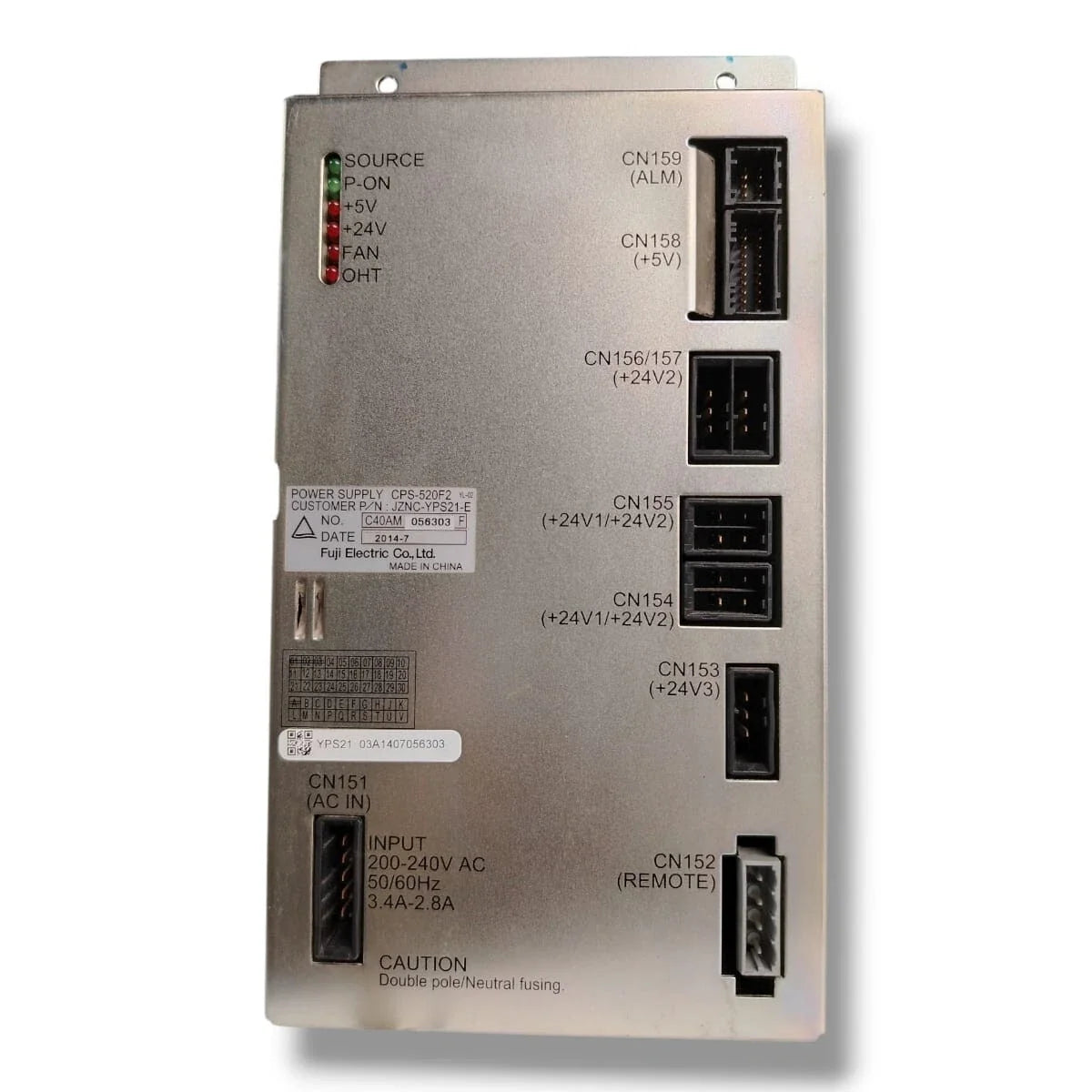

The JZNC‑YPS21‑E, also referred to as CPS‑520F2, serves as the primary power and logic module in the DX200 robot controller. It operates within a wide input voltage range (200–240 V AC) and delivers regulated 5 V and 24 V DC outputs to support control and I/O systems. Its compact, modular construction allows for easy installation and maintenance.
Key Features:
- DX200 System Compatibility: Designed specifically for integration into Yaskawa DX200 robot controllers.
- Wide Input Range: Accepts 200–240 V AC, suitable for global power environments (50/60 Hz).
- Dual DC Outputs: Supplies both 5 V and 24 V DC, essential for controller logic and auxiliary devices.
- Compact Modular Design: Weighs approximately 5.64 lb for seamless installation in standard controller enclosures.
- Industrial Reliability: Supports continuous operation in robotics environments.
- Aftermarket Availability: Although discontinued by the manufacturer, units are still widely available.
- Replaceable Module: Designed for quick servicing and hot-swap replacement.
- Standard Mounting: Installs easily in DX200 backplane with minimal wiring.
- Proven Performance: Used in thousands of Yaskawa robotic deployments worldwide.
The JZNC‑YPS21‑E delivers the dependable power and control logic required for stable operation of DX200 robotic platforms.
