Description

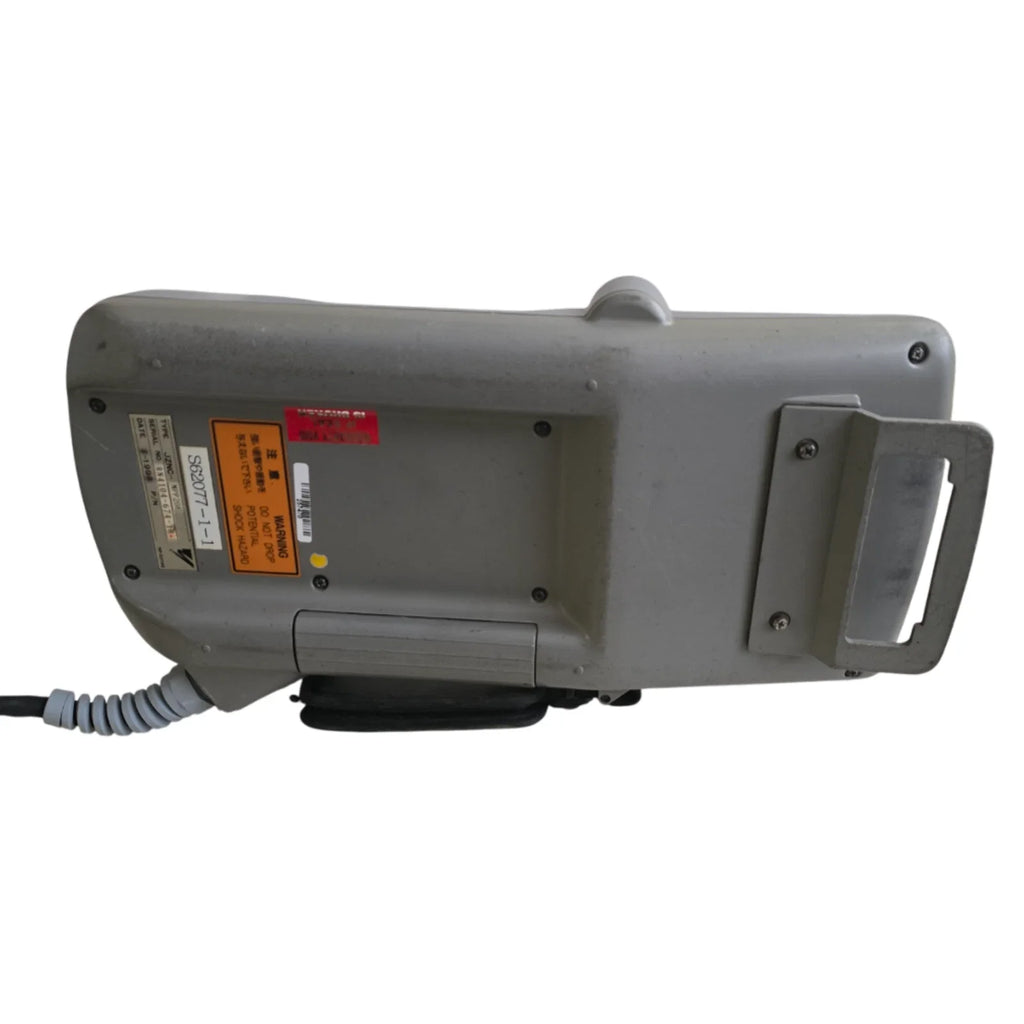

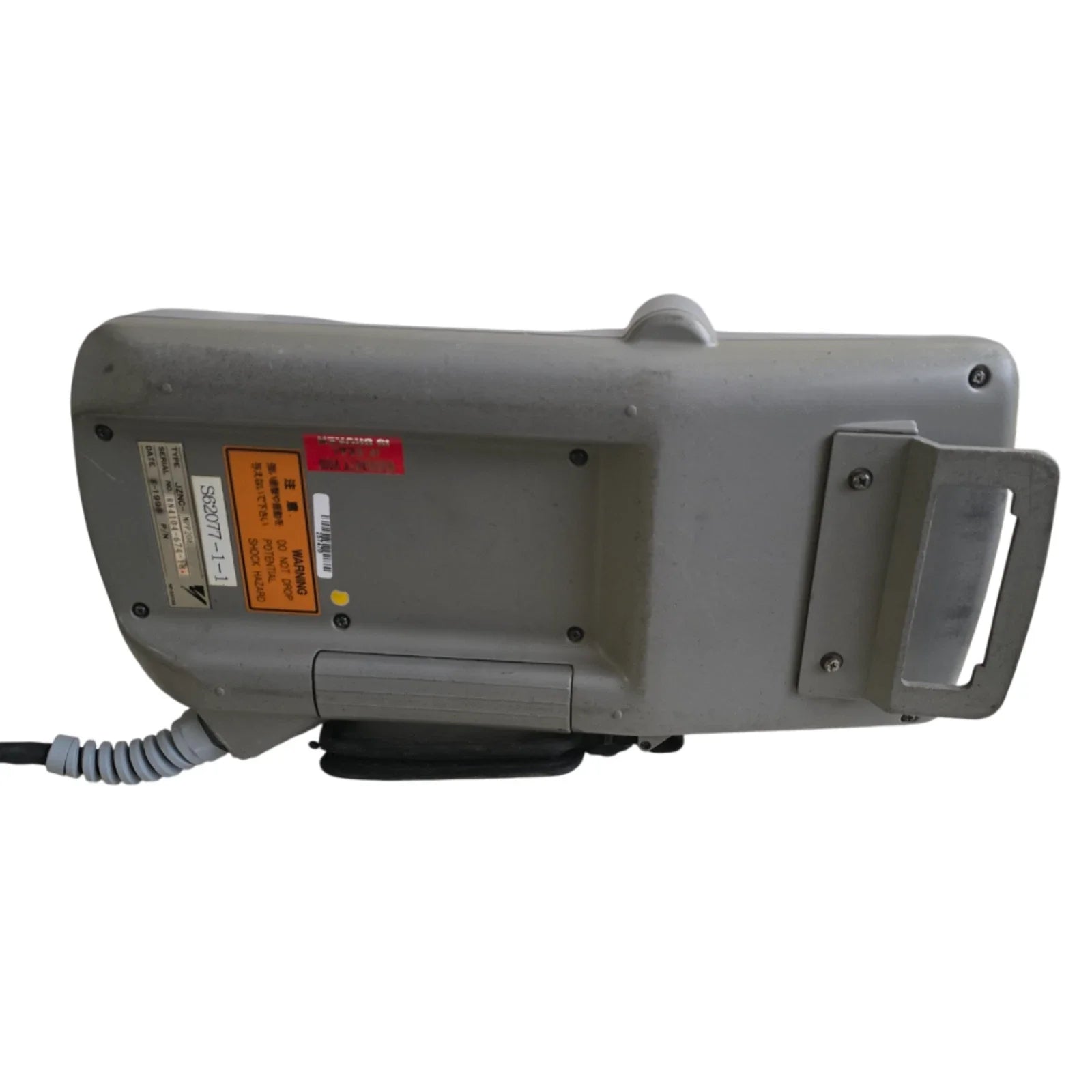

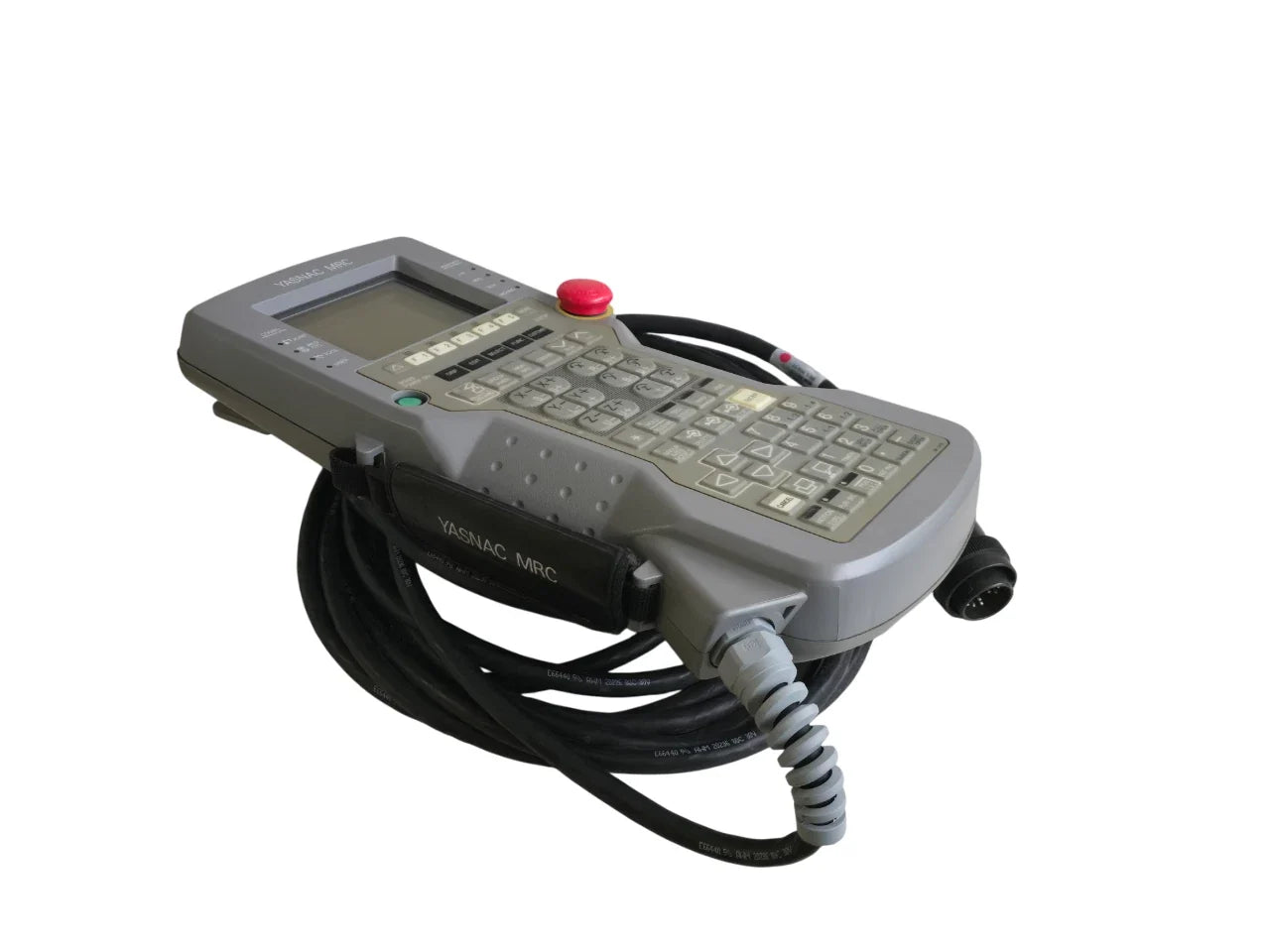

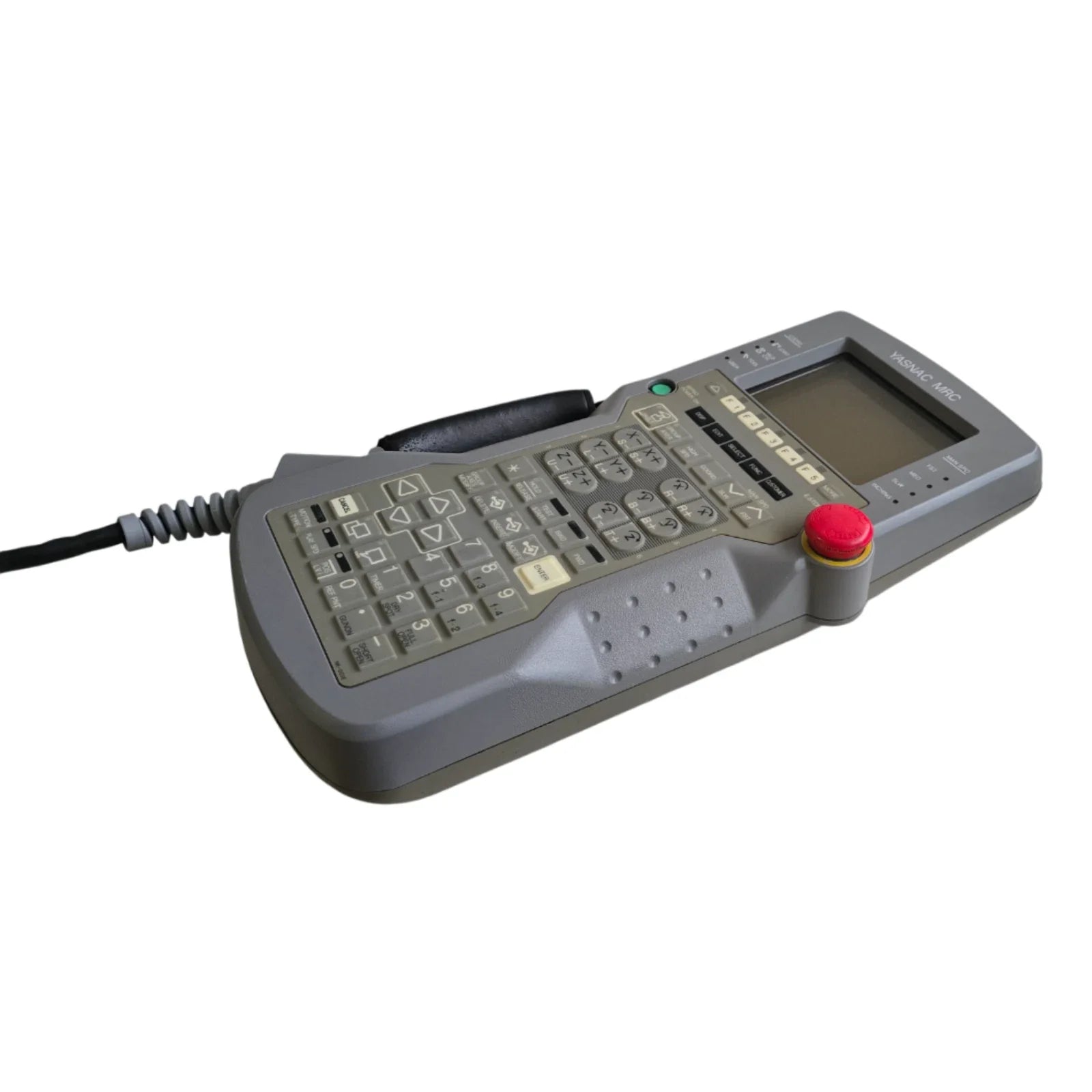

The JZNC-MPP20E is a handheld teach pendant designed for precise control of Motoman MRC series robots. It features an emergency stop (E‑STOP) and ergonomic layout to support safe and efficient programming.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
|
| Part Number |
JZNC-MPP20E |
| Subcategory |
Teach Pendant |
| System Compatibility |
Motoman MRC / XRC controllers
|
| Power Supply |
5 VDC
|
| Safety Features |
E-STOP button, dead-man switch
|
| User Interface |
Buttons, directional control (joystick or dial)
|
| Display |
Integrated screen for programming and feedback
|
| Axis Control Capability |
Supports multi-axis robot teaching
|
| Construction |
Industrial-grade handheld housing
|
| Dimensions (Approximate) |
36 × 20 × 5 cm
|
| Operating Temperature |
–20 °C to +70 °C (typical range)
|
| Weight |
5.99 lbs (approximately 2.72 kg)
|
Information About JZNC-MPP20E
The JZNC-MPP20E is a discontinued electronic teach pendant from Yaskawa’s Motoman product line, primarily used with MRC and XRC robot controllers. It operates on a 5 VDC supply and integrates safety features such as an E-STOP and dead-man switch to ensure secure manual control during operation. Its durable construction supports intensive industrial use, while its interface allows real-time axis manipulation, program teaching, and job adjustments. Though no longer in production, the pendant is available as a refurbished component through industrial automation resellers and is widely supported in legacy robot installations.
Key Features:
- Controller Compatibility: Designed specifically for Motoman MRC and XRC robotic systems.
- Low Voltage Operation: Functions on a 5 VDC power input for safe handheld use.
- Integrated Safety Features: Includes emergency stop and dead-man switch for operator protection.
- Axis Control: Supports multi-axis robotic teaching, including up to 12 axes in advanced models.
- User Interface: Equipped with buttons, a selector wheel or joystick, and clear layout for intuitive programming.
- Durable Construction: Built with industrial-grade housing to withstand drops, dust, and heavy handling.
- Display Screen: Features a compact graphical screen for job status, variables, and diagnostics.
- Ergonomic Design: Lightweight and contoured for easy single-hand operation during robot setup.
- Refurbishment Availability: Commonly remanufactured and offered with functional warranties.
- Legacy Support: Remains in active use in facilities relying on MRC-controlled robot systems.
The JZNC-MPP20E delivers reliable, precise manual control for industrial robot teaching and programming.
