Description

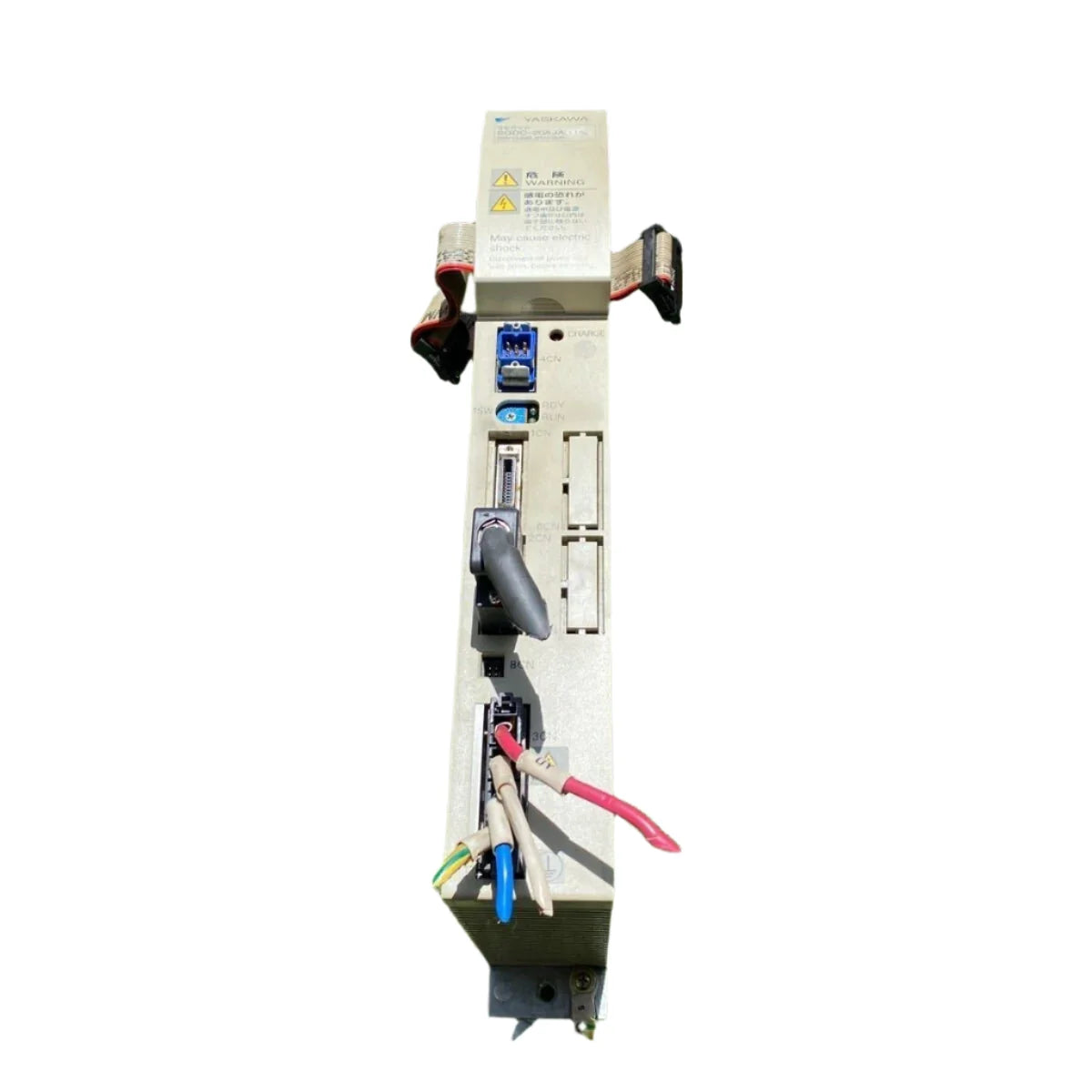

The SGDC-20AJAY16 is a servo drive unit engineered for precise motor control in industrial automation systems. Operating within the 200 V class, it supports three-phase input and delivers 2.0 kW of power for high-performance motion applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Yaskawa |
| Category |
|
| Part Number |
SGDC-20AJAY16 |
| Subcategory |
Servo Drive/Servo Control |
| Series |
DrivePack |
| Output Power |
2.0 kW (approximately 2.68 HP)
|
| Input Voltage |
280–330 V AC (three-phase)
|
| Output Voltage |
0–230 V AC
|
| Input Current |
10.4 A
|
| Output Current |
19 A
|
| Voltage Class |
200 V Class
|
| Frequency Range |
50/60 Hz
|
| Configuration |
Three-phase
|
| Mounting Type |
Panel mount
|
| Weight |
10.00 lbs (approximately 4.54 kg)
|
Information About SGDC-20AJAY16
The SGDC-20AJAY16 is a discontinued servo drive from Yaskawa’s DrivePack series, built to operate in 200 V class systems with a 2.0 kW output. It features an input current capacity of 10.4 amps and can handle output currents of up to 19 amps, making it suitable for demanding three-phase motion control tasks. The unit supports output voltage ranging from 0 to 230 V, ensuring flexibility in a variety of servo motor configurations. Despite its discontinued status, the drive remains popular in retrofitting, repair, and maintenance environments due to its reliable power delivery and industrial-grade performance.
Key Features:
- Power Output: Rated at 2.0 kW (approximately 2.68 HP) for industrial motion systems.
- Voltage Class: Operates within the 200 V class for compatibility with standard servo configurations.
- Input Voltage Range: Accepts between 280–330 V AC, three-phase.
- Input Current Capacity: Handles 10.4 amps on the input side.
- Output Current: Provides up to 19 amps, delivering strong torque for servo motors.
- Output Voltage Range: Supports adjustable output from 0 to 230 V.
- Discontinued Status: No longer manufactured but available through surplus and refurbishment channels.
- Compact DrivePack Format: Designed for modularity and integration with Yaskawa motion systems.
- Robust Design: Industrial construction for dependable operation in high-duty applications.
- Legacy Compatibility: Suitable for upgrades and replacements in older servo systems.
The SGDC-20AJAY16 delivers the power and precision needed for high-performance servo control in legacy automation systems.
