Description

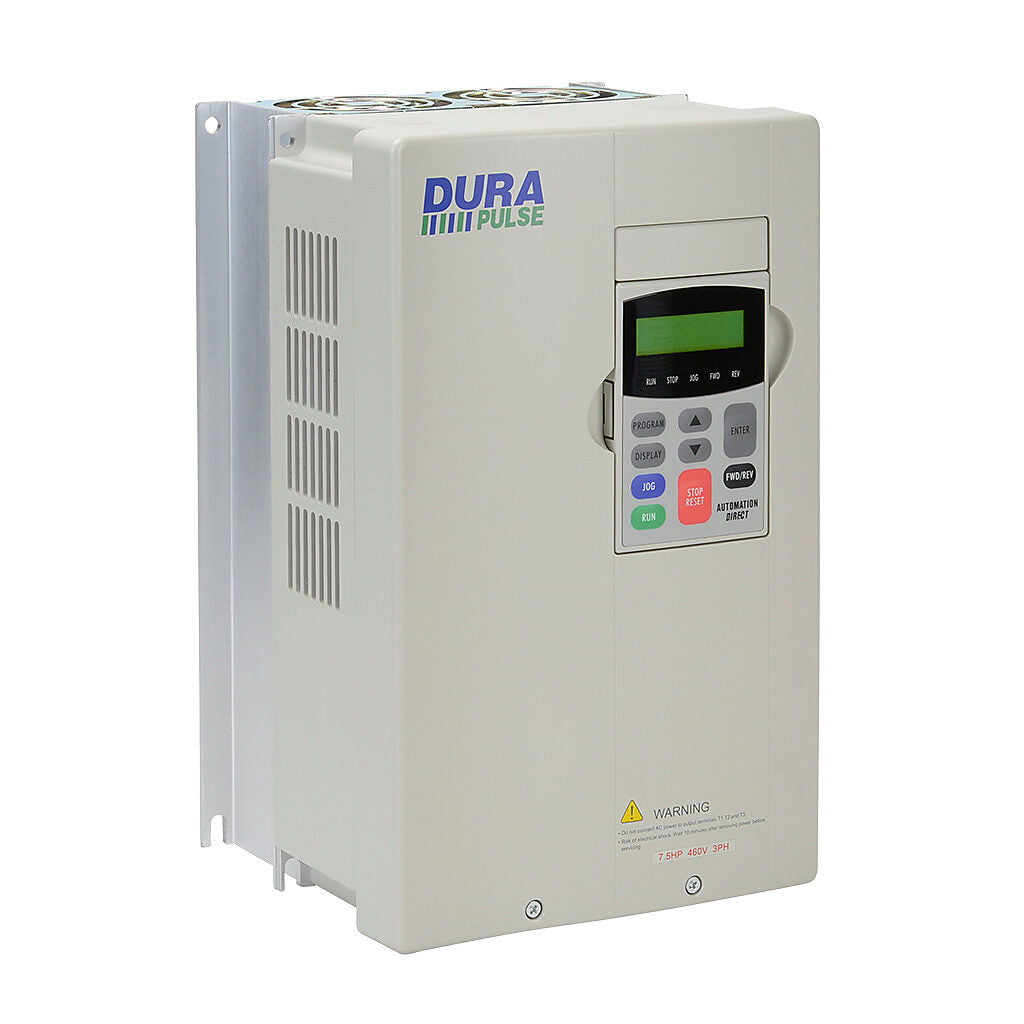

The Automation Direct GS3-47P5 is a DURApulse GS3 Series AC general purpose drive rated for 7.5 HP operation at 460 VAC. It supports three-phase input power and provides selectable Sensorless Vector Control (SVC) or V/Hz control modes. This drive is designed for industrial motor speed control in demanding automation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Drives |
| Part Number |
GS3-47P5 |
| Subcategory |
Drive |
| Series |
DURApulse GS3 |
| Motor Rating |
7.5 HP |
| Input Voltage |
460 VAC |
| Input Phase |
Three-Phase |
| Control Modes |
Sensorless Vector Control (SVC), V/Hz |
| Communication |
RS-485 (Modbus) |
| Dynamic Braking |
Integrated |
| SCCR Rating |
5 kA |
| Frame Type |
C Frame |
| Enclosure |
Enclosed |
| Weight |
8.00 lbs |
Information About GS3-47P5
The GS3-47P5 is part of the DURApulse GS3 family of variable frequency drives engineered for high-performance motor applications. It operates on 460 VAC three-phase input and delivers adjustable three-phase output for induction motors. The drive features RS-485 communication with Modbus protocol support for integration into PLC and control networks. Integrated dynamic braking functionality enhances deceleration performance, while the C-frame enclosure supports panel-mounted installation.
Key Features:
-
7.5 HP Motor Rating: Designed for controlling motors up to 7-1/2 horsepower.
-
460 VAC Three-Phase Input: Suitable for industrial power systems.
-
Dual Control Modes: Supports Sensorless Vector Control (SVC) and V/Hz operation.
-
Integrated Dynamic Braking: Improves controlled motor stopping capability.
-
RS-485 Communication: Provides Modbus connectivity for system integration.
-
5 kA SCCR Rating: Meets industrial short-circuit protection requirements.
-
Enclosed C-Frame Design: Supports secure panel installation.
The GS3-47P5 delivers the reliability and precision required for variable speed motor control in industrial automation systems.
