Description

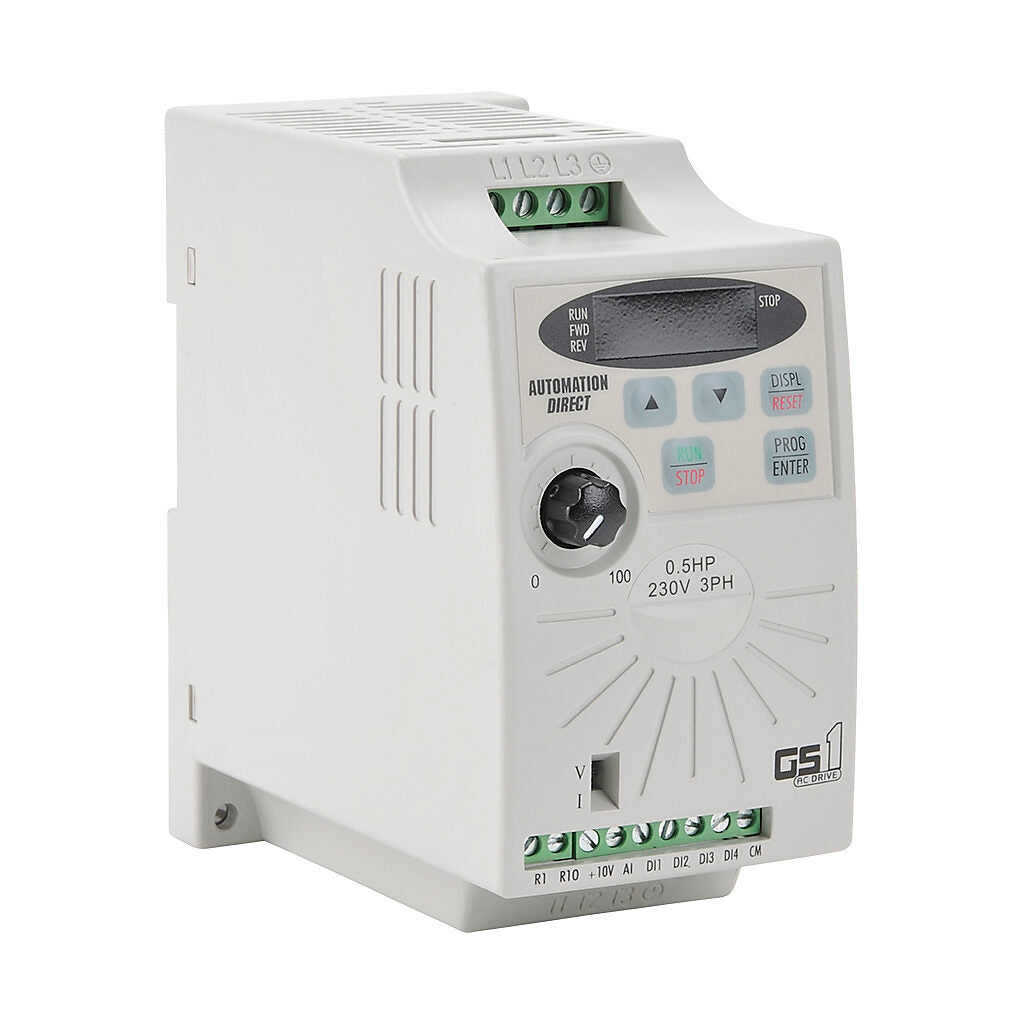

The Automation Direct GS1-20P5 is a GS1 series AC micro drive rated for 1/2 horsepower operation with 200–240 VAC input. It supports both single-phase and three-phase input power and delivers three-phase output using V/Hz control mode. This enclosed A-frame drive provides RS-485 Modbus communication for integration into compact industrial motor control systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Drives |
| Part Number |
GS1-20P5 |
| Subcategory |
AC Variable Frequency Drives |
| Series |
GS1 |
| Drive Type |
AC Micro Drive |
| Rated Power |
1/2 HP |
| Input Voltage |
200–240 VAC |
| Input Frequency |
50/60 Hz |
| Input Phase |
Single-Phase or Three-Phase |
| Output Phase |
Three-Phase |
| Control Mode |
V/Hz |
| Communication |
RS-485 (Modbus) |
| Short Circuit Current Rating (SCCR) |
5kA |
| Enclosure Type |
Enclosed |
| Frame Size |
A Frame |
| Application |
Industrial Motor Speed Control |
| Weight |
2.9 lb |
Information About GS1-20P5
The GS1-20P5 is part of the Automation Direct GS1 family of micro variable frequency drives designed for general-purpose motor speed control. It operates on 200–240 VAC at 50/60 Hz and accommodates either single-phase or three-phase input configurations for flexible installation. The drive produces a three-phase output voltage proportional to the input supply while regulating motor speed through V/Hz control methodology. With RS-485 communication supporting Modbus protocol and a 5kA SCCR rating, it is suitable for panel-mounted applications in light industrial automation environments.
Key Features:
- 1/2 HP Output Rating: Designed for fractional horsepower motor applications.
- 200–240 VAC Input: Compatible with standard industrial voltage ranges at 50/60 Hz.
- Single or Three-Phase Input: Offers flexible power supply configuration.
- Three-Phase Motor Output: Provides controlled three-phase output for AC motors.
- V/Hz Control Mode: Ensures stable and economical motor speed regulation.
- RS-485 Communication: Enables serial connectivity for configuration and monitoring.
- Modbus Protocol Support: Integrates with PLC and automation networks.
- 5kA SCCR Rating: Suitable for compliant installation in industrial control panels.
The GS1-20P5 delivers the reliability and precision required for compact AC motor speed control in light industrial and machine automation systems.
