Overview

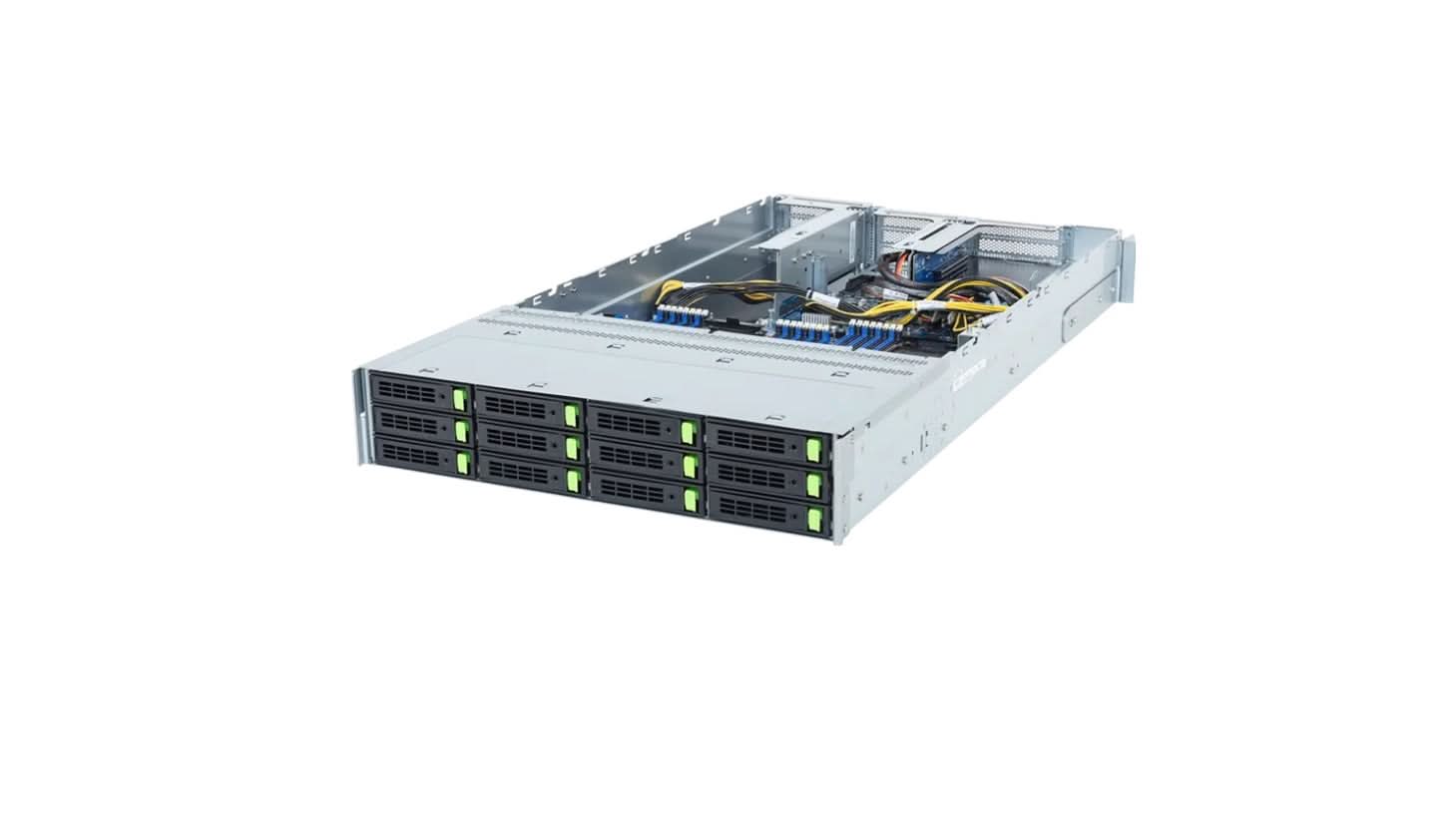

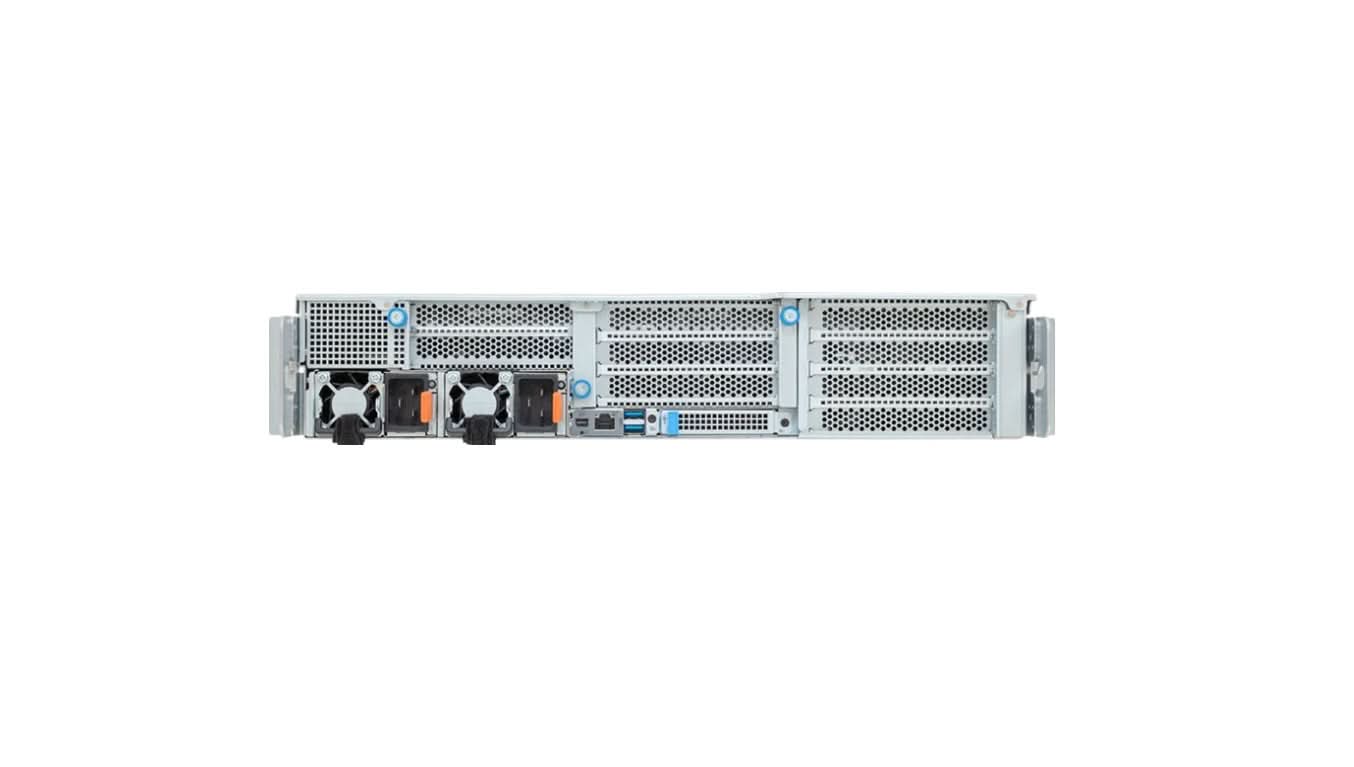

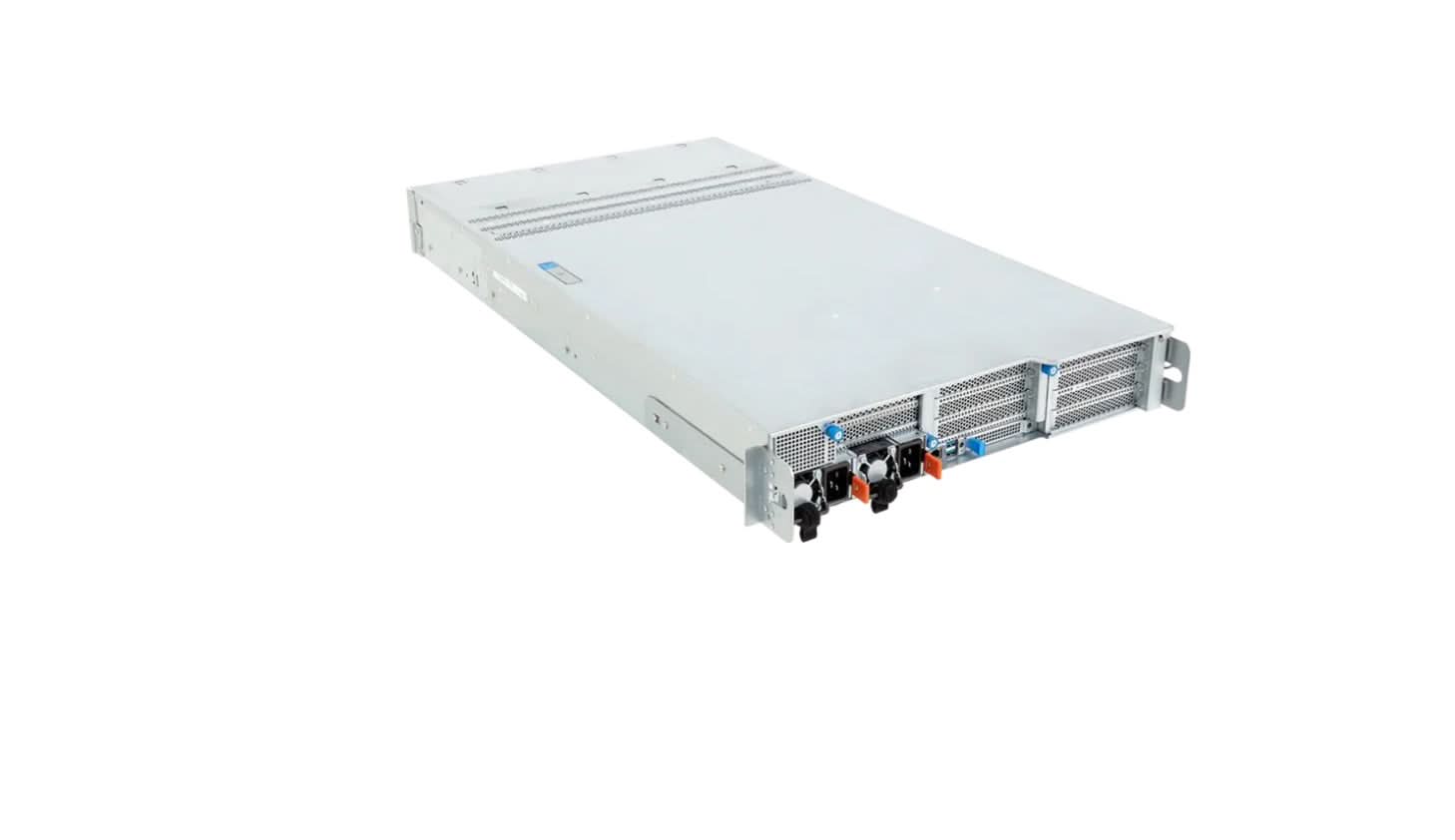

Gigabyte R284-SF0-IAL1 Intel Xeon DDR5 2U Rackmount/GPU Server

Specifications

Model Number:  R284-SF0-IAL1

Brand:  Gigabyte

Alt Part Number(s):  R284-SF0-IAL1

Product Type:  GPU Server

Technical Description

Brand:  Gigabyte

Model Number:  R284-SF0-IAL1

Processor Type:Intel Xeon 6700, 6500-Series Processors

Processor Power:  Up to 350W

Processor Socket:  2 x LGA 4710 Socket E2

Chipset Type: System on Chip

Motherboard:MSF4-GP0

Number of Channels:  8-Channel

Storage Front Hot-Swap Bays:  12 × 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 bays

Internal M.2 Slot:  1×M.2 (2280/22110), PCIe Gen5 x4, from CPU_0

Graphics Controller:  Aspeed AST2600

Memory Supported:  2TB

Memory Technology:  DDR5

Memory Supported:RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s

Memory Slots:  32 x DIMM

Expansion Slots:  16

Power Supply:  2 x 2700W 80 PLUS

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor: 2U Rackmount/GPU Server

*
