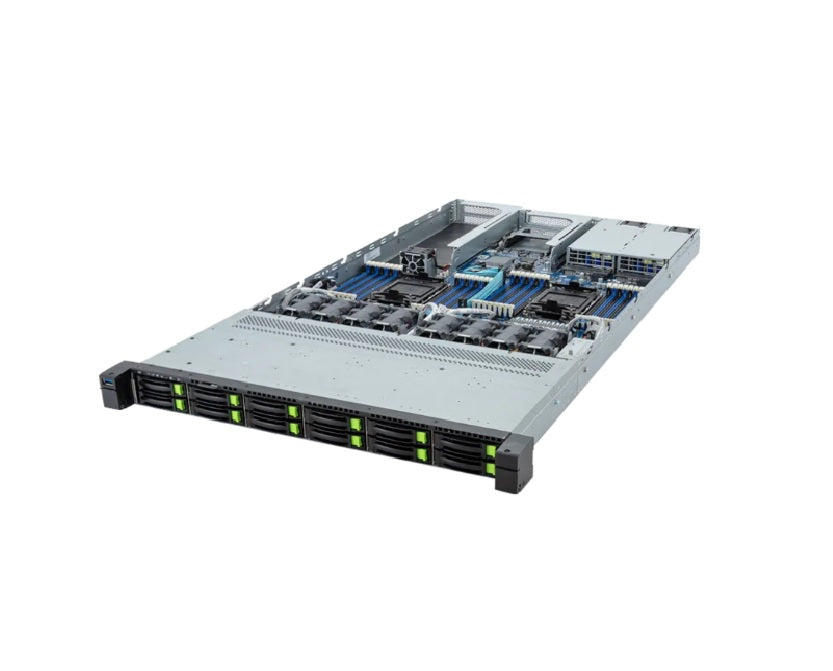

The Gigabyte R183-SF1-AAJ1 is a high-performance 1U dual-processor rack server designed for intensive workloads like AI training, inference, and High-Performance Computing (HPC). It is built on a PCIe 5.0 platform to support rapid data movement for GPUs and NVMe storage.
Specifications
Model Number: R183-SF1-AAJ1
Brand: Gigabyte
Alt Part Number(s): R183-SF1-AAJ1
Product Type: Server
Technical Description
Brand: Gigabyte
Model Number: R183-SF1-AAJ1
Processor Type: Dual 5th/4th Gen Intel Xeon Scalable Processors
Processor Core: 172-Core/ 344-Thread
Processor Power: Up to 350W per CPU
Processor Socket: 2 × LGA 4677 (Socket E)
Motherboard: MSF3-GP0
Chipset: Intel C741
Graphics Controller: ASPEED AST2600
Networking: 1 × 1GbE management port
RAID Levels: Intel SATA RAID 0/1/10/5
Number of Drive Bays: 12 × 2.5″ hot-swap NVMe / SATA / SAS-4
Expansion Slots: 3 × FHFL x16, 1 × OCP 3.0 Gen5 x16
Memory Supported: Up to 8TB
Memory Technology: DDR5 RDIMM
Memory Slots: 32 x DIMM slots
Memory Channels: 8-Channels
Cooling: 9 Fans
Power Supply: 1+1 redundant 2000W (80+ Titanium)
Form Factor: 1U Rackmount
