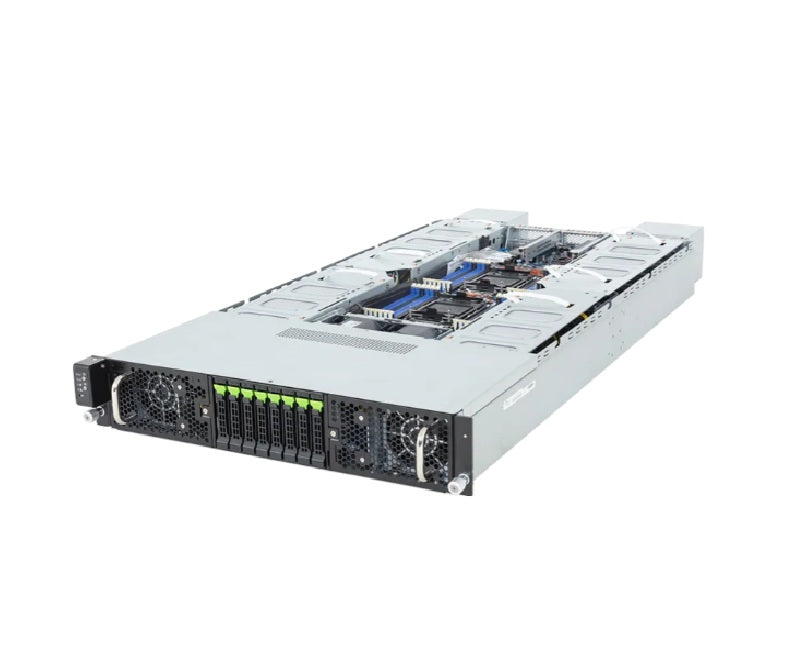

The Gigabyte G294-S42-AAP2 is a 2U dual-socket GPU server engineered for high-density compute tasks such as AI training, inference, and high-performance computing (HPC). It is part of the G-Series lineup and is specifically optimized for the latest Intel Xeon 6 processors and high-end PCIe GPUs.
Specifications
Model Number: G294-S42-AAP2
Brand: Gigabyte
Alt Part Number(s): G294-S42-AAP2
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: G294-S42-AAP2
Series: G294
Processor Type: Dual Intel Xeon 6700/6500-Series Processors
Processor Core: 288-Core/ 512-Thread
Processor Power: 3000W
Processor Socket: 2 x LGA 4710 Socket E2
Motherboard: MS44-G20
Chipset: System on Chip
Graphics Controller: ASPEED AST2600
Networking: 2 × 10GbE LAN (Intel X710-AT2), 1 × management LAN (GbE)
RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60
Number of Drive Bays: 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
Expansion Slots: 10 × PCIe Gen5 x16, 8 × FHFL (Full-H, full-L), 2 × LP (Low-profile)
Memory Capacity: 512GB or 256GB Per DIMM Slot (6TB)
Memory Supported: 12TB
Memory Technology: DDR5 RDIMM
Memory Slots: 24 x DIMM slots
Memory Channels: 8-Channels
Cooling: 8 x 80x80x80mm Fan
Power Supply: Dual 3000W 80+ Titanium redundant
Form Factor: 2U Rackmount/GPU Server
