Description

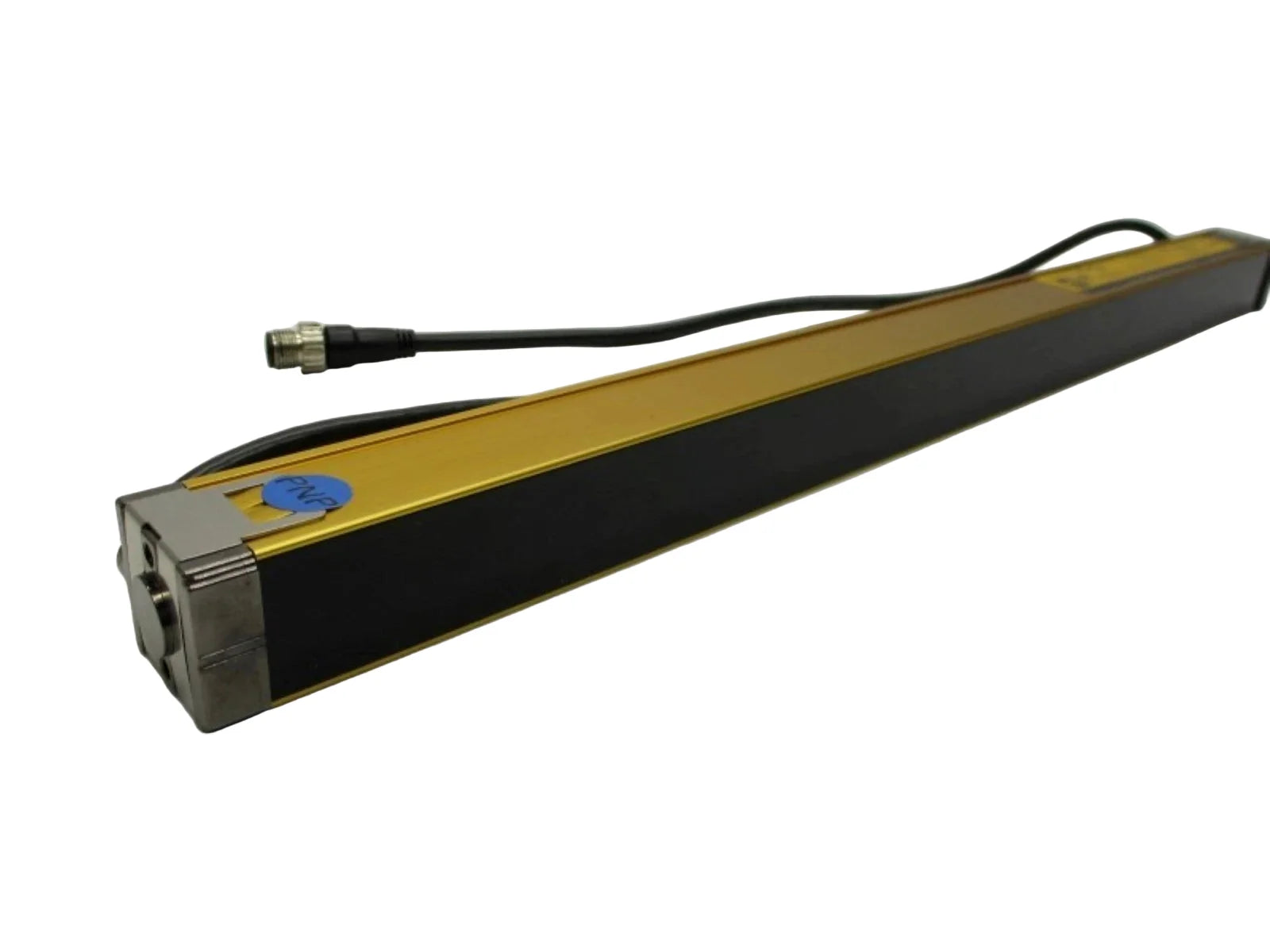

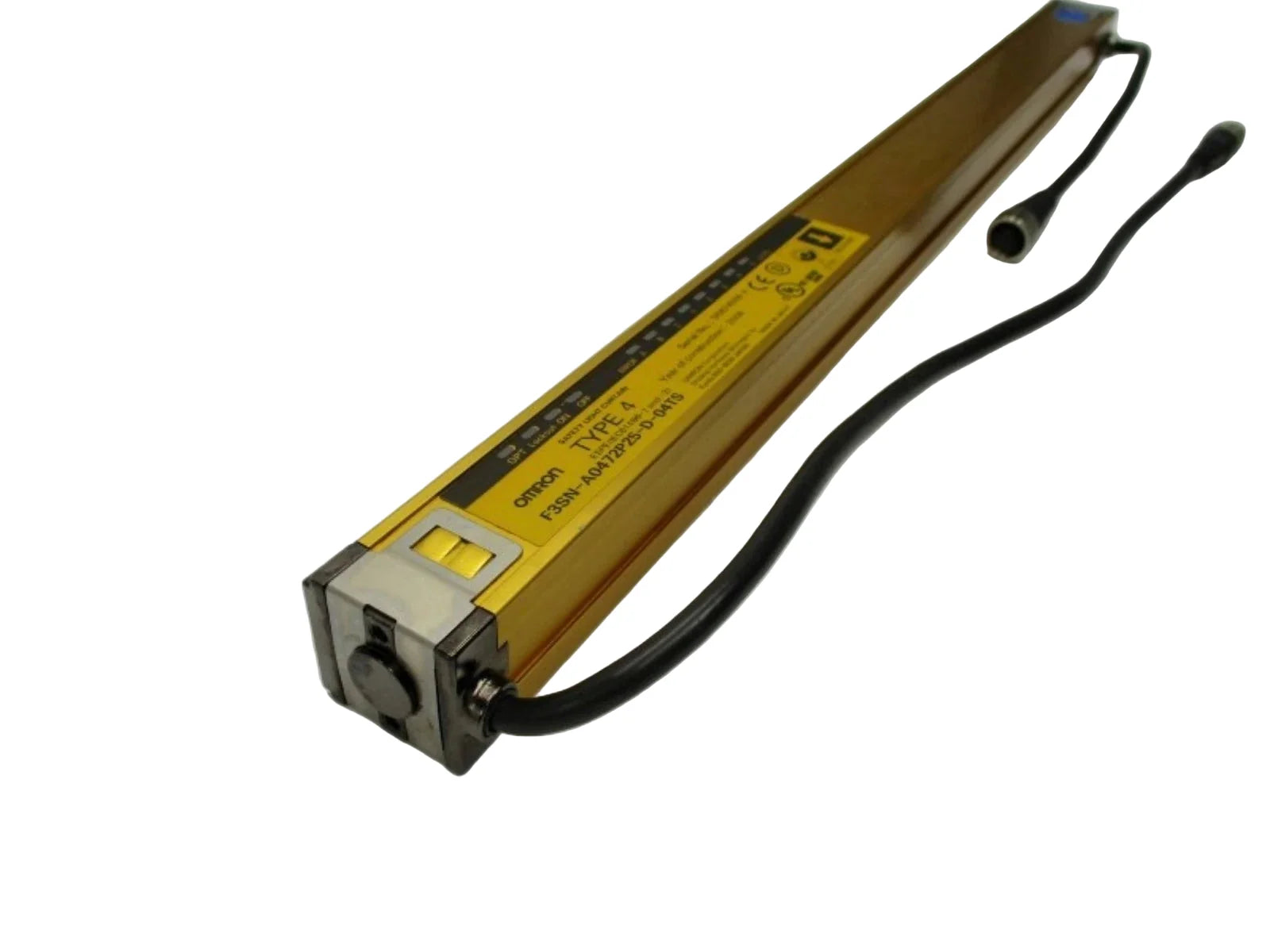

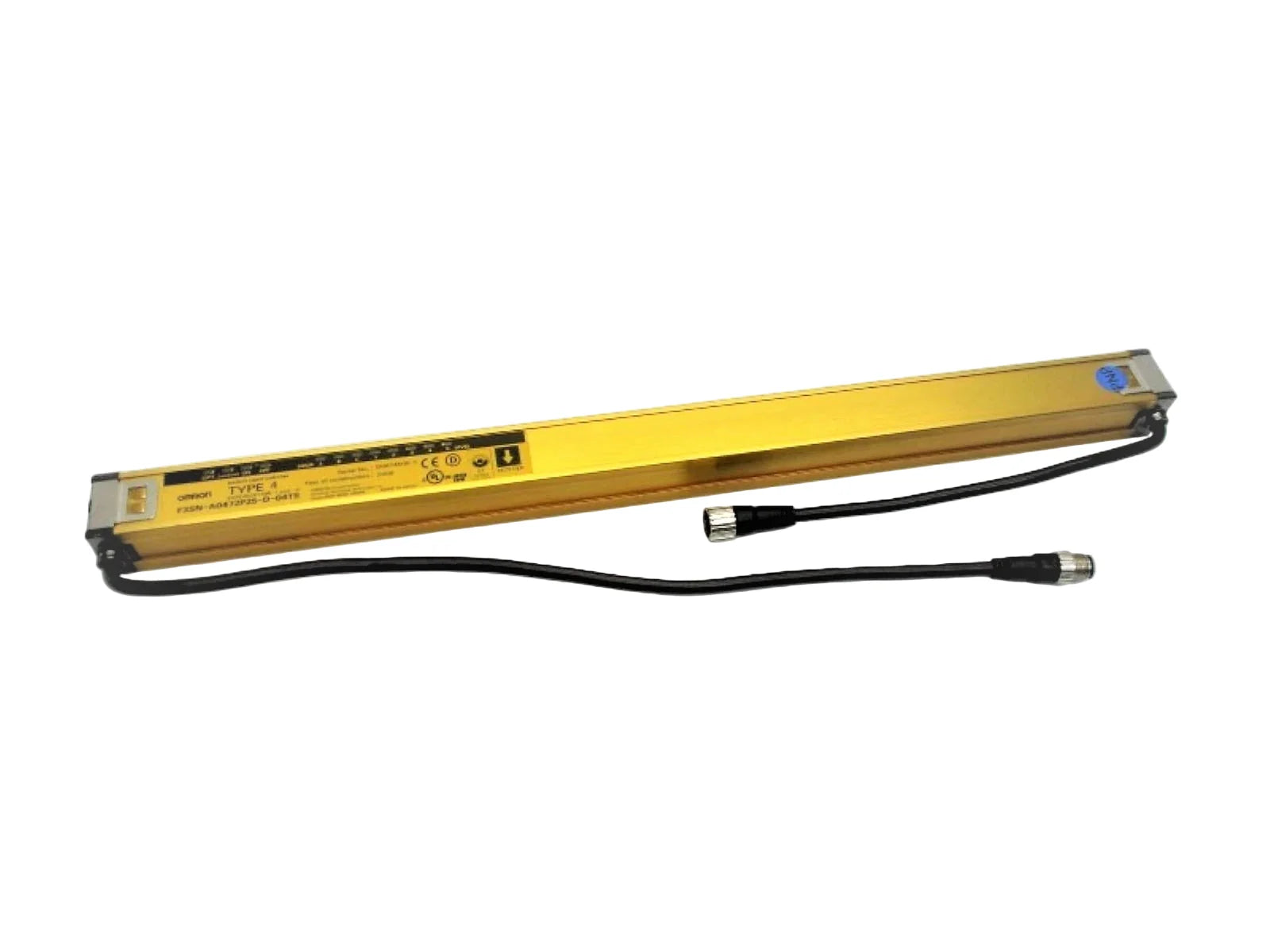

The Omron F3SN-A0472P25-D-04TS is a safety light curtain designed to provide reliable personnel and machine protection in industrial environments. Offering a 472 mm detection height and 25 mm resolution, this device ensures precise hand and finger detection with fast response times suitable for hazardous machinery guarding applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Safety Sensors |
| Part Number |
F3SN-A0472P25-D-04TS |
| Subcategory |
Safety Light Curtain |
| Series |
F3SN-A Series |
| Safety Category |
Type 4 (IEC 61496-1/2) |
| Detection Height |
472 mm |
| Detection Capability |
25 mm (hand protection) |
| Number of Beams |
20 (approx.) |
| Operating Range |
Up to 7 meters (typical) |
| Response Time |
≤ 20 ms |
| Supply Voltage |
24 VDC ±10% |
| Output Type |
PNP (safety transistor outputs) |
| Connection Type |
M12 or terminal block (4-pin/8-pin) |
| Alignment Indicators |
Built-in LED indicators |
| Protection Rating |
IP65 / IP67 |
| Housing Material |
Aluminum alloy enclosure |
| Mounting |
Vertical or horizontal with brackets |
| Operating Temperature |
0°C to +55°C |
| Standards Compliance |
CE, UL, TUV, EN 61496, EN ISO 13849-1 |
| Weight |
Approx. 1.2 kg |
Information About F3SN-A0472P25-D-04TS
The F3SN-A0472P25-D-04TS is part of Omron’s F3SN-A series, a family of advanced safety light curtains engineered for industrial safety control and compliance with international standards. This model features a Type 4 safety rating (IEC 61496-1/2), ensuring the highest level of protection for operators and automated equipment. The 25 mm resolution supports hand detection, while the 472 mm beam height covers medium-sized machine openings or access points. Its rugged aluminum housing, integrated diagnostics, and flexible mounting options make it ideal for presses, robotic work cells, and automated conveyor lines.
Key Features:
- High-Level Safety Rating: Type 4 safety light curtain compliant with IEC 61496-1/2 for Category 4 safety applications.
- Detection Capability: 25 mm resolution enables precise hand and finger protection.
- Beam Height: 472 mm sensing area suitable for mid-range guarding applications.
- Fast Response Time: Ensures quick detection and machine stop signal for operator safety.
- Robust Construction: Durable aluminum housing designed for vibration and shock resistance.
- Integrated Diagnostics: LED indicators simplify alignment, monitoring, and troubleshooting.
- Flexible Mounting: Multiple bracket options support easy installation in vertical or horizontal configurations.
- Reliable Connectivity: Includes quick-disconnect connectors and standardized terminal interfaces for efficient wiring.
The F3SN-A0472P25-D-04TS delivers the reliability and precision required for machine safety guarding and operator protection in automated industrial environments.
