Description

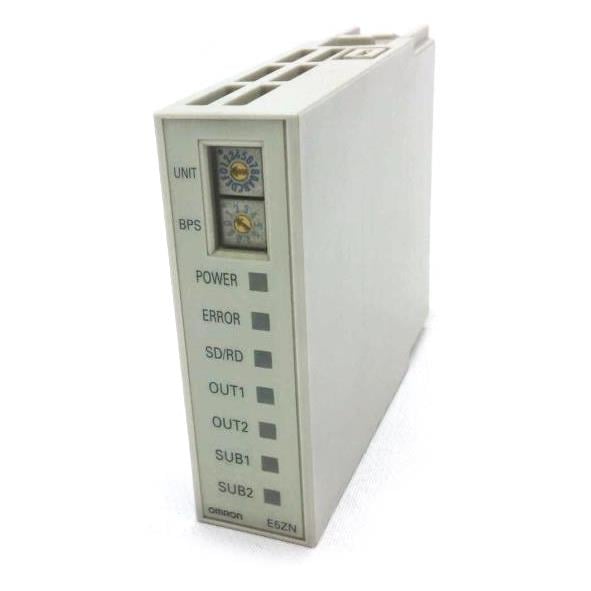

The Omron E5ZN-2TPH03P-FLK Temperature Controller is a two-loop, DIN-rail-mounted process controller designed for precision temperature regulation in industrial automation systems. Operating on 24 VDC, it accepts Pt100 RTD inputs and provides solid-state outputs for heat, cool, or heat/cool control, with built-in heater fault detection for enhanced system reliability.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation and Controls |
| Part Number |
E5ZN-2TPH03P-FLK |
| Subcategory |
Temperature Controllers |
| Series |
E5ZN |
| Type |
Temperature Controller (RTD) |
| Input Type |
Pt100 RTD |
| Input Range |
-200°C to +850°C |
| Number of Control Loops |
2 |
| Control Methods |
On/Off, PID (Proportional-Integral-Derivative) |
| Output Type |
Solid State (3 outputs) |
| Communication Interface |
RS-485 (CompoWay/F protocol) |
| Heater Fault Detection |
Yes |
| Voltage Supply |
24 VDC |
| Mounting Type |
DIN rail, socketable |
| Termination Style |
Plug-in, 24-pin connector |
| Module Width |
22.5 mm |
| Ingress Protection |
IP00 |
| Operating Temperature |
-10°C to +55°C |
| Cooling Type |
Natural convection |
| Expandable System |
Up to 32 modules in series |
| Display Type |
LED indicators (status and alarm) |
| Enclosure Material |
Industrial-grade thermoplastic |
| Certifications |
CE, RoHS, REACH Compliant |
| Application |
Industrial process temperature control |
| Weight |
0.198 lb (89.8 g) |
| Country of Origin |
Japan |
Information About E5ZN-2TPH03P-FLK
The E5ZN-2TPH03P-FLK is part of Omron’s E5ZN modular temperature controller series, engineered for compact, high-density multi-loop temperature management. Each unit supports two independent control loops and can be networked with up to 32 linked modules to control multiple zones simultaneously. Using RS-485 CompoWay/F communication, it enables easy configuration, data exchange, and integration into PLC or SCADA systems. The unit’s PID and On/Off control modes provide accurate and stable temperature management across a wide input range from -200°C to +850°C, while solid-state outputs ensure fast, reliable actuation in demanding process applications.
Key Features:
- Dual Control Loops: Manages two independent temperature zones in a single compact module.
- Wide Input Range: Accepts Pt100 RTD inputs from -200°C to +850°C for versatile applications.
- Solid-State Outputs: Three outputs for heat, cool, or alarm control with fast switching capability.
- Advanced Control Methods: Supports On/Off and Proportional (PID) modes for precise process regulation.
- Heater Burnout Detection: Monitors heater integrity to prevent process interruptions and faults.
- Modular Expandability: Up to 32 units can be connected for multi-loop control on a single DIN rail.
- RS-485 Communication: CompoWay/F protocol allows easy integration with PLCs and monitoring systems.
- Compact Form Factor: 22.5 mm-wide housing minimizes control panel space usage.
The E5ZN-2TPH03P-FLK delivers the reliability and precision required for industrial heating, cooling, and process temperature control applications.
