Description

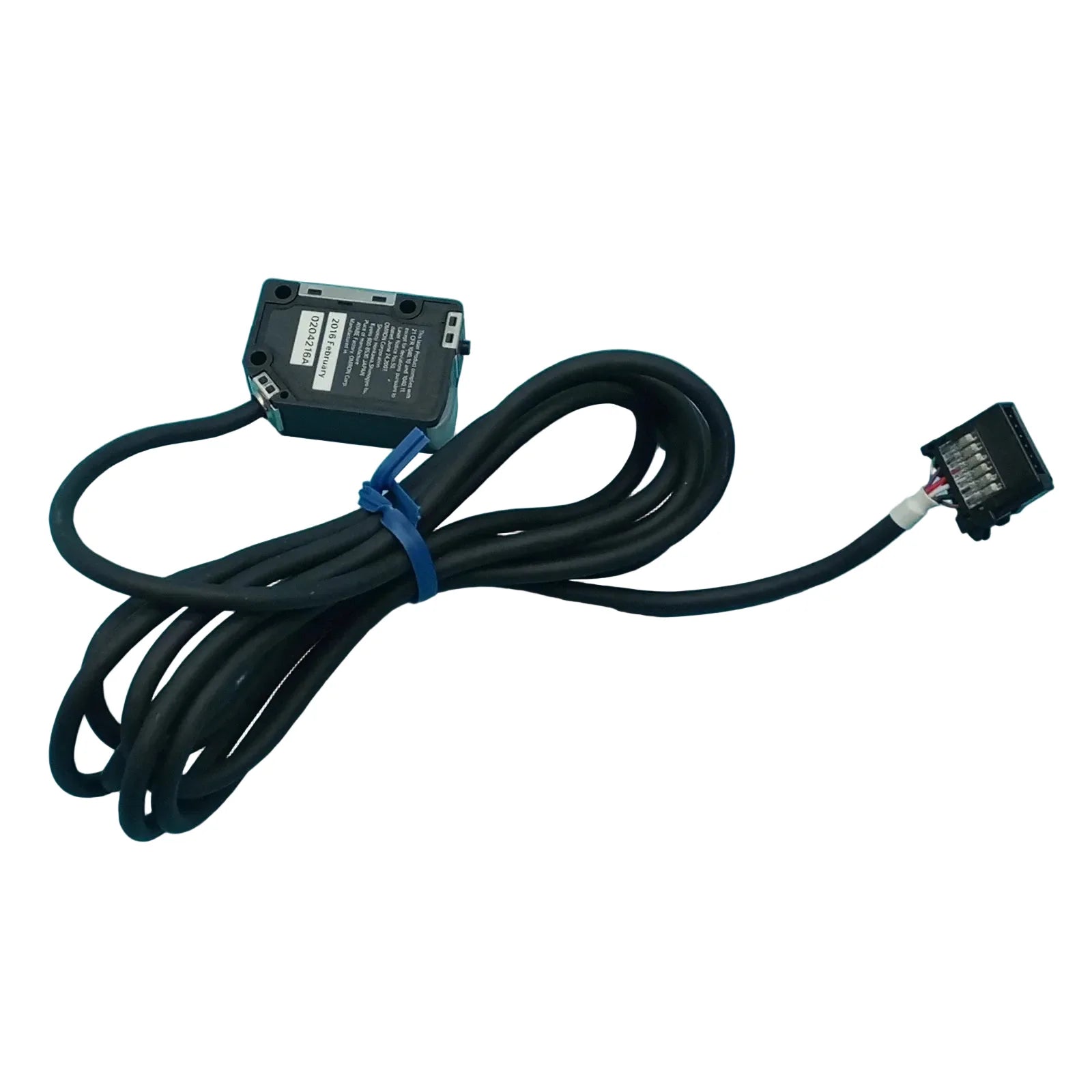

The Omron E3NC-SH100 is a smart laser sensor head designed for high-precision distance-setting detection in industrial automation applications. It operates with a red semiconductor laser to detect targets accurately within a defined sensing range. This sensor head is used in combination with compatible E3NC amplifier units for advanced sensing performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Industrial Automation |
| Part Number |
E3NC-SH100 |
| Subcategory |
Laser Sensors |
| Product Type |
Smart laser sensor head |
| Sensor Shape |
Square type |
| Sensing Method |
Distance-setting |
| Sensing Distance |
35 to 100 mm |
| Spot Size |
0.5 mm diameter at 100 mm |
| Light Source |
Red semiconductor laser diode (660 nm) |
| Laser Classification |
Class 1 (IEC, EN, FDA, JIS) |
| Degree of Protection |
IP67 |
| Connection Method |
Pre-wired connector, 2 m cable |
| Operating Temperature |
-10°C to 55°C |
| Storage Temperature |
-25°C to 70°C |
| Operating Humidity |
35% to 85% (non-condensing) |
| Housing Material |
PBT (case), PMMA (lens), PVC (cable) |
| Compatible Amplifiers |
E3NC-SA series |
| Weight |
Approx. 0.17 lb (75 g) |
Information About E3NC-SH100
The E3NC-SH100 is part of Omron’s E3NC smart laser sensor series, engineered for precise object detection based on distance rather than simple presence. It features a compact square-type housing and a finely focused laser spot to support accurate detection of small targets. The sensor head is designed for use with a range of E3NC amplifier units, enabling flexible system configuration. It is commonly applied in assembly, inspection, and positioning systems where consistent and repeatable sensing is critical.
Key Features:
- Distance-Setting Laser Sensing: Detects objects based on precise distance thresholds rather than reflectivity.
- Compact Square Sensor Head: Allows easy integration into space-constrained machinery.
- Fine Laser Spot Size: 0.5 mm spot diameter at 100 mm for high detection accuracy.
- Class 1 Laser Safety: Complies with IEC, EN, FDA, and JIS Class 1 laser standards.
- Wide Environmental Tolerance: Rated for industrial temperature, humidity, shock, and vibration conditions.
- High Protection Rating: IP67-rated housing for resistance to dust and water ingress.
- Amplifier Compatibility: Designed for use with multiple Omron E3NC amplifier units.
The E3NC-SH100 delivers the reliability and precision required for accurate distance-based detection in advanced industrial automation systems.
