Description

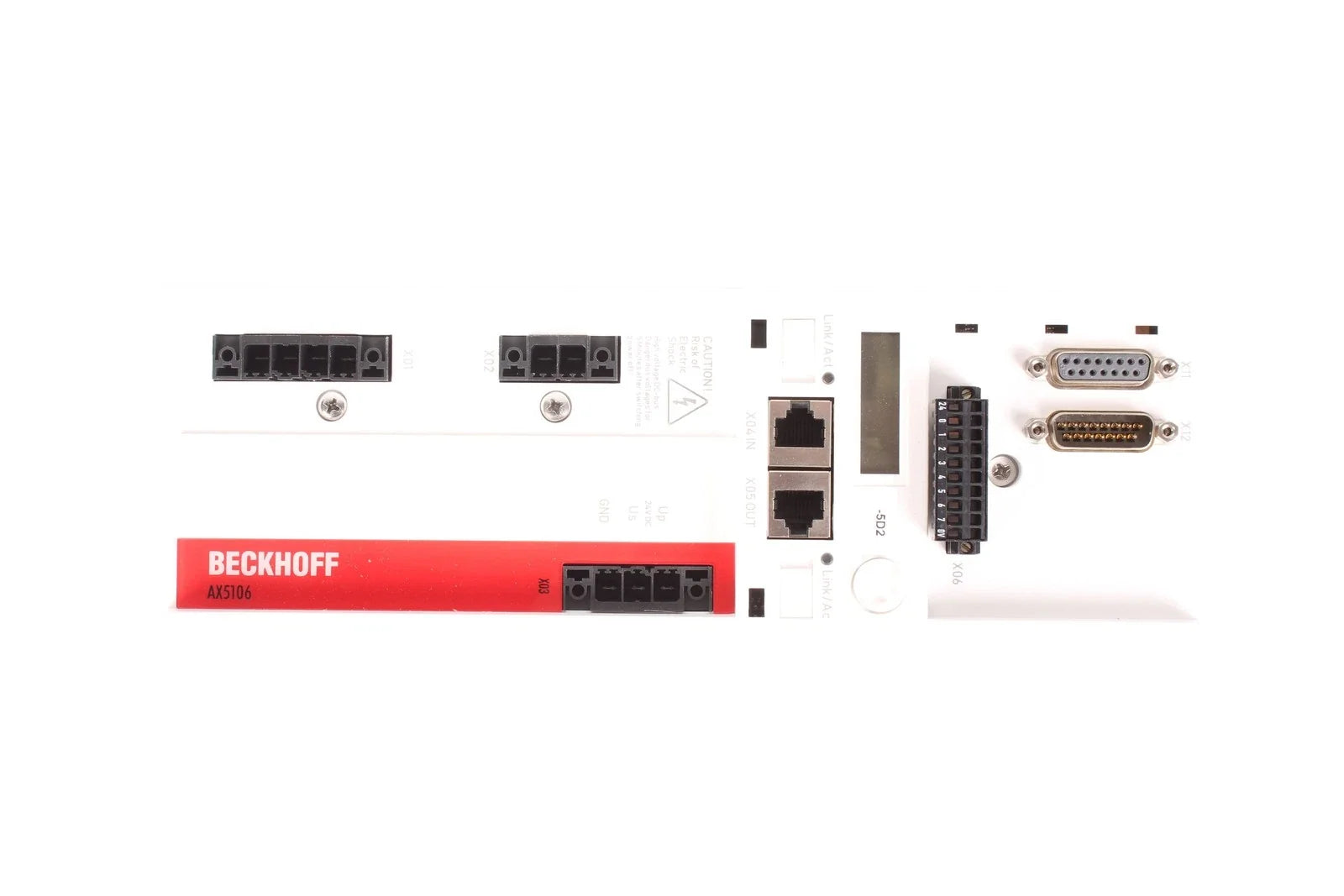

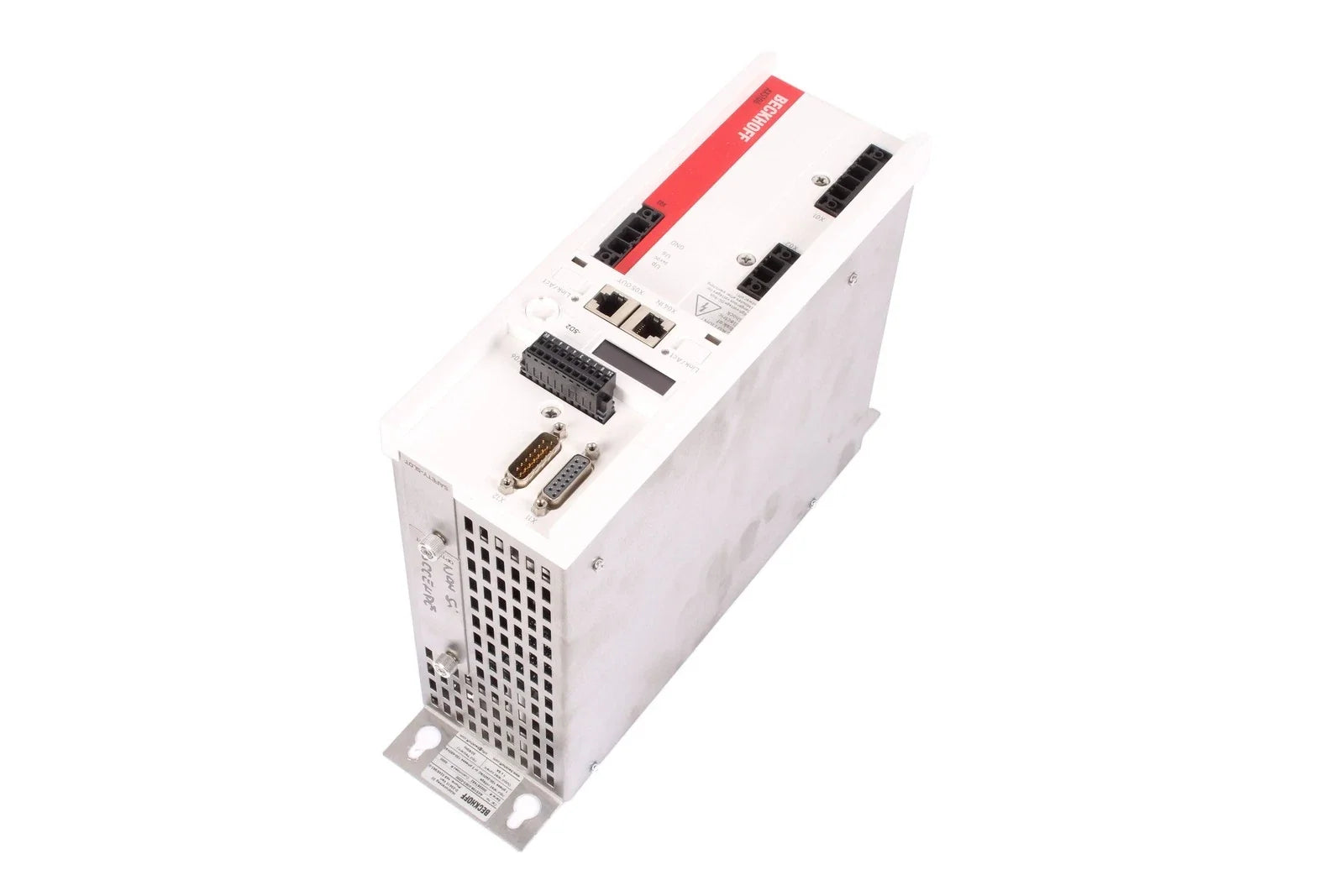

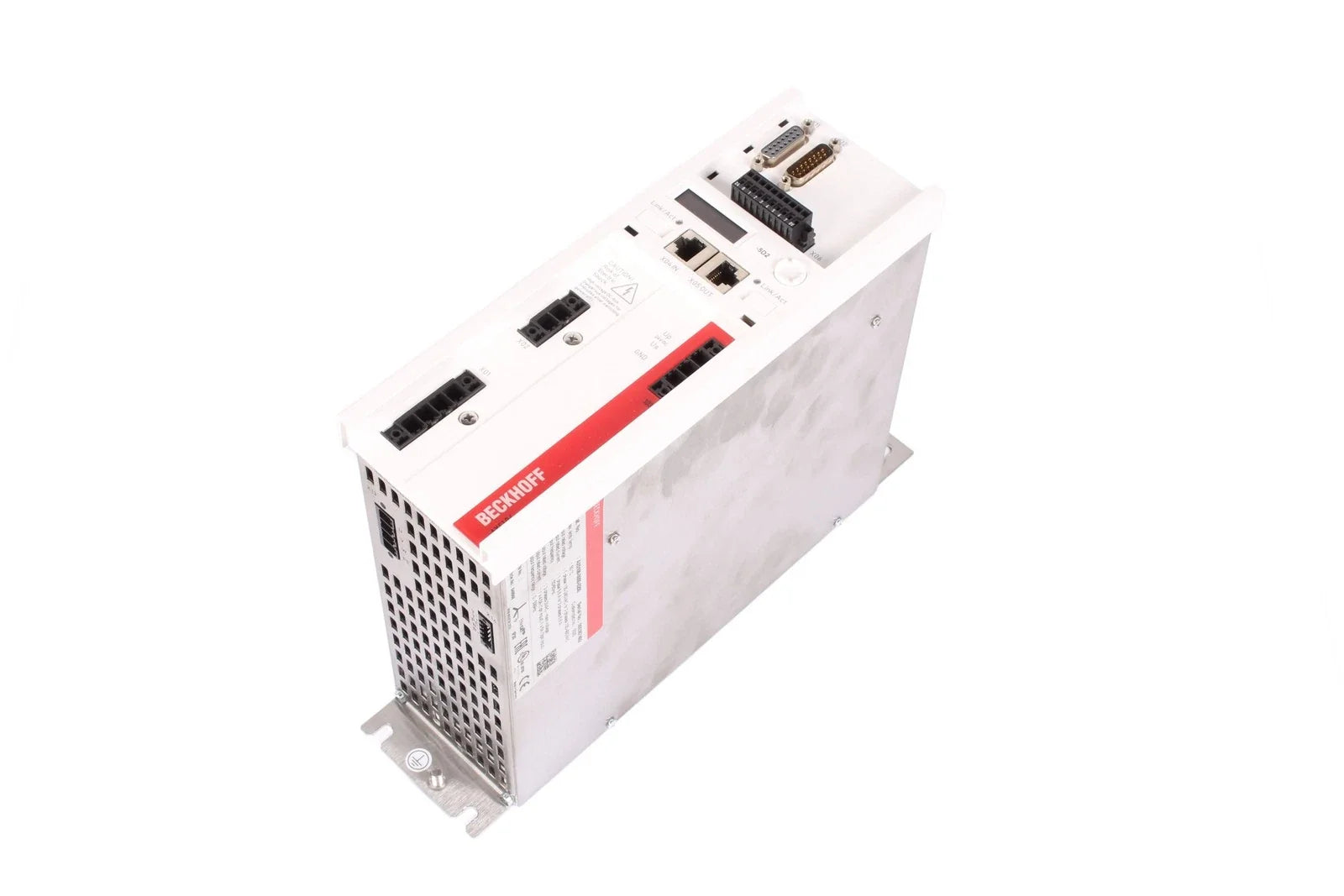

The Beckhoff AX5106-0000-0200 is a 1-channel digital compact servo drive from the AX5000 series, engineered for precise motion control and high-performance automation. It operates on a 3×100–480 VAC supply, delivers a rated current of 6 A, and integrates EtherCAT communication for real-time control and synchronization.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial Automation |
| Part Number |
AX5106-0000-0200 |
| Subcategory |
Digital Servo Drive |
| Function |
Servo drive for motion control applications |
| Channels |
1 |
| Rated Supply Voltage |
3 × 100…480 V AC ±10% |
| DC Link Voltage |
Max. 875 V DC |
| Rated Output Current (Channel) |
6 A |
| Peak Output Current (Channel) |
13 A |
| Drive Profile |
SERCOS™ profile for servo drives (IEC 61800-7-204, SoE) |
| System Bus |
EtherCAT |
| Feedback Types Supported |
SinCos 1 VPP, resolver, EnDat® 2.1, HIPERFACE®, BiSS® B, One Cable Technology (OCT) |
| Hardware Version |
2.0 |
| Firmware Version |
2.06 |
| Option Card Requirement |
Operation requires additional option card (not included) |
| Cooling Method |
Integrated fan cooling |
| Ambient Temperature (Operation) |
0°C to +50°C |
| Storage Temperature |
-25°C to +85°C |
| Protection Rating |
IP20 |
| Approvals |
CE, cULus |
| Installation Type |
Control cabinet mounting |
| Dimensions (Approx.) |
Compact AX5000 housing form |
| Weight |
5.07 lbs (approx. 2.3 kg) |
Information About AX5106-0000-0200
The AX5106-0000-0200 is part of Beckhoff’s AX5000 family of compact digital servo drives, designed for dynamic and precise control of synchronous and asynchronous motors. This 1-channel unit delivers a rated current of 6 A and supports peak currents up to 13 A, making it ideal for medium-power servo applications. It operates on a wide voltage range of 3×100–480 VAC and features an integrated EtherCAT interface for deterministic real-time communication. The drive supports various feedback systems including SinCos, EnDat®, HIPERFACE®, BiSS®, and OCT, ensuring compatibility with a broad range of servomotors. With its SERCOS drive profile and advanced control algorithms, the AX5106 enables smooth, efficient motion and precise positioning in industrial automation systems.
Key Features:
- High-Performance Servo Drive: Designed for 1-axis motion control with a rated output of 6 A and peak of 13 A.
- EtherCAT Communication: Integrated EtherCAT interface ensures deterministic real-time data exchange and synchronization.
- Versatile Feedback Support: Compatible with SinCos, EnDat®, HIPERFACE®, BiSS®, resolver, and OCT feedback systems.
- Wide Voltage Range: Operates from 3×100–480 V AC with DC link voltage up to 875 V for global usability.
- Compact, Modular Design: Space-saving form factor for easy integration in control cabinets.
- SERCOS Drive Profile: Complies with IEC 61800-7-204 for standardized servo control and interoperability.
- Dynamic Motion Control: Fast current control and high-resolution feedback deliver smooth and accurate positioning.
- Industrial Reliability: CE and cULus approved for safe and dependable operation in demanding environments.
The AX5106-0000-0200 delivers the reliability and precision required for servo motion control, robotics, and high-speed automation applications.
