Description

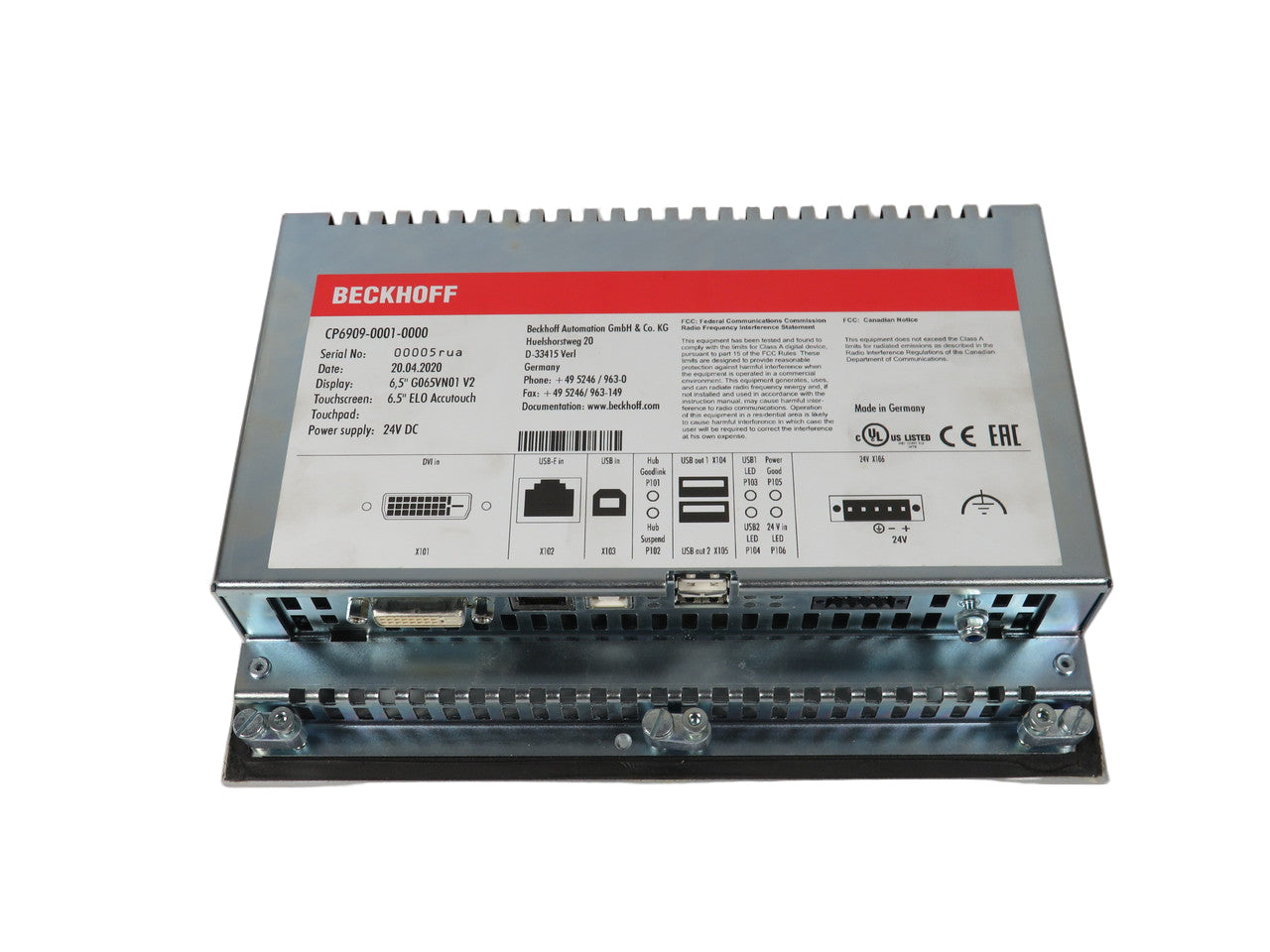

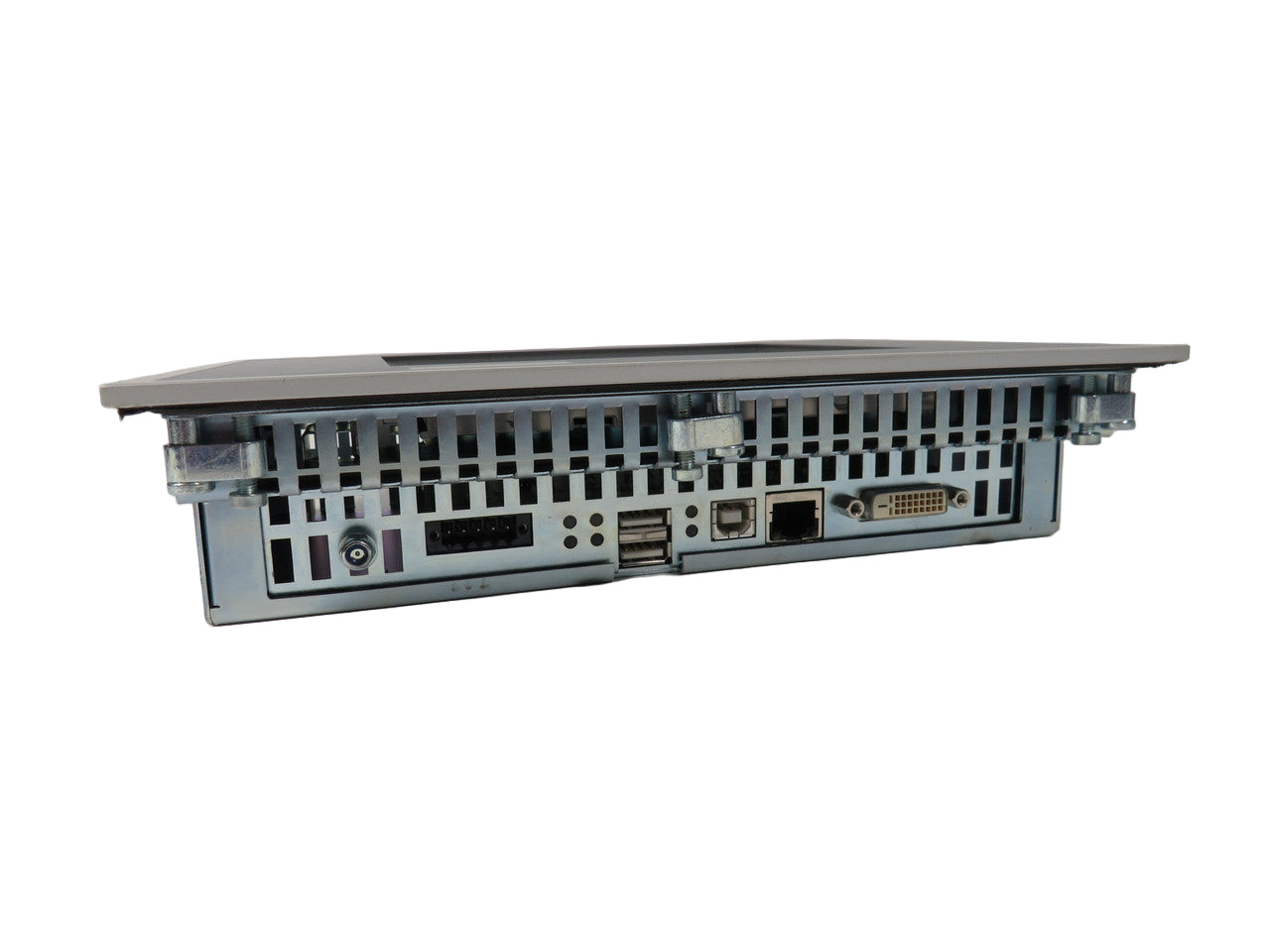

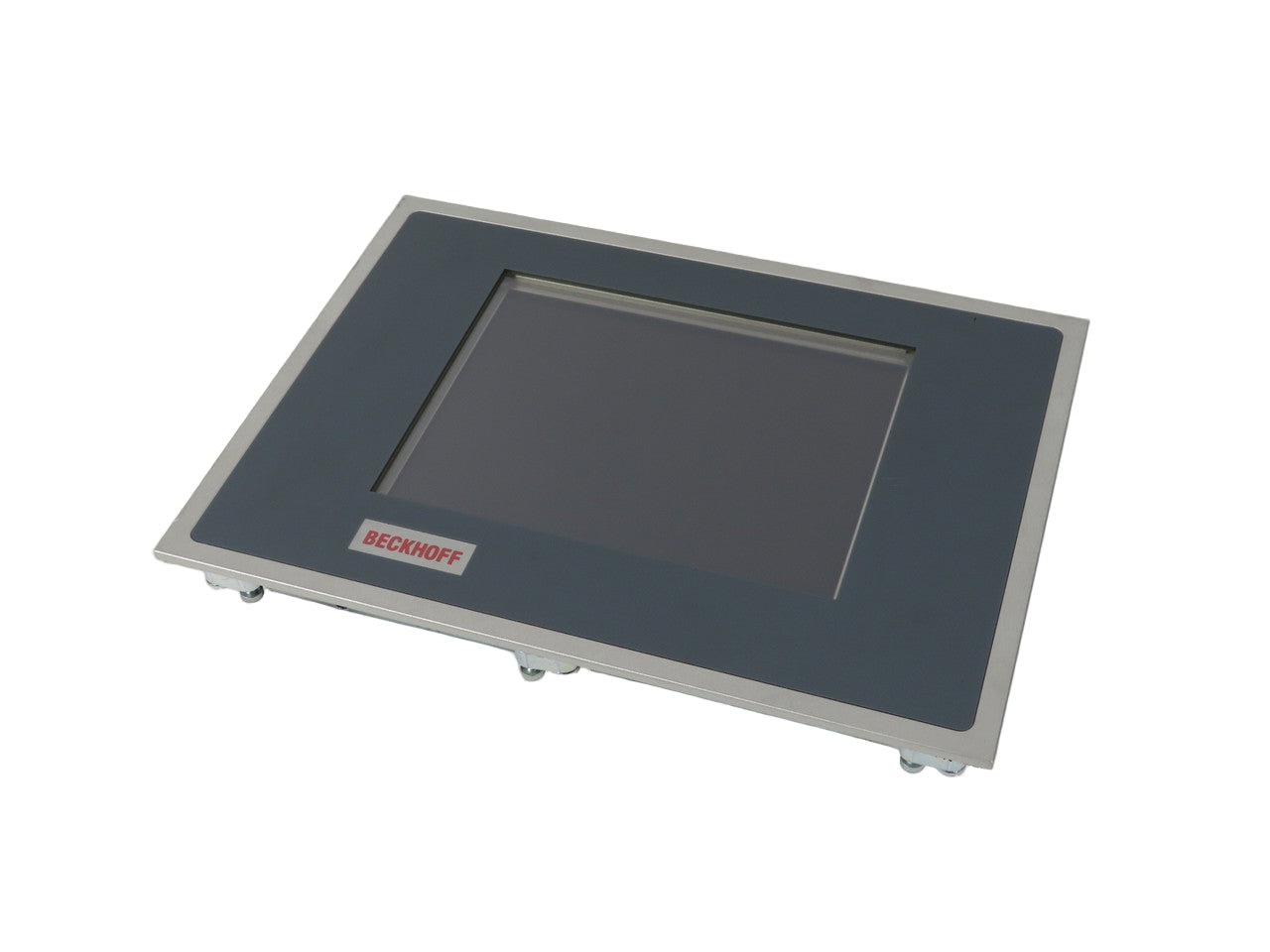

The Beckhoff CP6909-0001-0000 is a 6.5-inch built-in economy control panel with DVI/USB Extended interface for industrial applications. Featuring a 640 × 480 resolution touch display and rugged housing, it provides reliable operator interaction with IP65 front protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial Control Panels |
| Part Number |
CP6909-0001-0000 |
| Subcategory |
Economy Built-in Panels |
| Display Size |
6.5-inch |
| Display Resolution |
640 × 480 pixels |
| Touch Technology |
Touch screen |
| Keys |
Without keys |
| Interface |
DVI/USB Extended |
| Nominal Input Voltage |
24 V DC (22–30 V DC permissible) |
| Power Supply Connection |
5-pin voltage socket with strain relief housing |
| Housing Material |
Sheet-steel housing with aluminum front |
| Front Protection Rating |
IP65 |
| Rear Protection Rating |
IP20 |
| Ambient Operating Temperature |
0…+55 °C |
| Storage/Transport Temperature |
-25…+65 °C |
| Relative Humidity |
Max. 95%, no condensation |
| Vibration Resistance |
10–58 Hz: 0.035 mm, 58–500 Hz: 0.5 G (~5 m/s²) |
| Shock Resistance |
5 G (~50 m/s²), duration: 30 ms |
| EMC Immunity |
Conforms to EN 61000-6-2 |
| EMC Emission |
Conforms to EN 61000-6-4 |
| Installation |
Built-in |
| Weight |
3.26 lbs |
Information About CP6909-0001-0000
The CP6909-0001-0000 is part of Beckhoff’s CP69xx “Economy” series of built-in control panels, offering a cost-effective yet robust solution for industrial operator interfaces. This panel features a 6.5-inch display with a resolution of 640 × 480 pixels, providing clear visualization of control processes. Equipped with a DVI/USB Extended interface, it connects to external industrial PCs for visualization tasks over distances up to 50 m. With a rugged steel housing, aluminum front, and IP65 protection on the front side, it is built to withstand demanding factory environments while maintaining compact installation capability.
Key Features:
-
6.5-Inch Display: Provides a 640 × 480 resolution screen for basic but clear industrial process visualization.
-
Touch Screen Input: Enables reliable operator interaction without mechanical keys, reducing wear.
-
DVI/USB Extended Connectivity: Allows long-distance connection to industrial PCs for visualization and control.
-
Durable Construction: Features a sheet-steel housing with aluminum front for strength and longevity.
-
High Protection Rating: Front side rated at IP65, ensuring dust and water resistance, while rear is IP20.
-
Stable Power Supply Range: Operates on 22–30 V DC with a secure 5-pin voltage socket and strain relief.
-
Industrial Resilience: Built to resist vibration, shock, and electromagnetic interference in factory conditions.
-
Wide Environmental Tolerance: Supports operation from 0 to +55 °C with storage capability down to -25 °C.
The CP6909-0001-0000 delivers the reliability and precision required for cost-effective industrial visualization and operator control solutions.
