Description

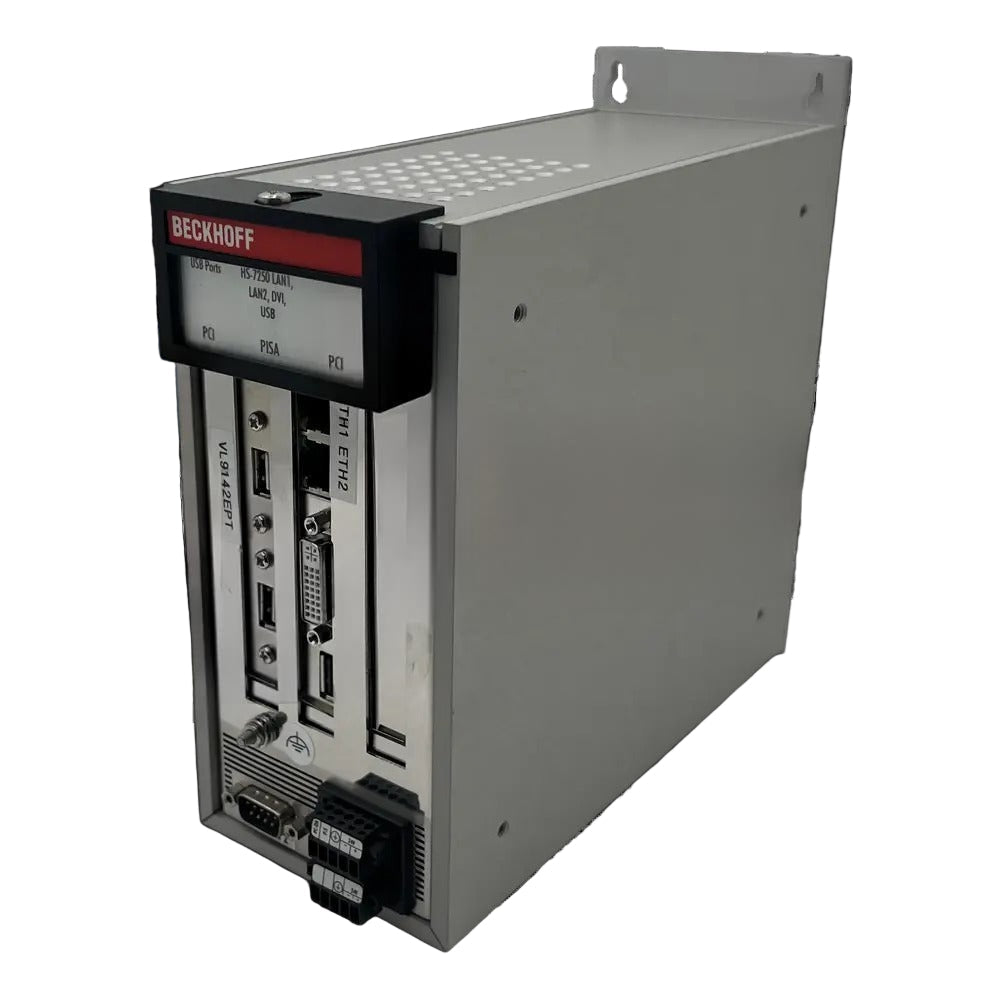

The Beckhoff C6320-0020 is a compact control cabinet industrial PC designed for space-saving installation in automation environments. It is equipped with an Intel Celeron 1.50 GHz CPU, 1 GB DDR2 RAM, and flash card storage, making it suitable for lightweight control applications. With a 3-slot configuration and accessible connectors, it is optimized for reliable and efficient cabinet integration.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Computer |
| Part Number |
C6320-0020 |
| Subcategory |
Computer |
| Series |
C6 Industrial PC |
| Applications |
Lightweight automation industries |
| Processor |
Intel Celeron 1.50 GHz |
| RAM |
1 GB DDR2 |
| Storage |
Flash card |
| Expansion Slots |
3 slots (1 slot up to 190 mm plug-in cards) |
| Power Supply |
24 V DC |
| Supply Voltage Range |
22–30 V DC |
| Power Consumption |
150 W |
| Dimensions (W × H × D) |
93 × 196 × 226 mm |
| Weight |
4.0 kg (approx. 10 lbs) |
| Protection Class |
IP20 |
| Shock Resistance (impact) |
5 G, 30 ms |
| Shock Resistance (vibration 10–58 Hz) |
0.035 mm |
| Shock Resistance (vibration 58–500 Hz) |
0.5 G |
| Mounting |
Rear-wall mounting sheet, connectors on one side |
| Installation Orientation |
Must follow orientation diagram |
| Status |
Discontinued by Manufacturer |
Information About C6320-0020
The C6320-0020 is part of the Beckhoff C6 Industrial PC series, engineered for space-constrained control cabinet applications. It provides a 3-slot expansion configuration with one slot supporting plug-in cards up to 190 mm in length, ensuring flexibility for different industrial tasks. The system is powered by a 24 V DC supply with a voltage tolerance of 22–30 V DC, consuming 150 W during operation. Built with robust shock resistance and an IP20 protection class, this model is suitable for lightweight automation tasks requiring dependable computing power.
Key Features:
- Compact Design: Dimensions of 93 × 196 × 226 mm for space-saving cabinet integration.
- Processor: Intel Celeron 1.50 GHz optimized for lightweight control applications.
- Memory: 1 GB DDR2 RAM for stable operation of automation software.
- Storage: Reliable flash card storage solution for industrial environments.
- Expansion Slots: 3-slot configuration, with one supporting plug-in cards up to 190 mm.
- Power Supply: 24 V DC input, supporting 22–30 V DC with 150 W consumption.
- Shock Resistance: 5 G impact (30 ms) and sinusoidal vibration resistance up to 0.5 G.
- Protection: IP20 rating against ingress of solid foreign objects.
- Mounting: Rear-wall sheet mounting with all connectors on one side for easy access.
- Applications: Designed for lightweight automation industries and control system integration.
The C6320-0020 delivers the reliability and efficiency required for cabinet-mounted industrial automation PCs.
