Overview

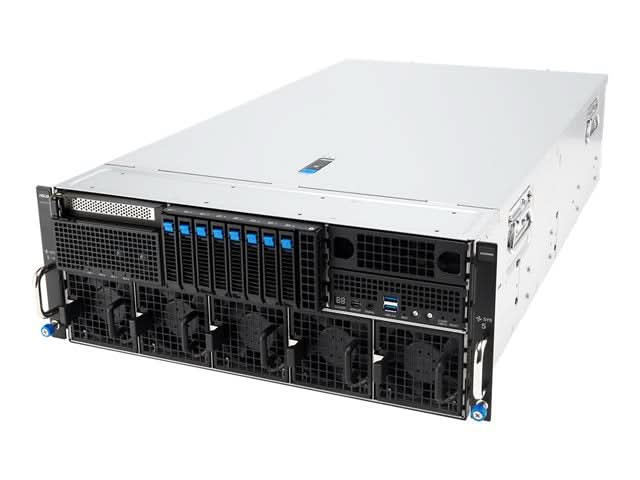

 ASUS ESC8000A-E13P-32W 4U 2-way 3 TB DDR5 SDRAM Rackmount Server

Specifications

Model Number:ESC8000A-E13P-32W

Brand:   ASUS

Alt Part Number(s):ESC8000A-E13P-32W

Product Type: Server

Technical Description

Brand:  ASUS

Model:ESC8000A-E13P-32W

Form Factor: Rack-mountable - 4U, GPU Server

Server Scalability: 2-way

Processor Socket: 2 x LGA6096

CPU Installed: No CPU (Upgradable)

Max CPU Supported: 2

RAM Installed / Max: 0 GB / 3 TB DDR5 SDRAM

Memory Slots: 24 DIMM 288-pin (24 empty)

Storage Bays: 8 x 2.5" hot-swap bays

Storage Controller: 1 x NVMe, 8 channels

Hard Drive Installed: None

M.2 Slots: 2 x M.2 22110 (PCIe 5.0 x4 mode)

Power Supply: 4 x 3200W (AC 200–240V, 50/60Hz)

Power Redundancy: Yes (3+1 Redundancy Scheme)

Efficiency Certification: 80 PLUS Platinum

Software Included: ASUS Control Center Enterprise

Operating System: Not included

Operating Temperature: 50°F to 95°F

Operating Humidity: 20% – 95% (non-condensing)

Expansion Slots:
 • 8 x PCIe 5.0 x16 (full-length, full-height)
 • 5 x PCIe 5.0 x16 (half-length, full-height)
 • 1 x PCIe 5.0 x16 (half-length, full-height, x8 mode)

Interfaces:
 • 3 x USB 3.2 Gen 1 (2 front, 1 rear)
 • 1 x Mini DisplayPort (front)
 • 2 x 10GbE LAN (rear)
 • 1 x Management RJ-45

Networking:
 • 2 x 10 Gigabit Ethernet (Intel X710-AT2)
 • Supports 1GbE, 2.5GbE, 5GbE, 10GbE

*
