Overview

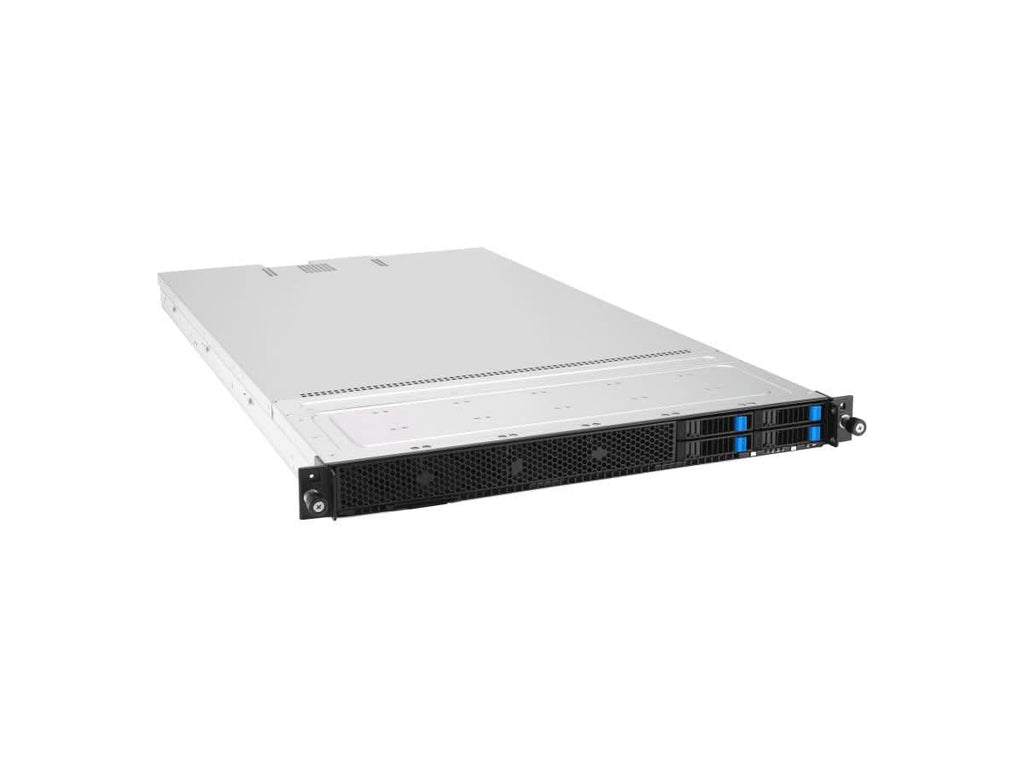

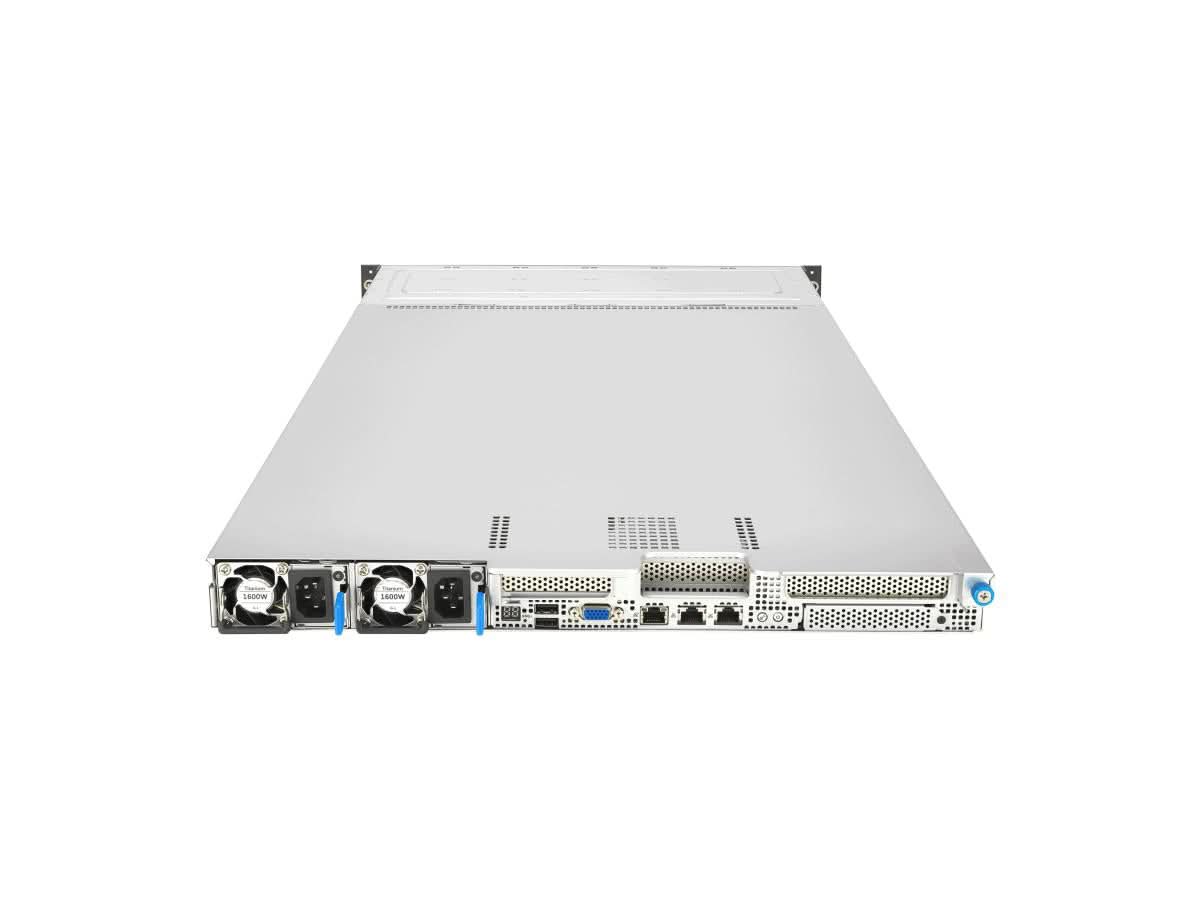

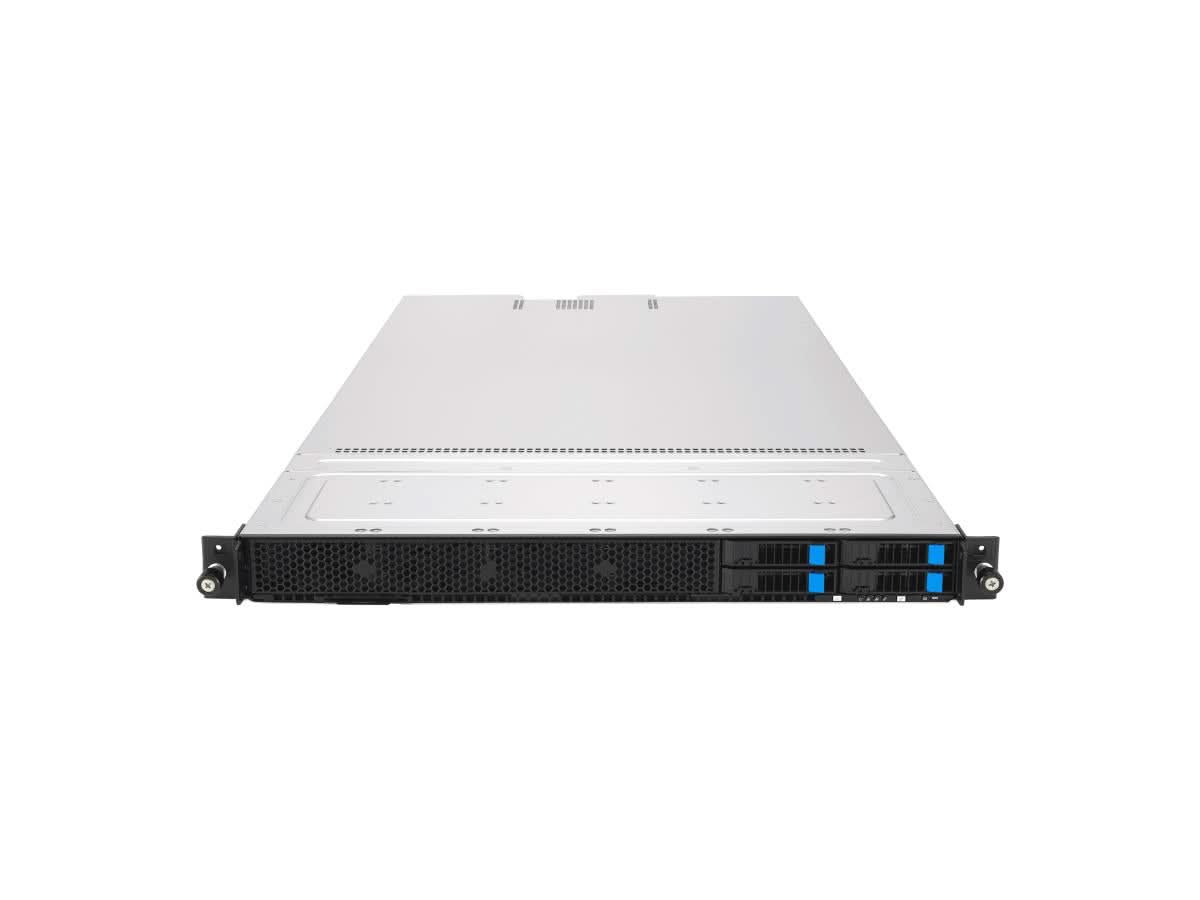

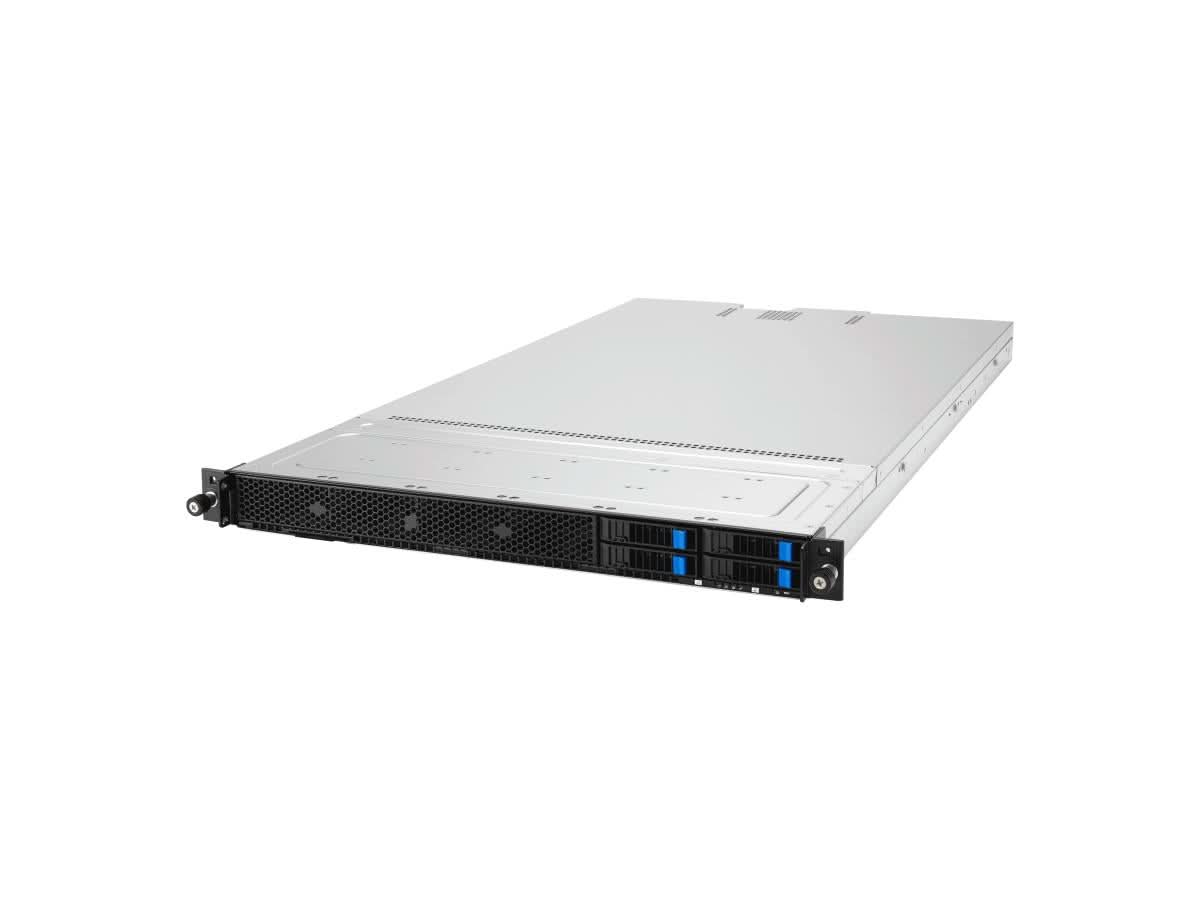

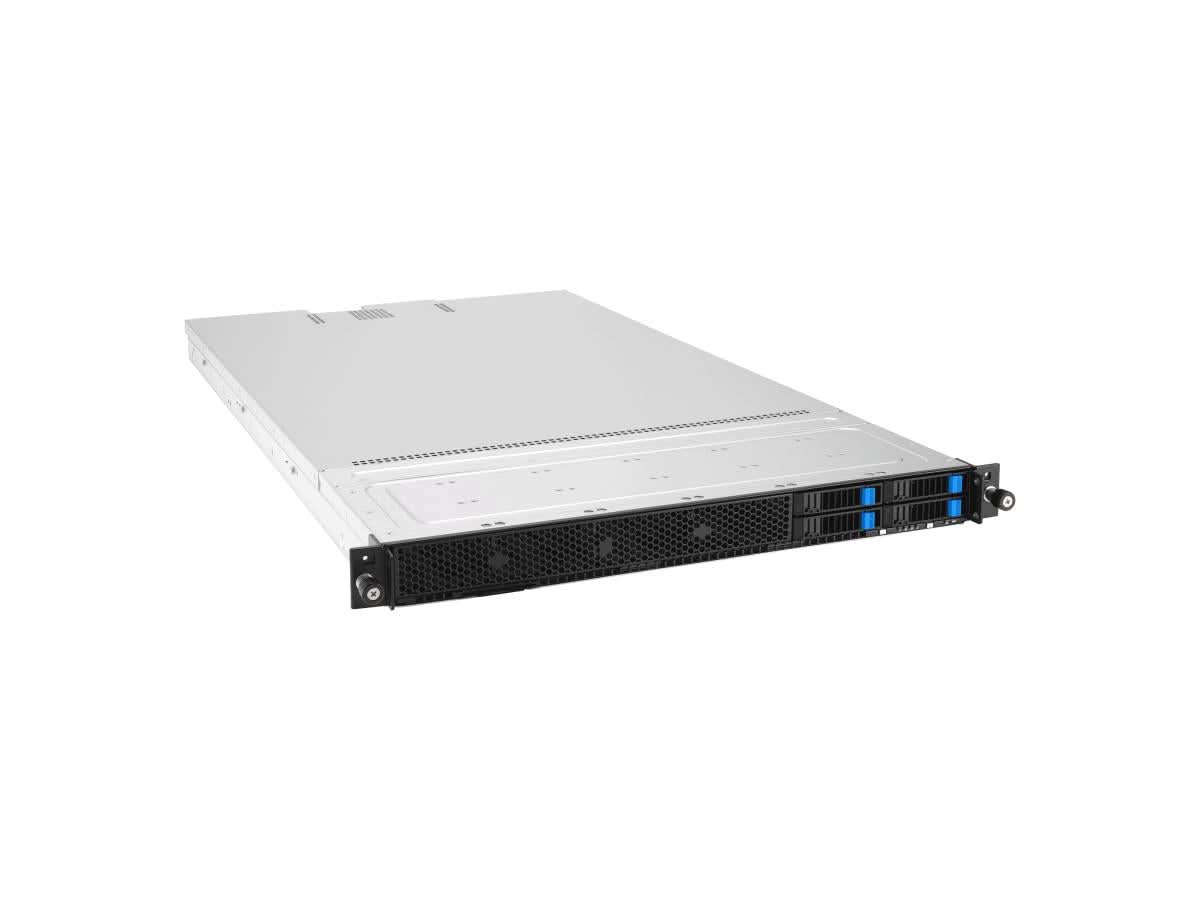

 ASUS RS501A-E12-RS4U-16TWH AMD EPYC 9005 24 DIMM DDR5 1U Server

Specifications

Model Number:RS501A-E12-RS4U-16TWH

Brand:   ASUS

Alt Part Number(s):RS501A-E12-RS4U-16TWH

Product Type: Server

Technical Description

Brand:  ASUS

Model:RS501A-E12-RS4U-16TWH

Form Factor: 1U Rackmount, GPU Servers

Processor / Type: EPYC 9005 series

Processor / Manufacturer: AMD

Processor / Installed Qty: 1

RAM / Technology: DDR5

RAM / Memory Speed: 5600 MHz

RAM Form Factor: DIMM

RAM / Total Slots Qty: 24

RAM / Max Supported Size: 2304 GB

Hard Drive / Interface Type: NVMe; PCIe 5.0

Networking Type: Ethernet

Data Link Protocol: Gigabit Ethernet

Power / Device Type: Power Supply

Power / Redundant Capable: Yes

Power / Redundant Scheme: 1+1

Interfaces & Connections: 1 × Dual Port Intel I350-AM2 GbE LAN Controller, 1 × Management Port ; Rear I/O Ports: 2 × USB 3.2 Gen1 ports, 1 × VGA port, 1 × Management port, 2 × 1GbE LAN ports

Expansion Slots Total (Free): Up to 3 PCIe Gen5 slots + 1 OCP 3.0: 1 × PCIe x16 slot (Gen5 x16 link, FH, HL), 1 × PCIe x16 slot (Gen5 x16 link, LP, HL), 1 × PCIe x16 slot (Gen5 x8 link, LP, HL), 1 × OCP 3.0 socket (Gen5 x16 link)

Features: Powerful performance; Scale-up storage and expansion design; Flexible networking module design

Min Operating Temperature: 10°C

Max Operating Temperature: 35°C

*
