Overview

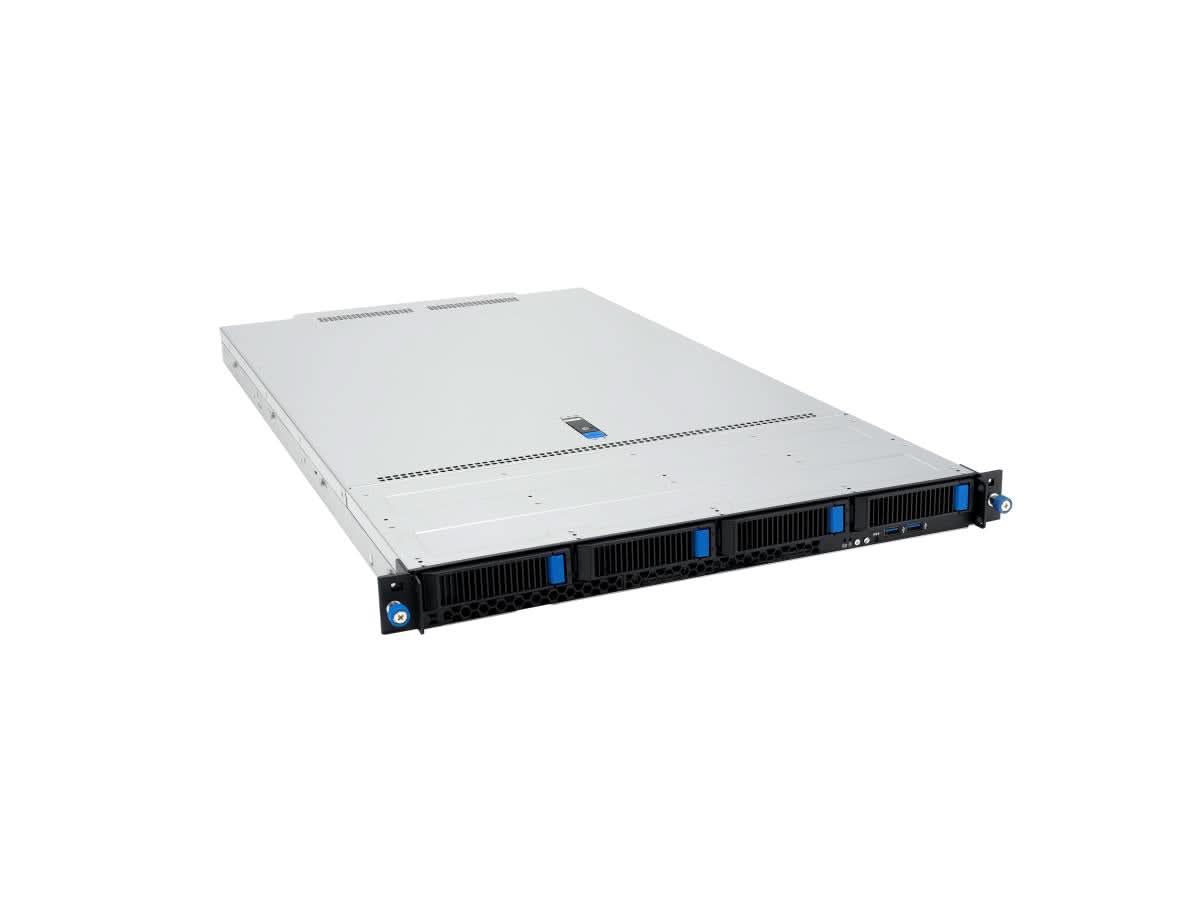

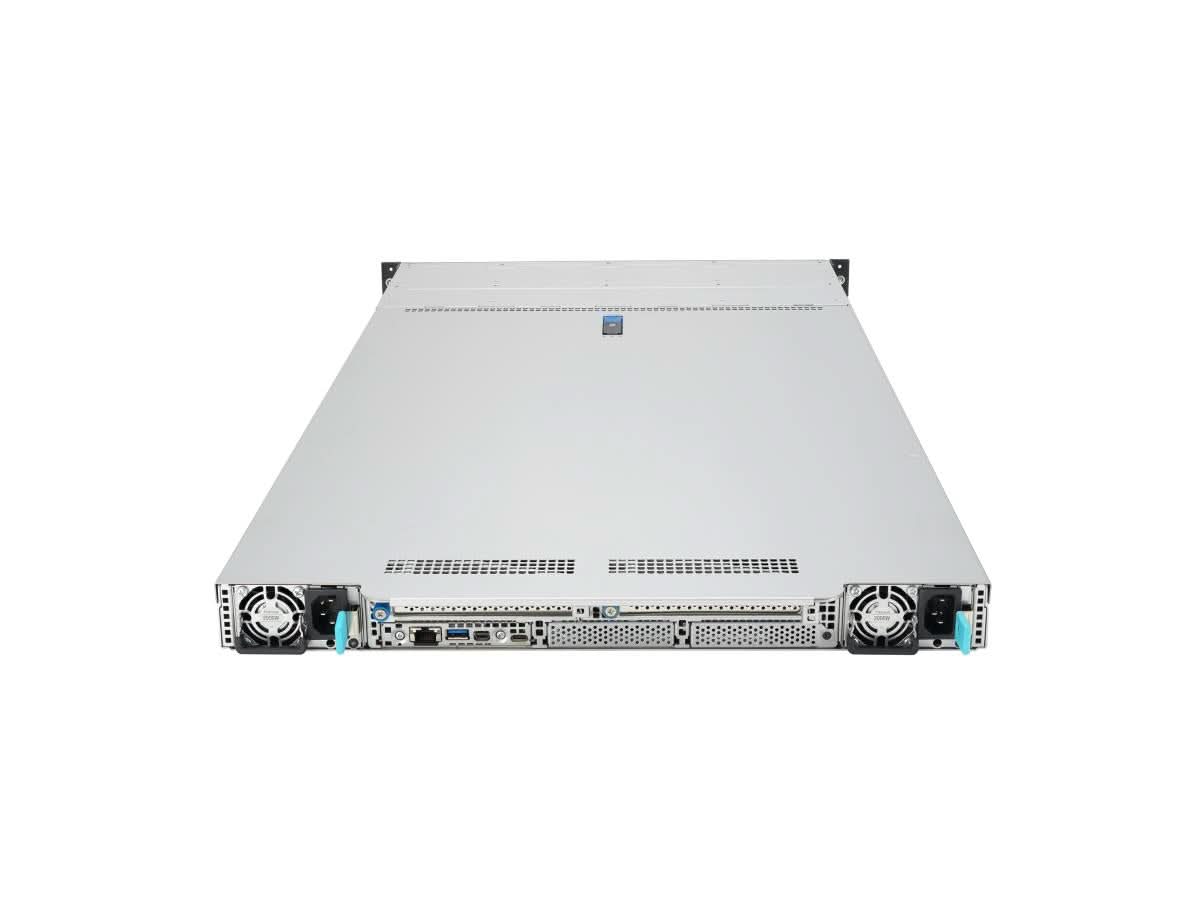

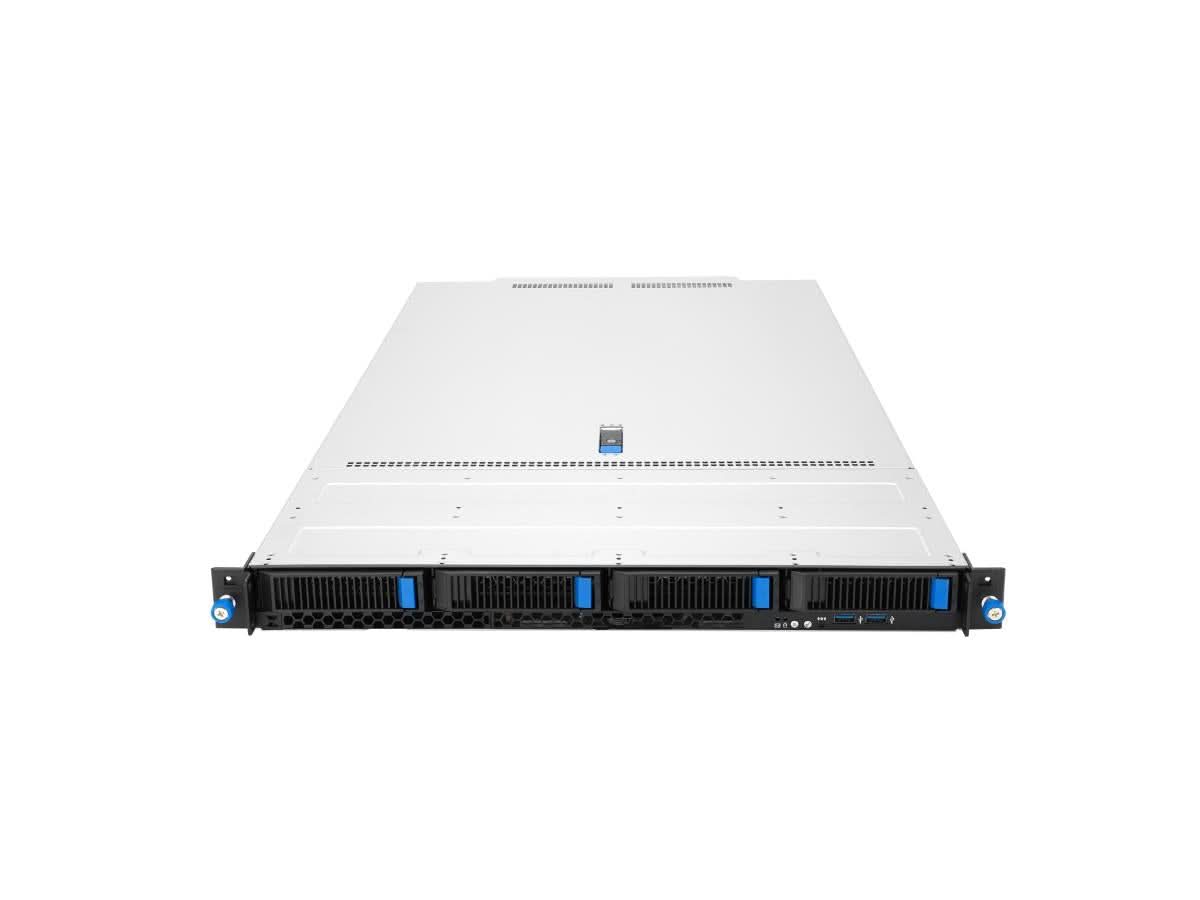

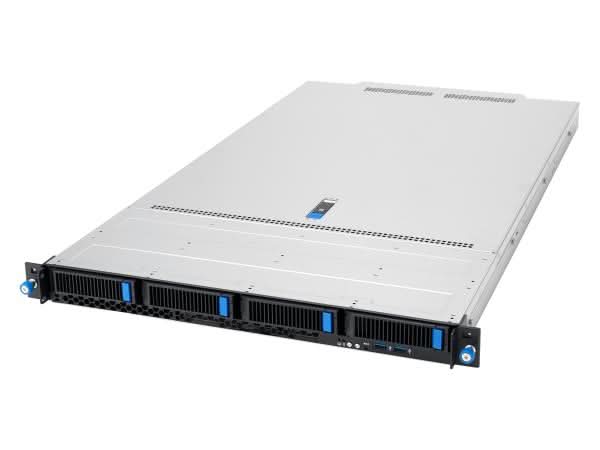

 ASUS RS700-E12-RS4U-2KW10G Dual Intel Xeon 6 1U Server

Specifications

Model Number:RS700-E12-RS4U-2KW10G

Brand:   ASUS

Alt Part Number(s):RS700-E12-RS4U-2KW10G

Product Type: Server

Technical Description

Brand:  ASUS

Model:RS700-E12-RS4U-2KW10G

Form Factor: 1U Rackmount, GPU Servers

Processor / Type: Xeon

Processor / Manufacturer: Intel

RAM Form Factor: DIMM

RAM / Total Slots Qty: 32

RAM / Max Supported Size: 4 TB

Hard Drive / Interface Type: NVMe; PCI Express

Hard Drive / Bays Qty: 4

Power / Device Type: Power Supply

Power / Redundant Capable: Yes

Power / Redundant Scheme: 1+1

Power / Provided (W): 2000 Watt

Power / Voltage Required: 100-127V~/220-240V, 50-60Hz

Interfaces & Connections: 1 × Management Port, 2 × USB 3.2 Gen1 ports (Rear), 1 × Mini-DP port (Rear), 1 × RJ-45 Management LAN port (Rear), 1 × Debug port (Rear)

Expansion Slots Total (Free): Total 4 expansion slots: 2 × PCIe Gen5 x16 (FHHL), 2 × OCP3.0 Gen5 x16 (SFF)

Features: Superior Performance for Multi-tasking; Modular and scalable architecture; All-NVMe Storage Design

Min Operating Temperature: 10°C

Max Operating Temperature: 35°C

*
