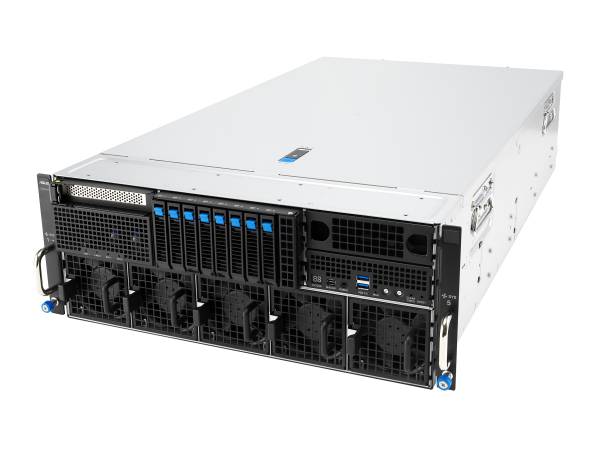

Overview
ASUS ESC8000-E12P-32W from the ESC GPU server series features dual Intel Xeon processors with 128 cores and 32 DDR5 slots supporting up to 4 TB memory. It includes 8 dual-slot GPU support, 8 NVMe 2.5" bays, multiple PCIe Gen5 expansion slots, 4 redundant 3.2 KW power supplies, and 10 Gb Ethernet for high-performance AI and GPU compute workloads.
Specifications
Model Number:ESC8000-E12P-32W
Brand:ASUS
Alt Part Number(s):ESC8000-E12P-32W
Product Type: Server
Technical Description
Brand:ASUS
Model:ESC8000-E12P-32W
Form Factor: 4U Rackmount, GPU Server
Processor Type: Xeon
Processor Manufacturer: Intel
Number of Processors Installed: 2
RAM Technology: DDR5
Total RAM Slots: 32
Hard Drive Interface Type: PCIe 5.0; NVMe
Data Link Protocol: 10 Gigabit Ethernet
Power Device Type: Power Supply - Redundant
Number of Power Supplies Installed: 4
Power Provided: 3.2 KW
Power Voltage Required: 20-240 Vac, 16A (x4), 50/60Hz
80 PLUS Certification: 80 PLUS Titanium
Front I/O Ports: 1 x Mini DisplayPort; 2 x USB 5Gbps ports; 1 x Debug port
Rear I/O Ports: 1 x USB 5Gbps port; 2 x RJ-45 LAN ports; 1 x RJ-45 management LAN port
Expansion Slots Total (Free): 8 x PCIe x16 for dual-slot GPU cards (Gen5 x16, FHFL); 5 x PCIe x16 for NIC/BlueField-3 cards (Gen5 x16, FHFL); 1 x PCIe x16 (Gen5 x8, FHHL)
GPU Support: 8 dual-slot NVIDIA H200 GPUs; NVIDIA RTX PRO 6000 Blackwell Server Edition; Intel Gaudi 3 PCIe AI Accelerator
NVMe Support: 8 x 2.5-inch NVMe
Width: 31.5 Inch
Depth: 17.3 Inch
Height: 6.9 Inch
Weight: 42 Kg
Minimum Operating Temperature: 10 C
Maximum Operating Temperature: 35 C
Operating Humidity: 20% ~ 95% (Non-condensing)
*
