Description

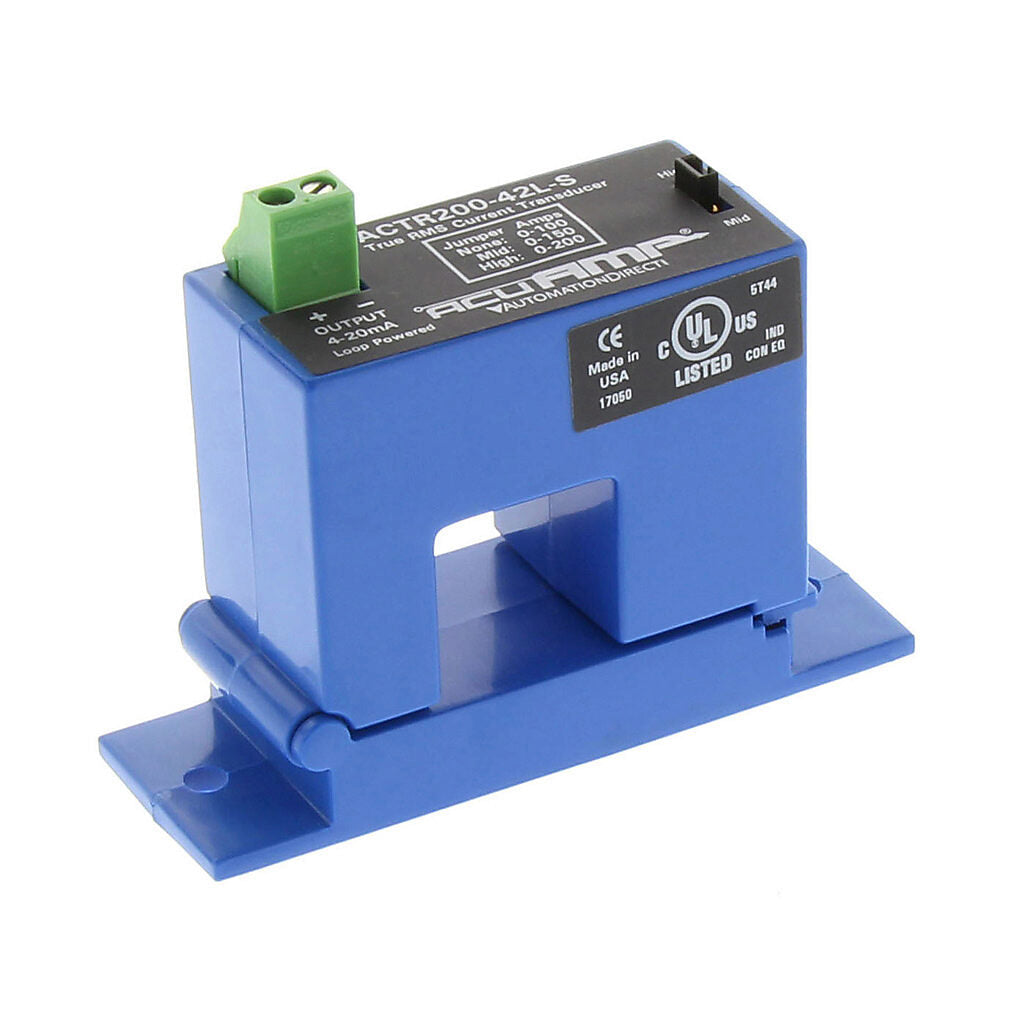

The AcuAMP ACTR200-42L-S is a single-phase AC current transducer designed for accurate current monitoring in industrial power systems. It features a split-core design with selectable sensing ranges of 0–100 A, 0–150 A, or 0–200 A and provides a True RMS 4–20 mA output signal. The unit operates from 24 VDC and is suitable for integration into control panels and energy monitoring applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
AcuAMP |
| Category |
Sensors & Switches |
| Part Number |
ACTR200-42L-S |
| Subcategory |
Voltage/Current Transducer |
| Voltage Type |
AC |
| Number of Phases |
1 |
| Body Type |
Split Core |
| Sensing Range |
0–100 A, 0–150 A, or 0–200 A (Selectable) |
| Measurement Method |
True RMS |
| Output Signal |
4–20 mA |
| Operating Voltage |
24 VDC |
| Mounting |
Panel or 35 mm DIN Rail (Optional) |
| Electrical Connection |
Screw Terminals |
| UL Rating |
UL 508 Listed |
| Weight |
0.34 lbs |
Information About ACTR200-42L-S
The ACTR200-42L-S is part of the AcuAMP current sensing product line developed for industrial measurement and control systems. It utilizes a split-core housing that allows installation without disconnecting existing conductors, simplifying retrofit and maintenance tasks. The transducer measures AC current using True RMS technology, ensuring accurate readings even with non-linear loads. Designed for panel or DIN rail mounting, it connects via screw terminals and is UL 508 listed for use in industrial control equipment.
Key Features:
-
Split-Core Design: Allows installation without removing or disconnecting conductors.
-
Selectable Input Ranges: Jumper-configurable for 0–100 A, 0–150 A, or 0–200 A sensing.
-
True RMS Measurement: Provides accurate current readings for distorted or non-linear waveforms.
-
4–20 mA Output: Industry-standard analog output for PLC and control system integration.
-
24 VDC Operation: Compatible with common industrial control power supplies.
-
Single-Phase Monitoring: Designed specifically for AC single-phase applications.
-
Flexible Mounting Options: Supports panel mounting or optional 35 mm DIN rail installation.
-
UL 508 Listed: Certified for industrial control panel applications.
The ACTR200-42L-S delivers the reliability and precision required for industrial current monitoring and energy management systems.
