Description

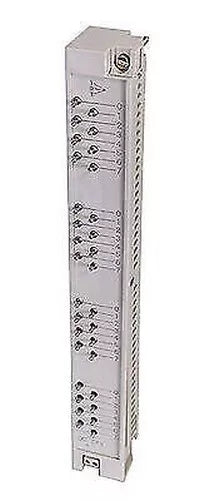

The Siemens 6ES5490-7SA11 SIMULAT Connector is a specialized simulation accessory designed for use with Siemens Simatic S5 systems. It features 32 switches that allow manual simulation of digital inputs for system testing, diagnostics, and development purposes.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Siemens
Category	Testing Equipment
Part Number	6ES5490-7SA11
Subcatecory	Simulation Modules
Product Type	SIMULAT Connector
Series	SIMATIC S5
Switch Count	32
Input Voltage	24V DC
Function	Manual input simulation
Compatibility	Siemens S5 I/O Modules
Weight	0.20 kgs





Information About 6ES5490-7SA11

The 6ES5490-7SA11 is part of the Siemens SIMATIC S5 automation series, known for its robust industrial control capabilities. This simulator module provides 32 manual switches, each rated for 24V DC operation, making it ideal for simulating a wide variety of input scenarios without connecting actual field devices. With its clearly labeled layout and reliable switch mechanism, the SIMULAT connector streamlines the development and debugging processes for control systems by providing a hands-on interface to test the PLC logic.

Key Features:

• 32 Digital Input Switches: Manually simulate up to 32 digital input signals.

• Voltage Compatibility: Designed for 24V DC signal simulation, suitable for industrial environments.

• S5 System Integration: Compatible with Siemens SIMATIC S5 PLC systems.

• Manual Testing Utility: Ideal for simulation, diagnostics, and operator training.

• Compact Form Factor: Easy to handle and connect directly to S5 I/O modules.

The 6ES5490-7SA11 offers a reliable and user-friendly way to validate and troubleshoot Siemens S5 automation solutions.
