Description

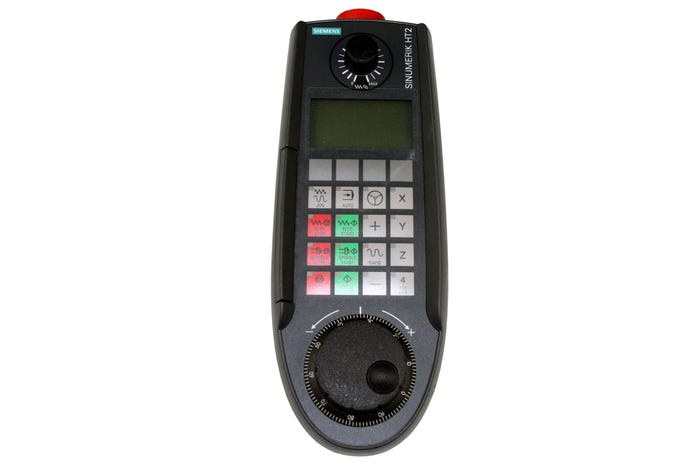

The Siemens SINUMERIK HT 2 Handheld Terminal (6FC5303-0AA00-2AA0) is a robust and ergonomic operator interface designed for manual control and setup of CNC machine tools.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens
|
| Category |
|
| Part Number |
6FC5303-0AA00-2AA0
|
| Subcatecory |
|
| Number of Keys |
20 MEM keys |
Emergency Stop
|
Yes (Emergency Stop Button) |
| Channel Configuration |
2-channel |
| Step Type |
Three-step |
| Enabling Buttons |
2 enabling buttons |
| Wheel Type |
Magnetic wheel |
| Override Control |
Override rotary button
|
| Key Switch |
3-position key switch (2 keys) |
| Power Supply |
24 VDC |
| Ingress Protection Rating |
IP65 |
| Weight |
0,690 kgs |
Information About 6FC5303-0AA00-2AA0
The Siemens SINUMERIK HT 2 Handheld Terminal (Part Number: 6FC5303-0AA00-2AA0) is a rugged and ergonomic operator interface designed for manual control and setup of CNC machine tools. It integrates seamlessly with SINUMERIK systems, providing intuitive operation in demanding industrial environments.
Key Features:
-
Display: 4-line monochrome LCD with 128 × 64 pixel resolution
-
Input Voltage: 24 V DC
-
Power Consumption: Maximum 2.5 W
-
Protection Class: IP65 (dust-tight and protected against water jets)
-
Weight: Approximately 0.69 kg
-
Dimensions: Width: 100 mm, Height: 76.2 mm, Length: 255 mm
-
Operating Temperature: 0 to 55 °C
-
Storage Temperature: -20 to 55 °C
-
Relative Humidity: 5% to 95% (non-condensing)
-
Certifications: CE, cULus
-
Country of Origin: Austria
The SINUMERIK HT 2 handheld terminal is engineered for ease of use, durability, and precise manual control during machine setup and operation. Its compact design and IP65-rated enclosure make it suitable for harsh industrial settings. The terminal's compatibility with SINUMERIK systems ensures seamless integration into existing CNC environments.
