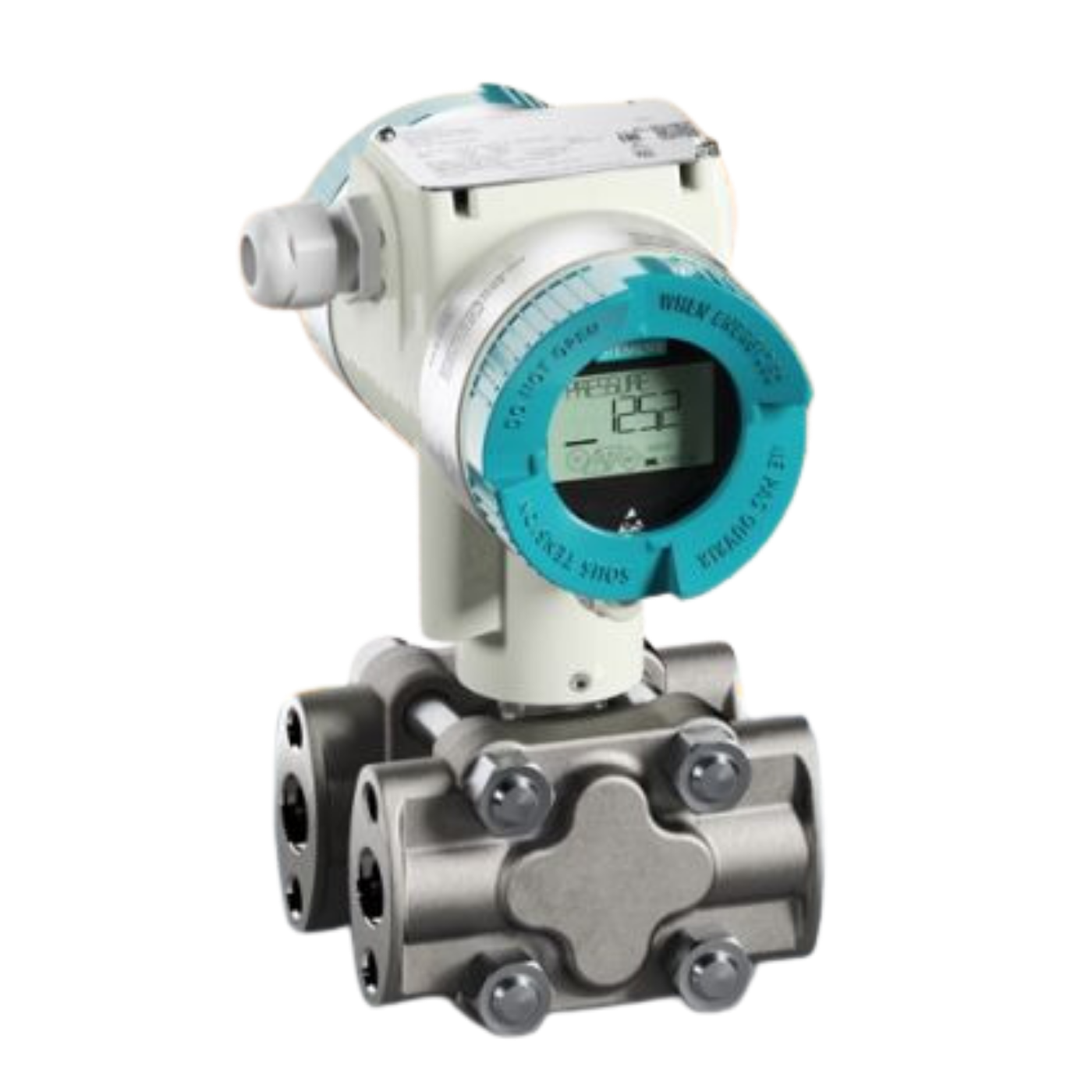

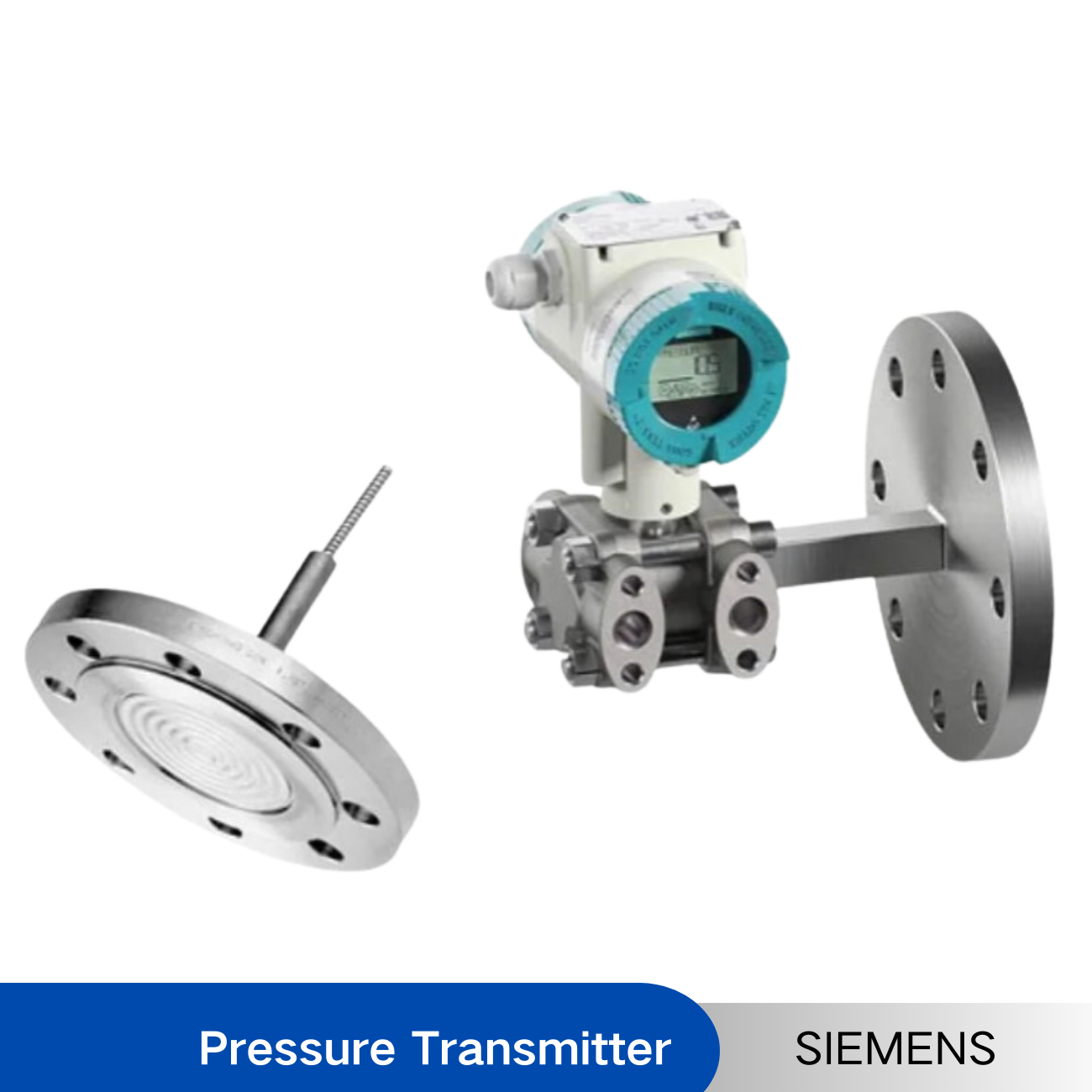

Genuine Siemens SITRANS P420 (7MF08) diaphragm seal, flange-design differential pressure transmitter system with remote safety handling for reduced commissioning time and extended maintenance intervals in harsh process conditions.
Specifications
- Model: 7MF08 (SITRANS P420)
- Type: Remote diaphragm seal, flange design, for differential pressure transmitters
- Main Body Material: Stainless steel 1.4404/316L
- Max Recommended Medium Temperature: 170°C (338°F)
- Weight: Approx. 4 kg (8.82 lb)
- Capillary Length: Up to 10 m (32.8 ft), longer on request
- Capillary Inside Diameter: Up to 1.3 mm (0.051 in)
- Capillary Minimum Bending Radius: 150 mm (5.9 in)
- Filling Liquid Options: Silicone oil M5/M50, high-temperature oil, FDA-listed food oil / Neobee M20, halocarbon oil (O2 service)
- Tube Length Options: 50mm, 100mm, 200mm
- Proof Test Interval: Up to 15 years
Ordering & Availability
This is a B2B wholesale listing. Contact us to request a formal quote (RFQ) with your required filling liquid, capillary length, and quantity for a tailored price.
