Description

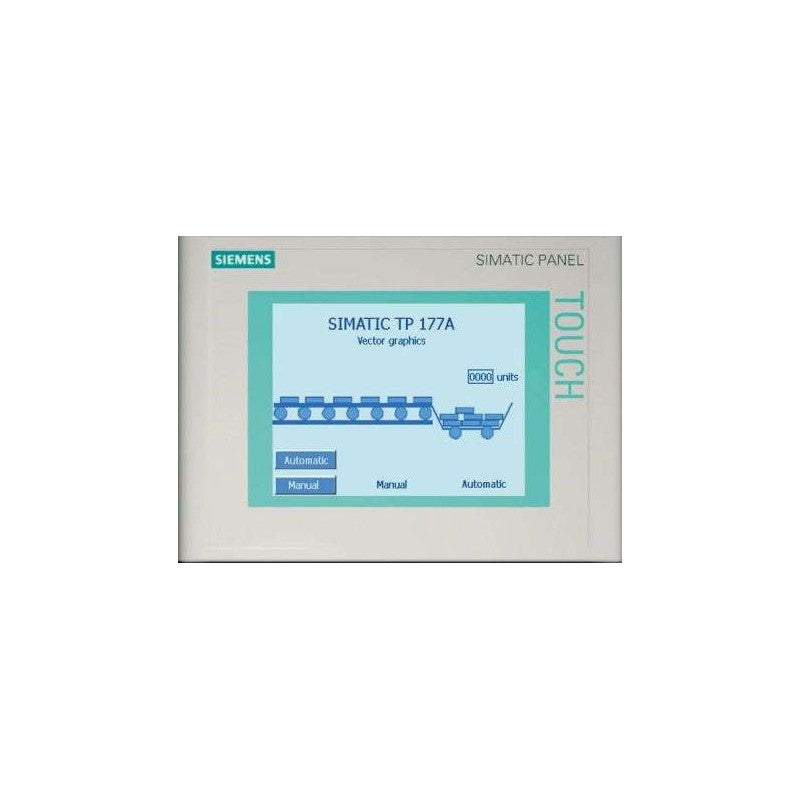

The 6AV6642-0AA11-0AX1 is a Siemens SIMATIC TP177A touch panel designed for operator control and monitoring in industrial automation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens
|
| Category |
|
| Part Number |
6AV6642-0AA11-0AX1 |
| Subcatecory |
|
| Series |
SIMATIC TP177A |
| Display Size |
5.7 inches |
| Display Type |
Monochrome STN |
| Resolution |
320 x 240 pixels (QVGA) |
| Input |
Touchscreen |
| Interface |
Communication: Profinet / Profibus-DP
RS-485 / RS-422 (for serial communication)
|
| Power Supply |
24V DC |
| Memory |
2 MB user memory |
| Enclosure Rating |
IP65 (front), IP20 (rear) |
| Operating Temperature |
0 °C to +50 °C |
| Mounting |
Panel mounting |
| Certifications |
CE, UL, cULus |
| Weight |
3.31 lbs |
Information About 6AV6642-0AA11-0AX1
The 6AV6642-0AA11-0AX1 is a SIMATIC TP177A touch panel from Siemens, designed for simple and reliable operator control and monitoring in industrial automation environments.
Key Features:
- Type: Touch Panel (HMI)
- Series: SIMATIC TP177A
- Display: Size: 5.7 inches; Type: Monochrome STN; Resolution: 320 x 240 pixels (QVGA)
- Input: Touchscreen interface
- Communication Interfaces: Profinet / Profibus-DP; RS-485 / RS-422 (serial communication)
- Power Supply: 24V DC
- User Memory: 2 MB
- Enclosure Ratings: Front: IP65 (dust and water resistant); Rear: IP20
- Operating Temperature Range: 0 °C to +50 °C
- Mounting: Panel mount
- Certifications: CE, UL, cULus
- Applications: Ideal for basic human-machine interface (HMI) tasks such as operator control and process monitoring in compact and cost-sensitive industrial automation setups.
The 6AV6642-0AA11-0AX1 offers a cost-effective, durable solution for straightforward operator interface needs, combining essential HMI functions with Siemens’ proven reliability.
