Description

The 5136-DNP-PCI is a high-performance DeviceNet-compatible PCI interface card designed to provide seamless integration with industrial automation networks. It supports various CAN data rates and configurations, making it suitable for complex and scalable control systems.





Technical Specifications

Condition	New/Never Used Surplus
Brand	SST
Category	Interface Cards
Part Number	5136-DNP-PCI
Subcatecory	DeviceNet / CAN Interface
Form Factor	32-bit PCI short card
Processor	40 MHz
RAM / Flash	512 KB / 512 KB
Shared RAM	256 KB
DeviceNet Connector	5-pin DeviceNet
CAN Data Rates	Up to 1 Mbaud (125, 250, 500 Kbaud supported)
Power Requirements	+5 V ±5%, 400 mA (typical)
Temperature Range (Operating)	0 to 50°C (32 to 122°F)
Electrical Isolation	500 V CAN interface isolation





Information About 5136-DNP-PCI

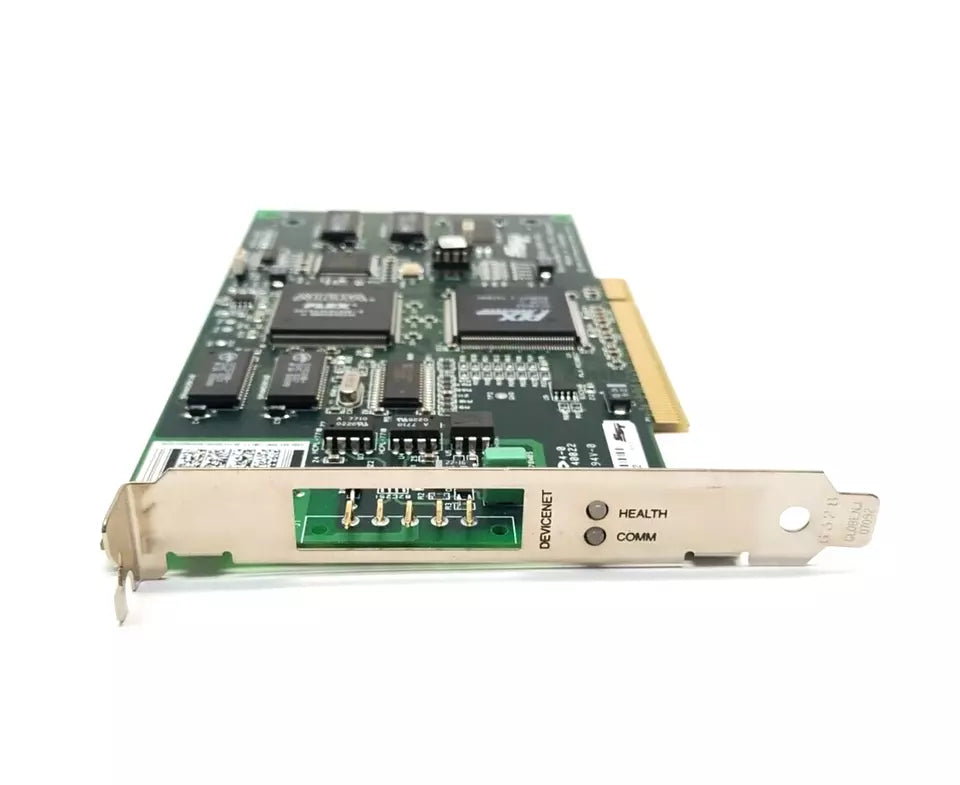

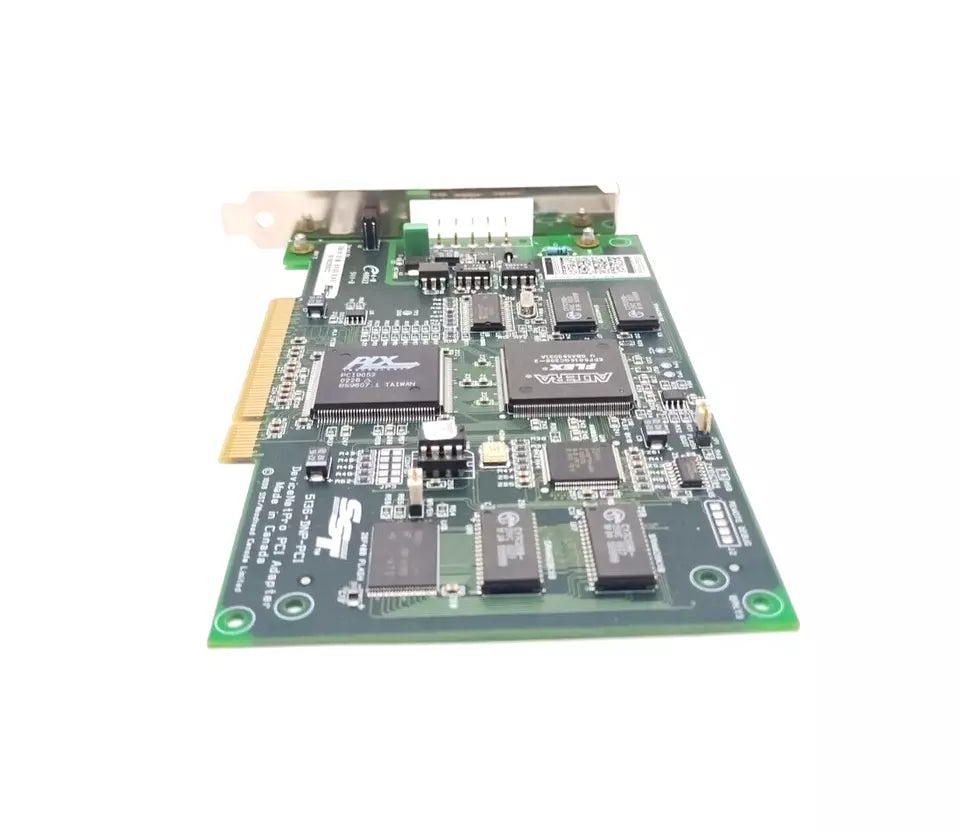

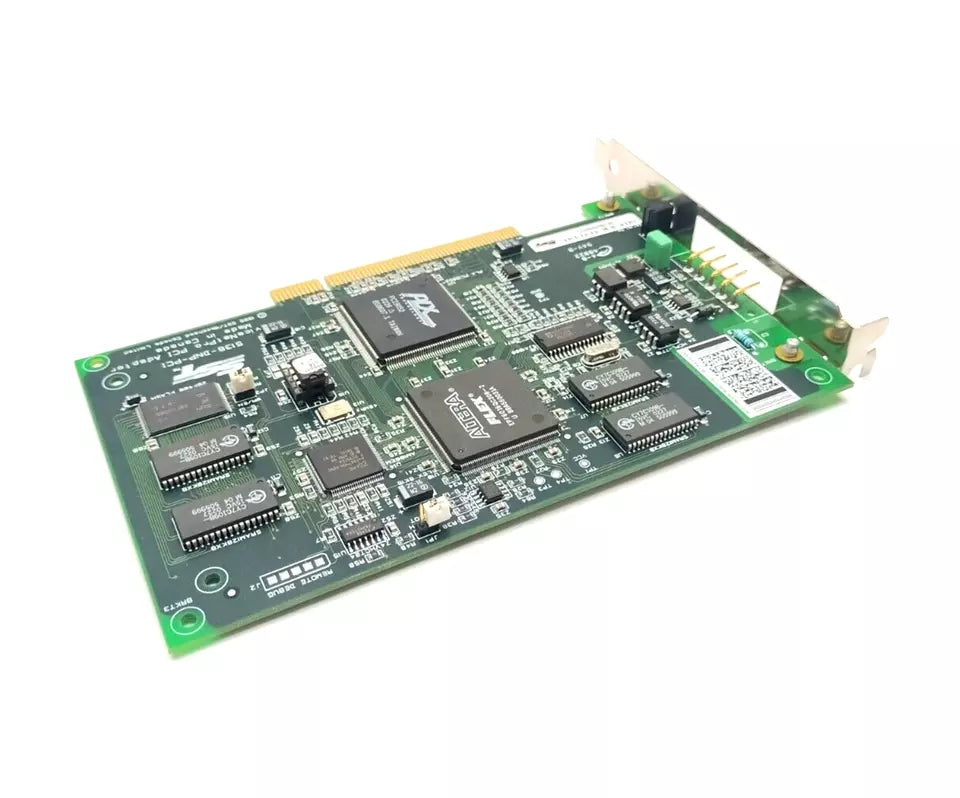

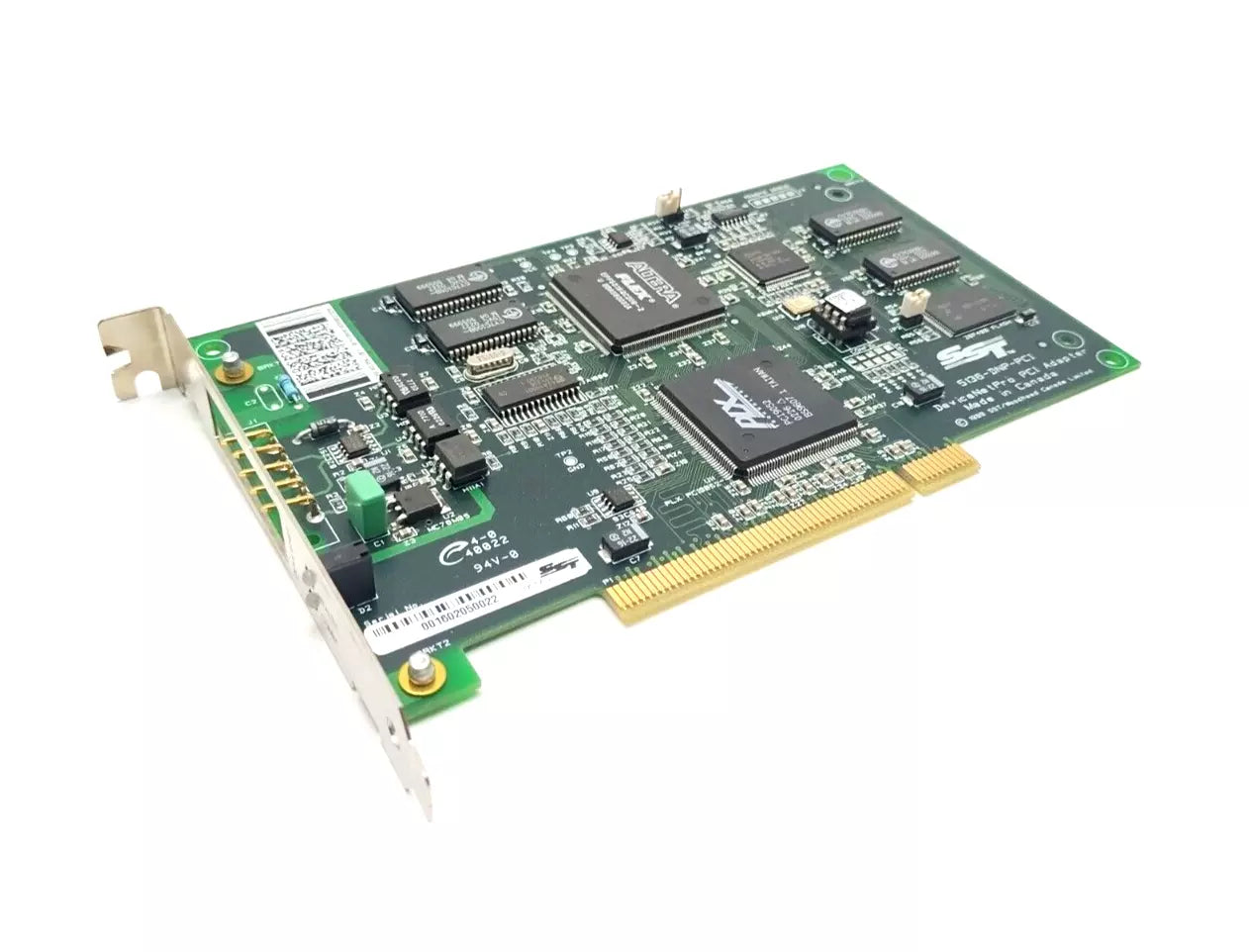

The 5136-DNP-PCI is a 32-bit PCI short card with a surface-mount design, compliant with PCI Specification 2.1. It comes equipped with 256 KB shared RAM, a 40 MHz processor, 512 KB RAM, and 512 KB flash memory, providing robust performance for data-intensive applications. This card supports standard PCI interrupts and includes a 5-pin DeviceNet connector as well as a network status LED indicator.

Key Features:

• High-Speed Performance: 40 MHz processor with dedicated RAM and Flash

• Wide Compatibility: CAN 2.0A support, all DeviceNet data rates (125, 250, 500 Kbaud)

• Industrial Resilience: Operates in temperatures from 0 to 50°C; storage -25 to 70°C

• Electrical Isolation: 500 V optically isolated CAN interface for safer operation

• Plug & Play Ready: Driver and indicator support for rapid deployment

• Scalability: Supports multiple card configurations per host

The 5136-DNP-PCI is ideal for industrial control systems requiring DeviceNet integration and CAN communication under demanding conditions.
