Description

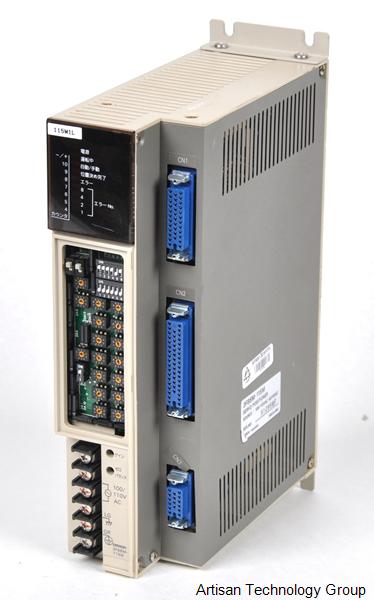

The Omron 3F88M-115M Servo Positioner Drive is an AC-powered motion control unit designed to provide precise servo positioning and synchronization for industrial automation systems. Operating on 100/110 VAC at 50/60 Hz, it delivers smooth, accurate control of servo motors for indexing, cutting, and assembly applications. Though discontinued by the manufacturer, the 3F88M-115M remains a reliable legacy solution for servo-based positioning control in Omron motion systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Motion Control Equipment |
| Part Number |
3F88M-115M |
| Subcategory |
Servo Positioner Drives |
| Series |
3F88M Series |
| Type |
Servo Control Positioner |
| Supply Voltage |
100/110 VAC |
| Frequency |
50/60 Hz |
| Control Type |
Servo Positioning / Motion Control |
| Input Signal |
Pulse Train / Encoder Input (model dependent) |
| Output Type |
Servo Motor Drive Signal |
| Motion Functions |
Indexing, Positioning, Synchronization |
| Communication |
Parallel or Serial Interface (depending on system) |
| Feedback |
Encoder Feedback (Closed Loop) |
| Power Output |
Model dependent (sized for Omron servo systems) |
| Mounting Type |
Panel Mount |
| Protection Features |
Overload, Overvoltage, Overheat Protection |
| Indicators |
Power and Status LEDs |
| Enclosure |
Industrial Metal Housing |
| Operating Temperature |
0°C to 55°C |
| Storage Temperature |
-20°C to 70°C |
| Application |
Machine Tools, Packaging, Robotics, Indexing Tables |
| Country of Origin |
Japan |
| Weight |
Approx. 2.2 lbs (1.0 kg) |
Information About 3F88M-115M
The 3F88M-115M is part of the Omron 3F88M Series, a line of dedicated positioner drives engineered for precise motion control in industrial automation. Designed for integration with Omron servo motors and PLCs, this model provides programmable motion sequencing and feedback-based positioning through encoder or pulse-train inputs. It supports various motion profiles and synchronization modes, offering flexibility for applications requiring accurate start, stop, and rotational control. Operating from a 100/110 VAC single-phase supply, the 3F88M-115M features compact design, stable servo regulation, and dependable performance for legacy control systems.
Key Features:
- Precision Servo Positioning: Provides high-accuracy control for rotary or linear motion systems.
- AC Power Operation: Runs on 100/110 VAC, 50/60 Hz, suitable for legacy power systems.
- Integrated Position Control: Combines pulse-train input and servo feedback for closed-loop accuracy.
- Programmable Motion Profiles: Supports indexing, continuous rotation, and synchronized control.
- Compact Design: Easy panel mounting for space-constrained control cabinets.
- Omron Compatibility: Interfaces directly with Omron PLCs and servo motor systems.
- Stable, Reliable Operation: Proven performance in industrial environments with legacy equipment.
- Discontinued Model: Commonly used for maintenance, repair, and retrofit in existing Omron servo setups.
The 3F88M-115M delivers the reliability and precision required for coordinated servo control and machine positioning in automation and motion control systems.
