Description

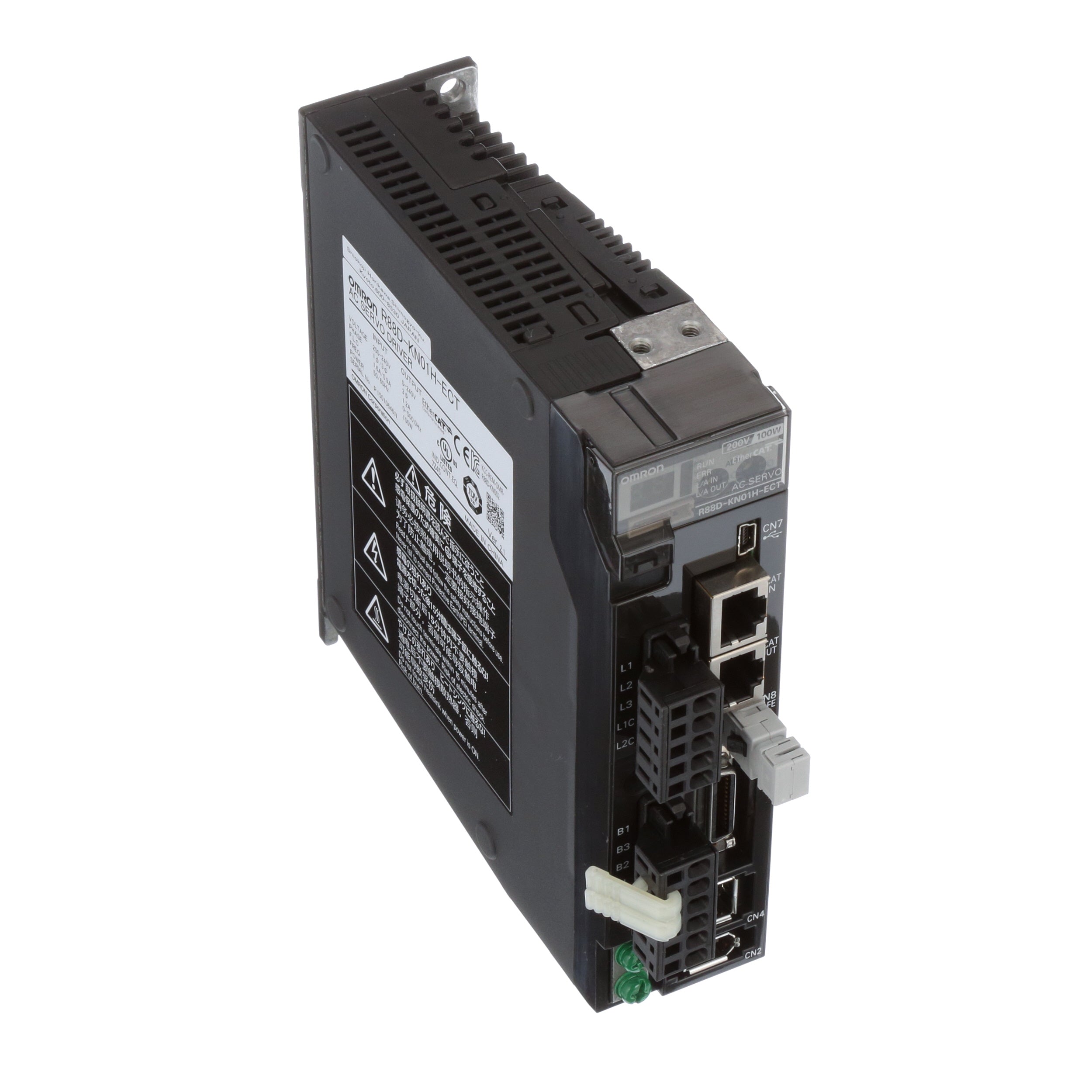

The R88D-KN01H-ECT is a compact 100 W servo drive from Omron’s G5 Series, designed for EtherCAT-based motion control systems. It supports both single-phase and three-phase 200 VAC input and offers high-speed, high-precision motor operation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
R88D-KN01H-ECT |
| Subcategory |
Variable Frequency Drives |
| Series |
G5 |
| Drive Type |
Network |
| Servomotor Capacity |
100 W |
| Power Supply |
200 VAC |
| Input Phase |
Single/Three |
| Network Type |
EtherCAT |
| Continuous Output Current |
1.2 Amps |
| Heat Dissipation |
14.3 Watts |
| Weight |
0.8 kg |
| Dimensions |
150 x 40 x 132 mm |
| Operating Temperature |
0 to 55 °C |
| Atmosphere |
No Corrosive Gases |
| Protective Structure |
Built into Panel |
Information About R88D-KN01H-ECT
The R88D-KN01H-ECT belongs to Omron’s G5 Series of servo drives, developed for advanced motion control over EtherCAT networks. It provides a continuous output current of 1.2 A, making it ideal for compact servo motors rated at 100 W. The drive accommodates either single-phase or three-phase 200 VAC input, allowing for installation flexibility in a variety of control architectures. With a heat dissipation of only 14.3 W, it enables efficient thermal management even in densely packed control panels. The drive’s compact footprint of 150 x 40 x 132 mm and light weight of 0.8 kg make it suitable for space-constrained equipment. Designed for enclosed environments, it features a panel-mounted protective structure and supports operation in temperatures up to 55 °C without exposure to corrosive gases.
Key Features:
- EtherCAT Network Interface: Enables high-speed, deterministic communication with Omron PLCs and motion controllers for synchronized multi-axis control.
- 100 W Motor Capacity: Optimized for light-load, high-precision applications in electronics assembly, inspection, or robotics.
- Flexible Input Phase: Accepts both single-phase and three-phase 200 VAC power, simplifying installation in various panel configurations.
- Compact Panel Mounting: Measures just 150 mm x 40 mm x 132 mm and installs directly into electrical cabinets with minimal space usage.
- Efficient Thermal Performance: Low heat dissipation of 14.3 W ensures cooler operation and reduces the need for forced ventilation.
- Continuous Output Current: Supports 1.2 A current for reliable continuous torque delivery in demanding motion tasks.
- Wide Operating Temperature: Operates safely between 0 °C and 55 °C, suitable for standard factory floor environments.
- Resilient Housing: Designed for indoor use in non-corrosive atmospheres, meeting industrial reliability requirements.
- Omron G5 Series Architecture: Shares hardware and software characteristics across the G5 family for consistent performance and reduced development time.
The R88D-KN01H-ECT delivers high-performance servo control in a compact and efficient form, perfectly suited for distributed automation systems requiring EtherCAT communication.
