Description

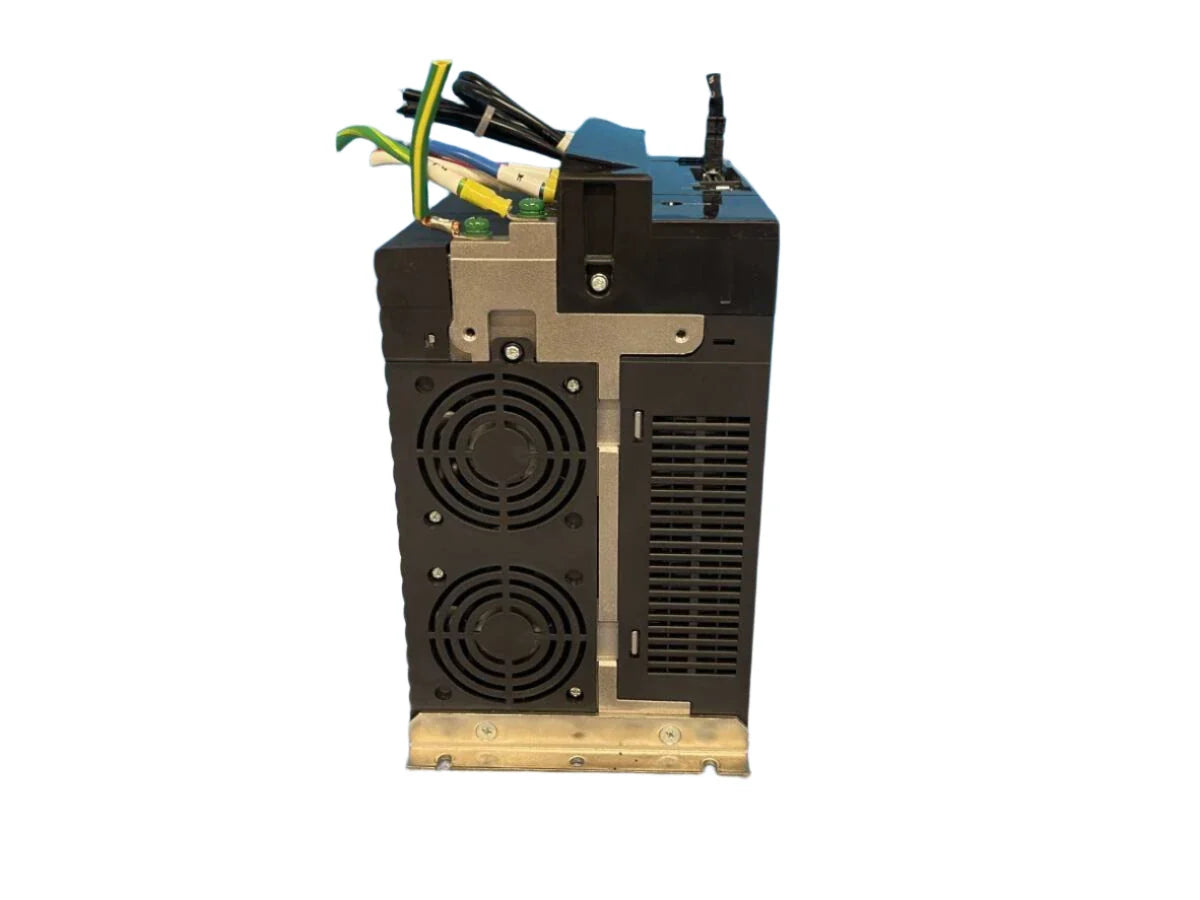

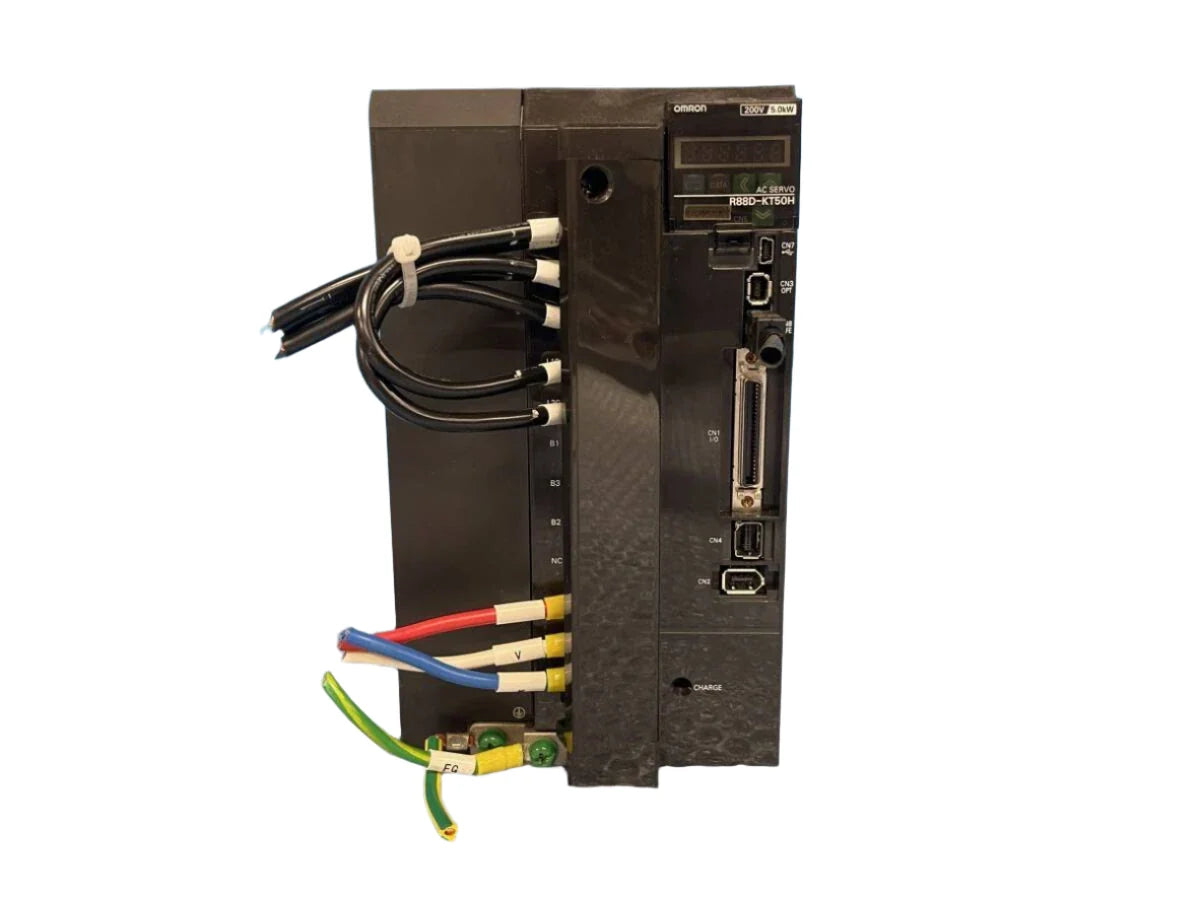

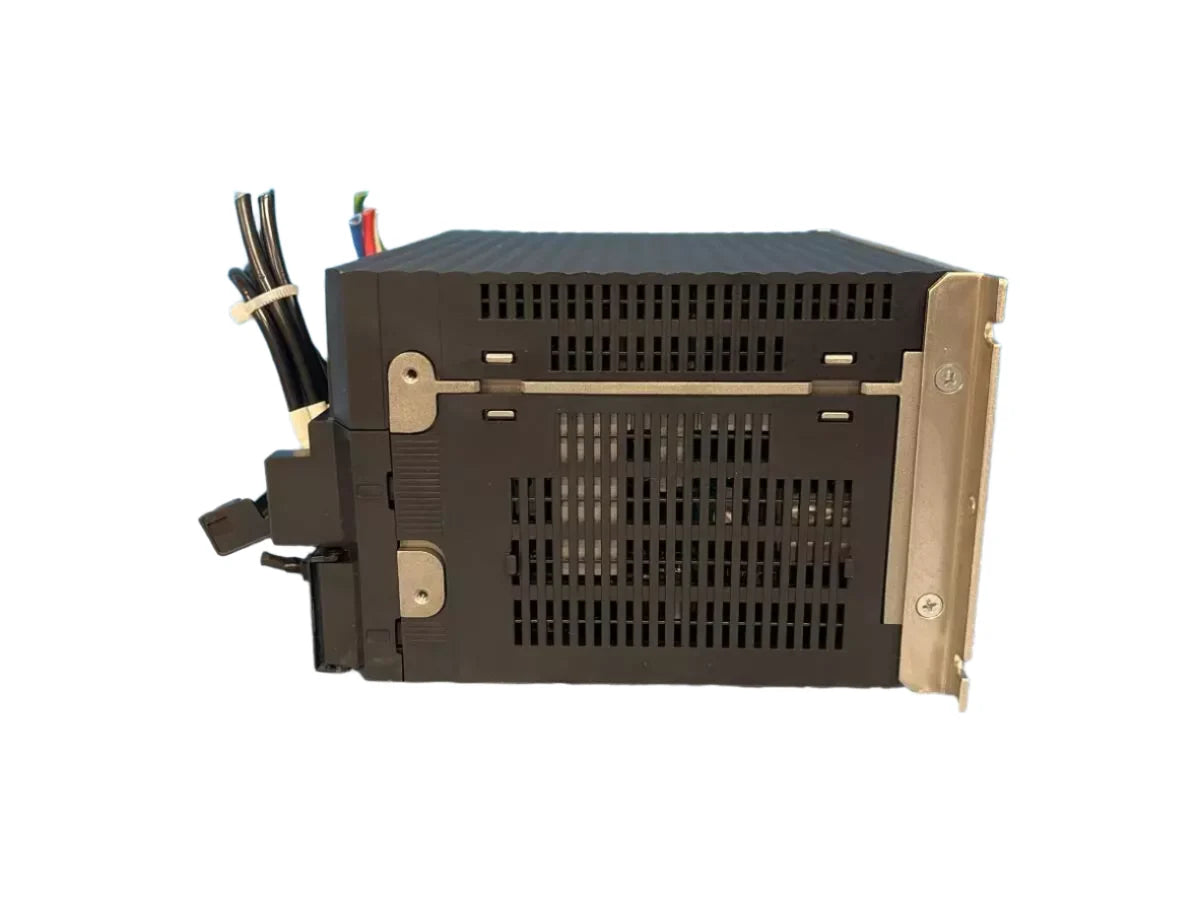

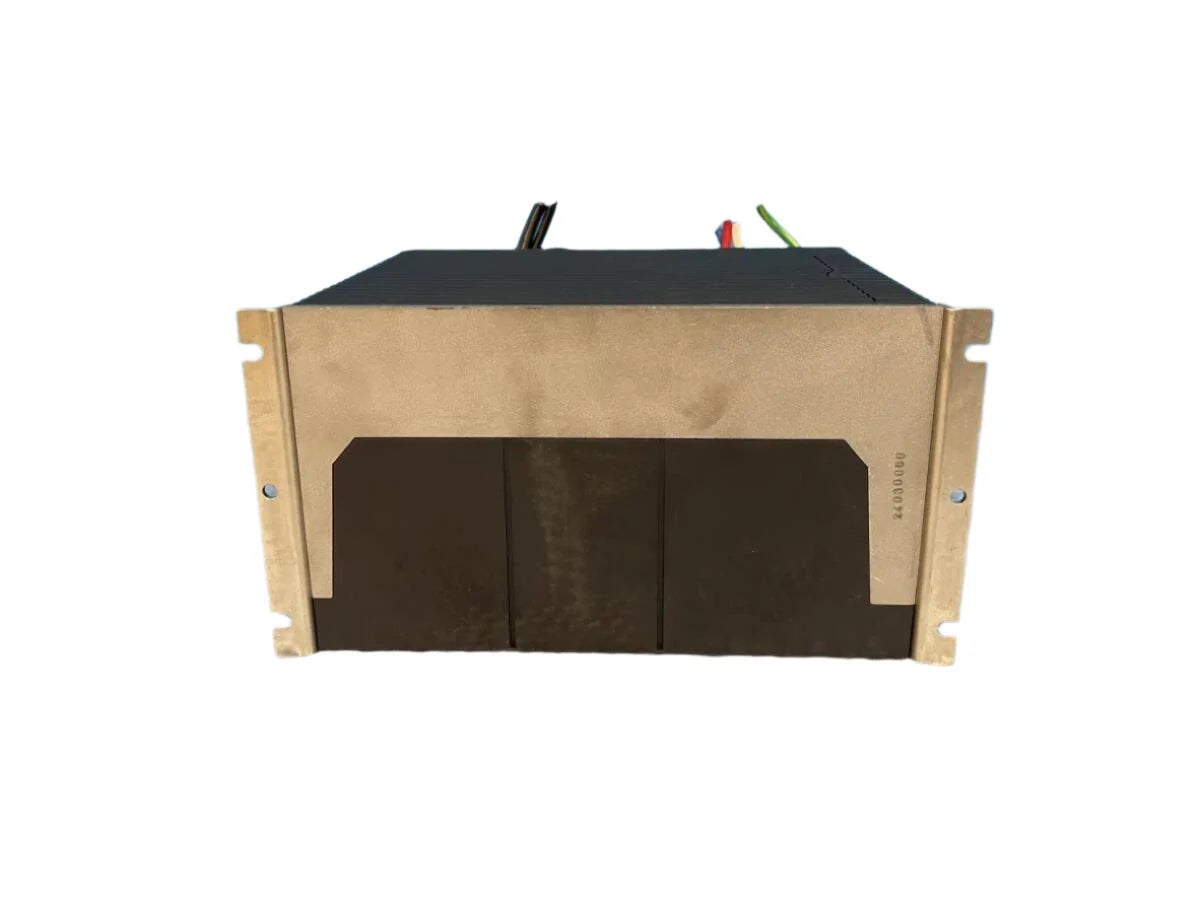

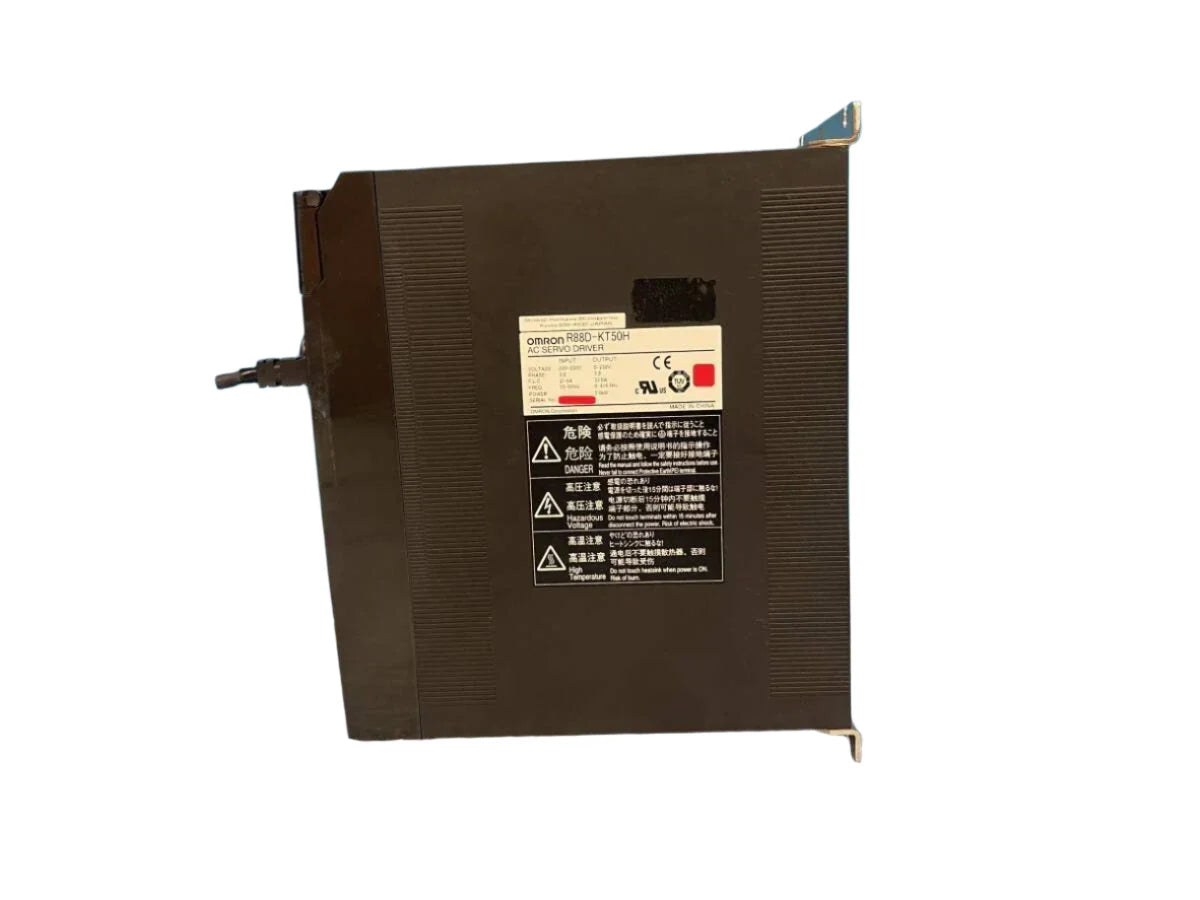

The R88D‑KT50H is a 5 kW AC servo drive from Omron’s Accurax G5 series, designed for high-performance and precise control of servo motors in demanding industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
R88D-KT50H |
| Subcategory |
Servo Drive/Servo Control |
| Motor Type |
Servo |
| Control/Drive Type |
Servo AC |
| Number of Motors |
1 |
| Input Voltage |
240 VAC |
| Operating Temperature |
0°C to 55°C |
| Storage Temperature |
-20°C to 65°C |
| Operating Humidity |
90% RH (non-condensing) |
| Cooling Method |
Natural Air |
| Protection Rating |
IP20 |
| Weight |
12.00 lbs |
Information About R88D-KT50H
The R88D-KT50H is a high-capacity AC servo drive from Omron’s Accurax G5 series, designed for precision control of 5 kW servo motors in demanding industrial automation environments. Supporting both pulse-train and analog control, it enables fast, accurate motion control for high-torque applications like robotics, packaging, CNC systems, and conveyor automation. With advanced tuning features and integrated safety, the R88D-KT50H ensures reliable, efficient operation in modern machine control systems.
Key Features:
- AC Servo Drive: Functions as a servo amplifier for controlling Omron G5 rotary servo motors in advanced motion applications.
- 5 kW Power Output: Delivers up to 5 kW (33 A) of continuous output power for driving large motors requiring high torque.
- 200–240 V Three-Phase Supply: Operates on standard 3-phase 200–240 VAC industrial input power.
- Pulse-Train / Analog Input Control: Supports both pulse-train and analog signal control, ensuring flexible integration into a wide range of control architectures.
- Advanced Motion Functions: Equipped with auto-tuning, vibration suppression, adaptive filters, and disturbance rejection for precise, stable operation.
- Safety Integration: Includes integrated STO (Safe Torque Off) functionality certified to PLc/d, SIL2, EN61800-5-2 standards.
- Chassis-Mount Design: Compact form factor for direct mounting inside industrial control cabinets.
- IP20 Enclosure: Standard dust-protected indoor-rated housing suitable for controlled environments.
- Industrial Interfaces: Features serial and USB connectivity for setup, parameter configuration, and diagnostics.
- Robust Protection Functions: Built-in overvoltage, overcurrent, short-circuit, overheat, and EMC protections ensure safe, reliable operation.
The R88D-KT50H servo drive combines high power output, precise control, and advanced safety features to deliver reliable performance in high-demand industrial environments. Its flexible control interfaces and advanced motion functions make it ideal for driving large motors in automated machinery requiring fast, smooth, and accurate operation.
