Description

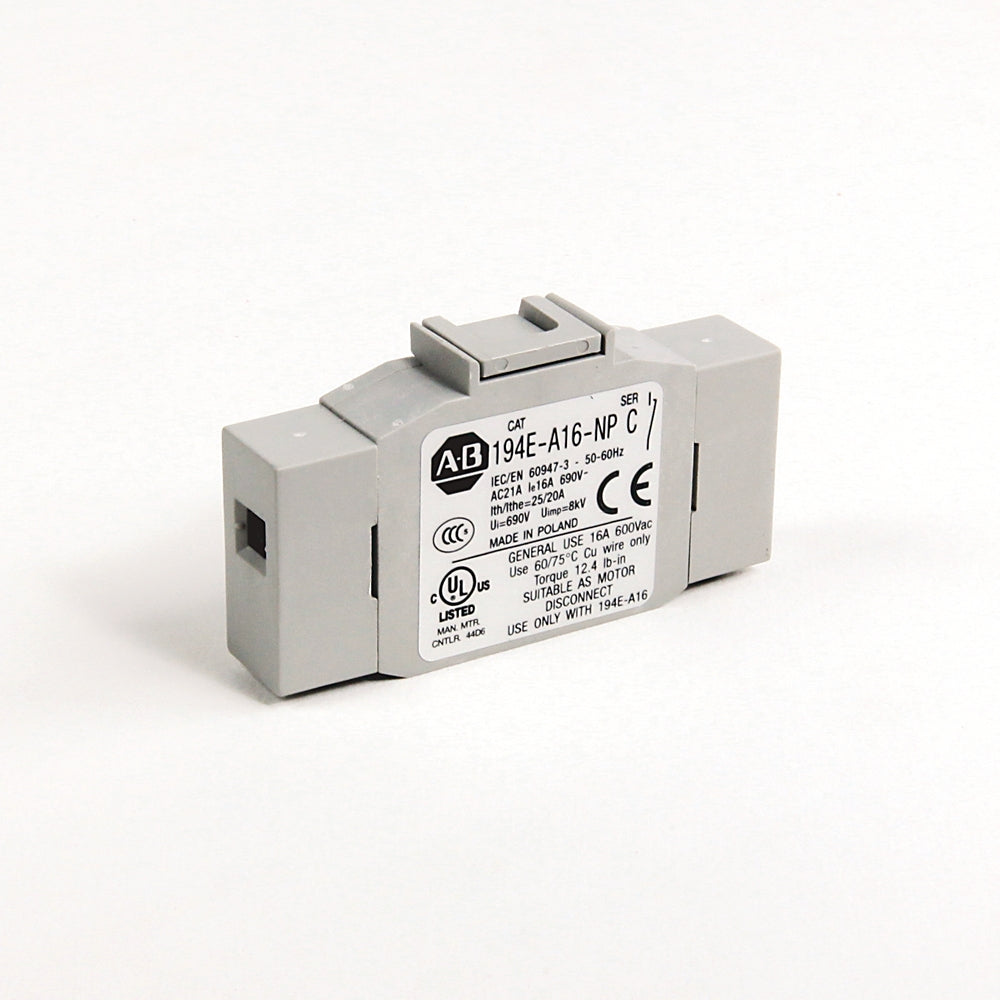

The Allen-Bradley 194E-A16-1753 is a 16A, 3-pole load switch from the 194E series, designed for manual motor control and circuit isolation. It features a compact design, rotary operation, and is suitable for applications up to 690V AC, offering reliable performance in industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
|
| Part Number |
194E-A16-1753 |
| Subcategory |
|
|
|
Select Actuator Separately |
| Connection Type |
Screw |
| Enclosure Type |
Open |
|
Mounting Type
|
Ground
|
|
Size
|
|
|
Amperage
|
|
|
Load Rating
|
|
|
Number of Poles
|
|
|
Standard
|
|
|
Housing Material
|
|
|
Weight
|
|
Information About 194E-A16-1753
The Allen-Bradley 194E-A16-1753 is a 16-ampere, 3-pole load switch designed for industrial applications requiring reliable circuit isolation and manual motor control.
Key Features:
-
Rated Operational Voltage (Ue): Up to 690V AC
-
Continuous Current Rating (Ith): 16 A
-
Motor Power Ratings:
-
Single-phase (AC-3):
-
Three-phase (AC-3):
-
240V: 3 HP
-
480V: 7.5 HP
-
600V: 10 HP
-
Short-Circuit Current Rating: 5 kA
-
Mounting Style: Base/DIN rail mounting
-
Switching Configuration: 2-position OFF-ON with a 90° switching angle
-
Handle Compatibility: Compatible with various handle types, including Type N (yellow/red, 48mm x 48mm, IP66 protection)
-
Safety Features:
-
Additional Poles: Provision for adding a 4th pole (neutral)
-
Auxiliary Contacts: Options for early break auxiliary contacts
-
Terminal Covers: Available for enhanced protection
-
Earth and Neutral Terminals: Optional add-ons for specific application requirements
This load switch is suitable for use as a local motor isolator and disconnect switch in various industrial environments, offering flexibility and reliability in motor control applications.
