Description

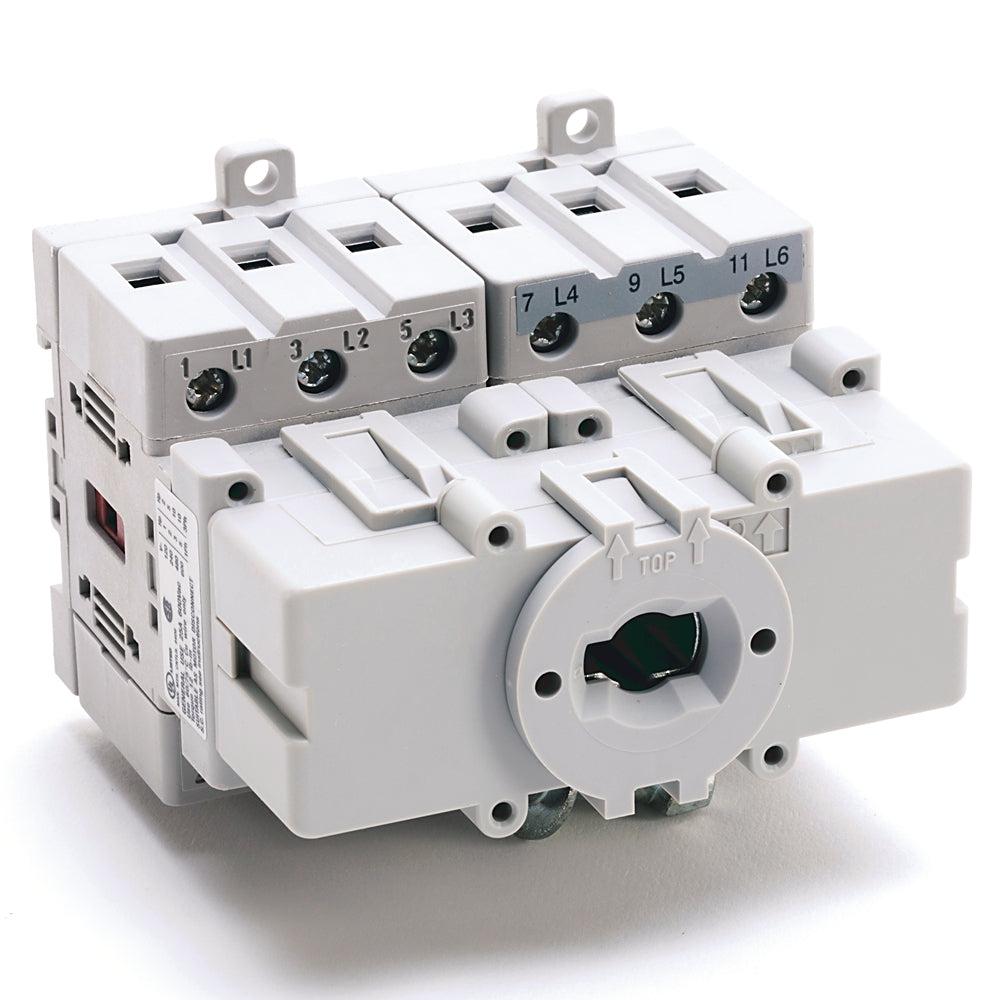

The Allen-Bradley 194E-A25-1753-6N is a 25 Amp IEC load switch with a variable position knob actuator, designed for reliable manual disconnection of electrical circuits in industrial control systems.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
Sensors |
| Part Number |
194E-A25-1753-6N |
| Subcatecory |
|
| Actuator Type |
Type N Red/Yellow (Variable Position Knob) |
| Amperage |
25 Amp |
| Load Rating |
7.5 kW at 400 VAC (3-phase) |
| Number of Poles |
3 Pole |
| Connection Type |
Screw Terminals |
| Mounting Type |
Ground Mount |
| Enclosure Type |
Open |
| Standards Compliance |
CCC, CE, CSA, KC, UL |
| Weight |
0.5600 lb |
Information About 194E-A25-1753-6N
The 194E-A25-1753-6N is part of Allen-Bradley’s 194E Series of IEC load switches, which are engineered for durability, safety, and ease of installation. Rated for 25 A and 7.5 kW at 400 VAC (3-phase), this 3-pole switch provides dependable circuit isolation in control panels and machinery. It is supplied with a red/yellow Type N actuator that allows for clear visual indication of the switch position, ideal for emergency stop or lockout/tagout operations.
Key Features:
-
25 A Rated Current: Suitable for motor loads and power switching up to 7.5 kW at 400V AC.
-
3-Pole Configuration: Provides full-phase disconnection for 3-phase systems.
-
Red/Yellow Type N Actuator: Enhances safety with visual position indication for ON/OFF states.
-
Open Enclosure Format: Ideal for integration into OEM panels or custom-built control cabinets.
-
Screw Terminal Connection: Ensures secure and straightforward wiring for industrial environments.
The 194E-A25-1753-6N is ideal for industrial applications requiring compact and reliable load switching with clear visual status and international certification.
