Description

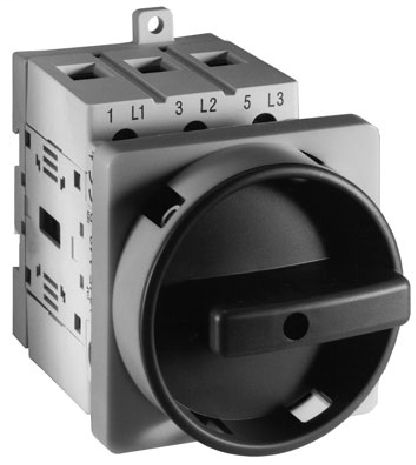

The Allen-Bradley 194E-A40-1753 is a 3-pole, 40-amp load switch designed for use in compact industrial control panels and motor disconnect applications. This open-type base/DIN rail mount switch features a variable position knob interface and supports inductive loads up to 15 kW at 400 VAC-3.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
194E-A40-1753 |
| Subcatecory |
|
| Series |
194E |
| Amperage |
40 Amp |
| Voltage Rating |
400 VAC-3 |
| Load Rating |
15 kW |
| Number of Poles |
3 Pole |
| Actuator |
Select Separately |
| Enclosure Type |
Open |
| Mounting Type |
Ground / DIN Rail |
| Terminal Type |
Screw Terminals |
| Switch Type |
Variable Position Knob |
| Certifications |
CCC, CE, CSA, KC, UL |
| Weight |
1.9200 lb |
Information About 194E-A40-1753
The 194E-A40-1753 is part of the Allen-Bradley 194E Series of small-frame load switches and is suitable for isolating and controlling motor and electrical loads in industrial environments. With a 3-pole configuration and open enclosure design, it is ideal for integration within OEM and control cabinet assemblies.
Key Features:
- Type: Variable position knob load switch for compact motor isolation applications
- Series: Allen-Bradley 194E small-frame load switch series
- Amperage Rating: Rated for 40 amps continuous current handling
- Poles: 3-pole configuration for 3-phase load switching
- Load Rating: Supports up to 15 kW at 400 VAC-3 for inductive loads
- Enclosure Type: Open type for integration into enclosed control panels
- Mounting Style: Ground/base or DIN rail mounting for flexible installation
- Connection Type: Screw terminals for reliable, tool-secured wiring
- Actuator Configuration: Actuator sold separately for custom interface selection
- Certifications: CCC, CE, CSA, KC, and UL for global industrial compliance
The 194E-A40-1753 provides high-performance load switching in compact panels, offering secure, customizable operation with 40A capacity and full 3-phase compatibility.
