Description

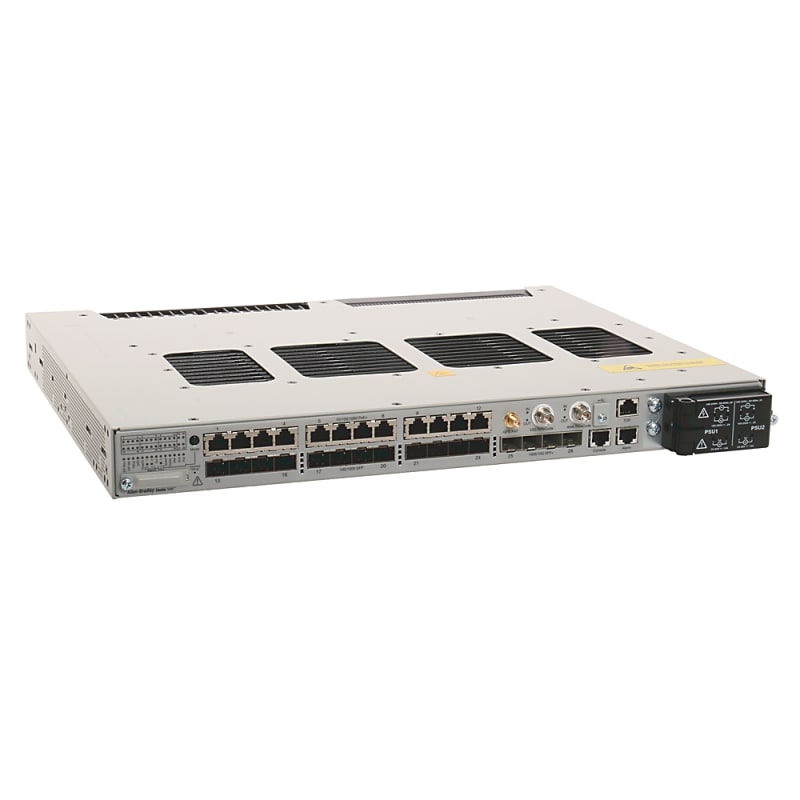

The 1783-IMS28RAC is a high-performance Stratix 5410 Industrial Ethernet Switch by Allen-Bradley, designed for distribution-layer networking in industrial environments. It features 28 ports, including 12 PoE RJ45 ports, 12 SFP slots, and 4 SFP+ 10-Gigabit Ethernet ports, making it ideal for high-density and high-speed applications.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
1783-IMS28RAC
|
| Subcatecory |
|
| Series |
Stratix 5410 |
| Total Ports |
28 |
| RJ45 Copper Ports |
12 x 10/100/1000 PoE |
| SFP Slots |
12 x 100/1000 Base SFP |
| SFP+ Slots |
4 x 10-Gigabit Ethernet |
| Layer |
Layer 3 Routing |
| PoE Budget |
60W (1 PSU) / 185W (2 PSUs) |
| Mounting Options |
DIN Rail / 19” Rack Mount |
| Weight |
14.51 kgs |
Information About 1783-IMS28RAC
The 1783-IMS28RAC is part of the Stratix 5410 series of industrial Ethernet switches. This model is a Layer 3 managed switch with support for advanced features such as Network Address Translation (NAT), Precision Time Protocol (IEEE 1588), and dynamic routing. It comes with a single AC/high-voltage DC power supply, and an optional second power supply can be added to increase PoE/PoE+ output capacity up to 185W.
Key Features:
-
Flexible Port Configuration: Includes 12 x 10/100/1000 PoE copper RJ45 ports, 12 x 100/1000 SFP slots, and 4 x 10-Gigabit Ethernet SFP+ uplink slots.
-
Layer 3 Routing: Supports static and dynamic routing protocols for complex network topologies.
-
High PoE/PoE+ Power Budget: One PSU provides 60W; two PSUs support up to 185W total for PoE devices (power availability may limit number of active PoE ports).
-
NAT & IEEE 1588 Support: Enables seamless integration in control systems with precision time synchronization.
-
Rugged Industrial Design: Designed for demanding environments with DIN rail and rack mounting options.
The 1783-IMS28RAC is ideal for high-throughput, high-resiliency industrial networks that require advanced routing and real-time control features.
