Description

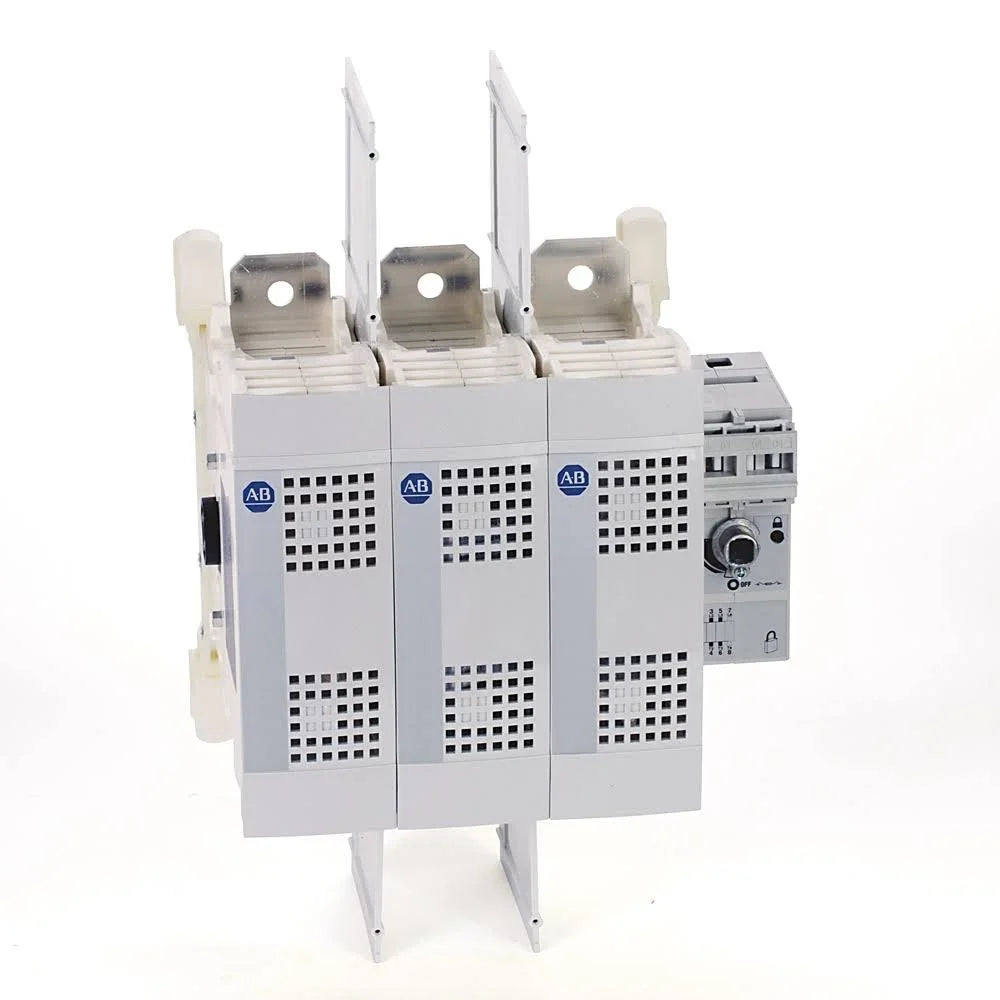

The Allen-Bradley 194R-J400-1753 is a 400-amp, 3-pole fused rotary disconnect switch from the Bulletin 194R series, designed for industrial applications requiring reliable circuit isolation and protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
Panel Accessories |
| Part Number |
194R-J400-1753
|
| Subcategory |
Disconnect Switch
|
|
Actuator
|
Rotary |
| Applications |
For J Fuses |
|
|
400A |
| Fuse Type |
|
| Number of Poles |
3 Pole |
| Standard |
KC |
| Voltage |
|
| Amperage |
400 Amp |
| Connection Type |
Screw |
|
Enclosure
|
Open Type |
| Mounting Type |
4-Hole Front |
| Split Crucible |
S |
| Type |
Long Turning Handle, Fused |
| Weight |
12.70 lbs |
Information About 194R-J400-1753
The Allen-Bradley 194R-J400-1753 is a 400-amp, 3-pole fused rotary disconnect switch from the Bulletin 194R series, designed for industrial applications requiring reliable circuit isolation and protection. It accommodates UL Class J or CSA HRCI-J fuses and is rated for up to 600 VAC and 250 VDC. This open-type switch features a compact, touch-safe design, supports front or side operation, and allows for OSHA-compliant padlocking. It is suitable for both service entrance and motor disconnect applications, offering a high short-circuit rating of up to 200 kA.
Key Features:
-
Current Rating: 400 A
-
Voltage Rating: 600 VAC / 250 VDC
-
Poles: 3
-
Fuse Type: UL Class J / CSA HRCI-J
-
Mounting: Panel-mounted (open type)
-
Operation: Rotary handle (front or side)
-
Short-Circuit Rating: Up to 200 kA
-
Certifications: UL 98, UL 508, CSA, CE, IEC 60947-3
This disconnect switch is engineered for durability and safety in demanding industrial environments, providing reliable performance and compliance with global standards.
