Description

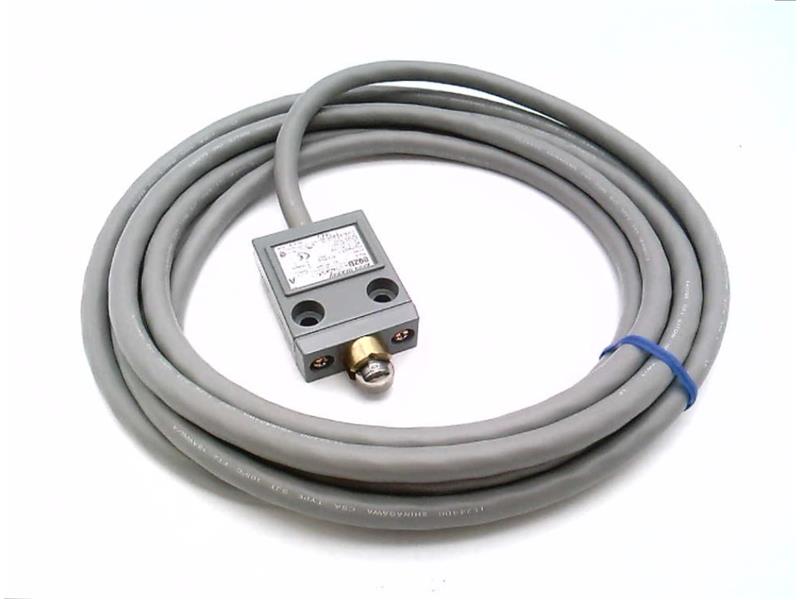

The Allen-Bradley 802B-CSADXSXC3 is a compact limit switch designed for precise position detection in industrial automation applications. Featuring a top push roller actuator and snap action contacts, it offers reliable operation in environments requiring durable and compact switching solutions.

Technical Specifications

Information About 802B-CSADXSXC3

The 802B-CSADXSXC3 belongs to Allen-Bradley’s 802B Compact Limit Switch series, known for their rugged design and high-performance operation. This model features a top push roller actuator that activates through direct contact, making it ideal for detecting linear or mechanical motion in automation and machine safety applications.

Key Features:

• Type: Compact limit switch with metal housing for industrial applications
• Actuator Style: Top push roller for linear mechanical detection
• Switch Action: Snap action mechanism for fast and reliable switching
• Contact Configuration: 1 NO + 1 NC with B300 contact rating
• Wiring: Preleaded 3-meter cable for quick and flexible installation
• Mounting Options: Supports both vertical and side mounting
• Enclosure Material: Rugged metal housing for long-term reliability
• Operating Temperature: Ranges from -10°C to 70°C for industrial environments
• Standard Compliance: CE, CSA, CUL, KC, and UL approved
• Application: Ideal for position sensing in machinery, conveyors, and automated equipment

The 802B-CSADXSXC3 delivers compact, robust, and precise position sensing with a high-performance snap action contact system for demanding industrial environments.
