Description

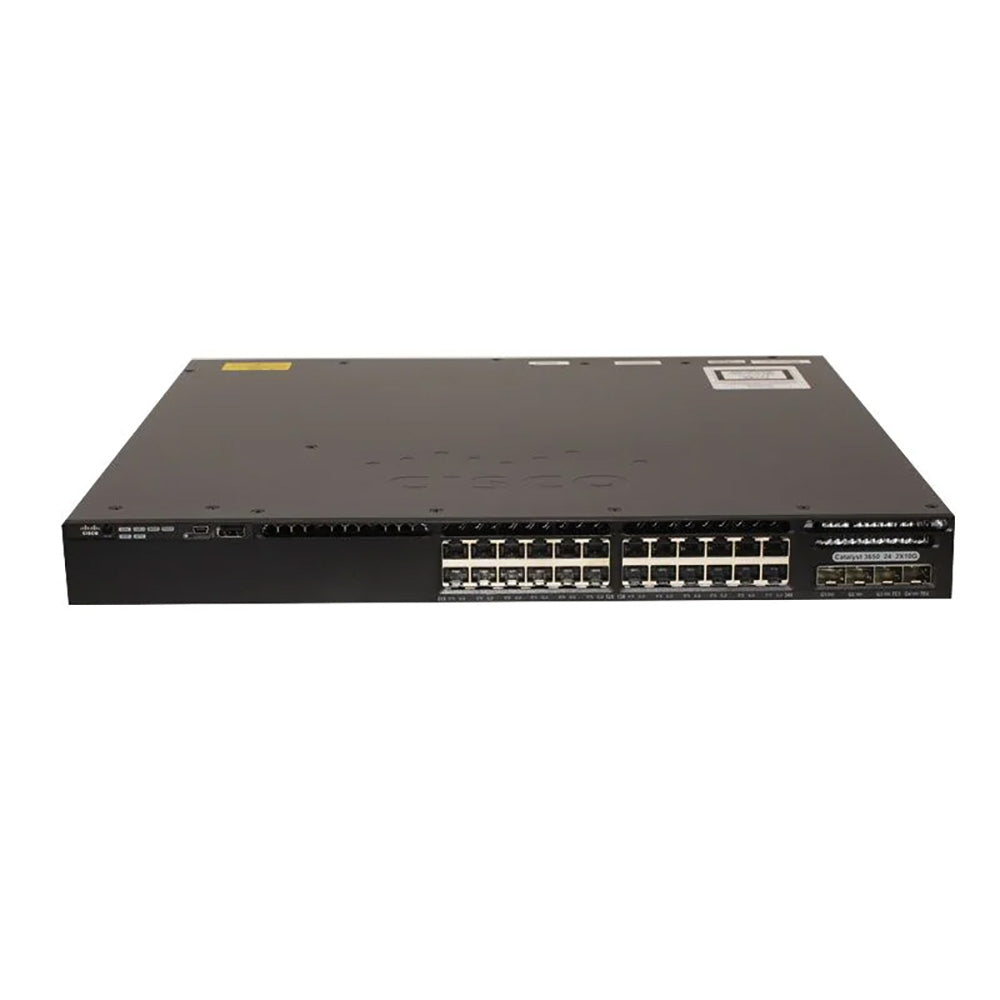

Catalyst 3650 24TD-L Switch Overview
The Cisco Catalyst WS-C3650-24TD-L is a high-performance stackable switch from the 3650 Series, featuring Cisco StackWise-160 Technology that allows stacking of up to 9 switches with 160 Gbps stack bandwidth. This switch integrates 24 x 10/100/1000 Ethernet ports and offers flexible uplink options with 2 x 10G SFP+ or 4 x 1G SFP interfaces, all within the LAN base feature set. Designed for enterprise environments, it provides reliable GigE Ports and high-speed SFP+ Uplink for seamless connectivity. With a 1U form factor, the WS-C3650-24TD-L is rack-mountable, providing easy installation and space-saving solutions. It delivers 68.45 Mpps forwarding performance and 88 Gbps switching capacity, ensuring efficient network traffic handling. Equipped with 4 GB RAM and 2 GB flash memory, it supports up to 50 APs and 1000 wireless clients per switch or stack. Shop Cisco Switch models like the WS-C3650-24TD-L to experience advanced LAN Base functionality, 10 Gigabytes connectivity, and powerful SFP+ Uplink support in a rack-mountable design.
Recommended modules and accessories
Models |
Description |
| C3650-STACK-KIT | Cisco Catalyst 3650 Stack Module Spare |
| L-C3650-24-L-E | C3650-24 LAN Base to IP Services Electronic RTU License |
| L-C3650-24-L-S | C3650-24 LAN Base to IP Base Electronic RTU License |
| PWR-C2-250WAC | 250W AC Config 2 Secondary Power Supply |
| CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| CAB-CONSOLE-USB | Console Cable 6 ft with USB Type A and mini-B |
Compare to Similar Items
Models |
WS-C3650-24TS-L |
WS-C3650-24TD-L |
| Feature Set | LAN Base | LAN Base |
| Uplink Interfaces | 4 x 1G SFP uplink ports | 2 x 10G SFP+ OR 4 * 1G SFP uplinks |
| Ports | 24 x 10/100/1000 Ethernet ports | 24 x 10/100/1000 Ethernet ports |
Specifications
WS-C3650-24TD-L Specification |
|
| Model info | WS-C3650-24TD-L |
| Enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 + 2 x 10G SFP+ |
| Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | None |
| Switching Capacity | 88Gbps |
| Maximum stacking number | 9 |
| Stack Bandwidth | 160Gbps |
| Forwarding Performance | 68.45Mpps |
| FNF entries | 24000 |
| Maximum VLANs IDs | 4,094 |
| Maximum VLANs IDs | 32K |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 2 G |
| Number of AP per switch/stack | 50 |
| Number of wireless clients per switch/stack | 1000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 20Gbps |
| Supported Aironet AP series | 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | power redundant slot |
| Accessory & Rack Moubt Kits | ●ACC-KIT-T1: Accessory kit●RACK-KIT-T1: Rack mount kit ●4PT-KIT-T1:Extension rails and brackets for four-point mounting |
| Stacking module & cable | ●C3650-STACK-KIT: Stack Module ●STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length ●STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length ●STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length |
| Power supply | PWR-C2-640WAC |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 100V-240V |
| Power Consumption of standalone (in Watts) | 70.1 (max) |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 17.5 Inches (44.5 cm) |
| Height | 1.73 Inches (4.4 cm) |
| Shipping Weight | 17.49 Kg |
| Rack Mounting Kit | optional |
| MTBF in hours | 661,800 |
| Compliant Standards |
●IEEE 802.1D Spanning Tree Protoco ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN● IEEE 802.1s ● IEEE 802.1w● IEEE 802.1X ● IEEE 802.1X-Rev●IEEE 802.11 ● IEEE 802.1ab (LLDP)● IEEE 802.3ad ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports ● IEEE 802.3 10BASE-T● IEEE 802.3u 100BASE-TX ● IEEE 802.3ab 1000BASE-T● IEEE 802.3z 1000BASE-X ● RMON I and II standards● SNMP v1, v2c, and v3 |
| System software | IOS LAN Base (Upgradable) |
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| Access Point Licenses |
●L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery) ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) ●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) |
| features |
●EEM ● RPS Support ● IP service-level agreements (SLAs) ● Advanced IP unicast routing protocols ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow |
| Advanced Network security |
●Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) ● Bidirectional data support on a SPAN ● User authentication ● Private VLAN ●Router and VLAN ACLs ● complete identity and security ● Multidomain authentication ● MAC address notification ● IGMP filtering ● Cisco security VLAN ACL ● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) ● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae ● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs ● Bridge protocol data unit (BPDU) Guard ● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security |
| Management |
●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB ●CISCO-VTP-MIB ●EtherLike-MIB●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB |
| Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
|
With AC power supply Operating environment and altitude |
|
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
|
With DC power supply Operating environment and altitude (NEBS) |
|
| Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
| Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
| Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
| Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
| Operating altitude | Up to 16,400 Feet (Up to 5000m) |
| Storage altitude | Up to 16,400 Feet (Up to 5000m) |
| Operating relative humidity | 5% to 96% noncondensing |
| Storage relative humidity | 5% to 96% noncondensing |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF |
| Storage environment | -40ºF to 160ºF |
