Description

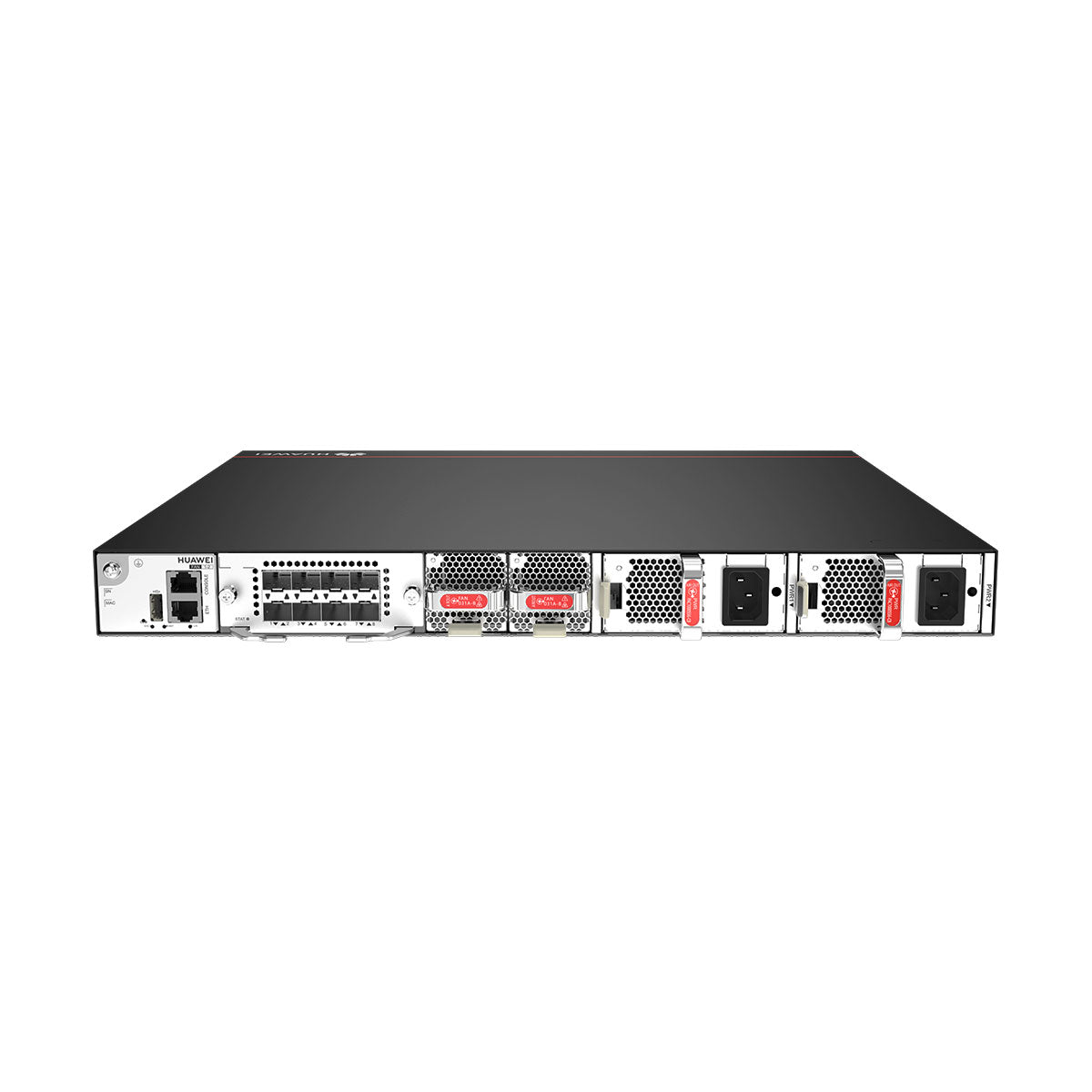

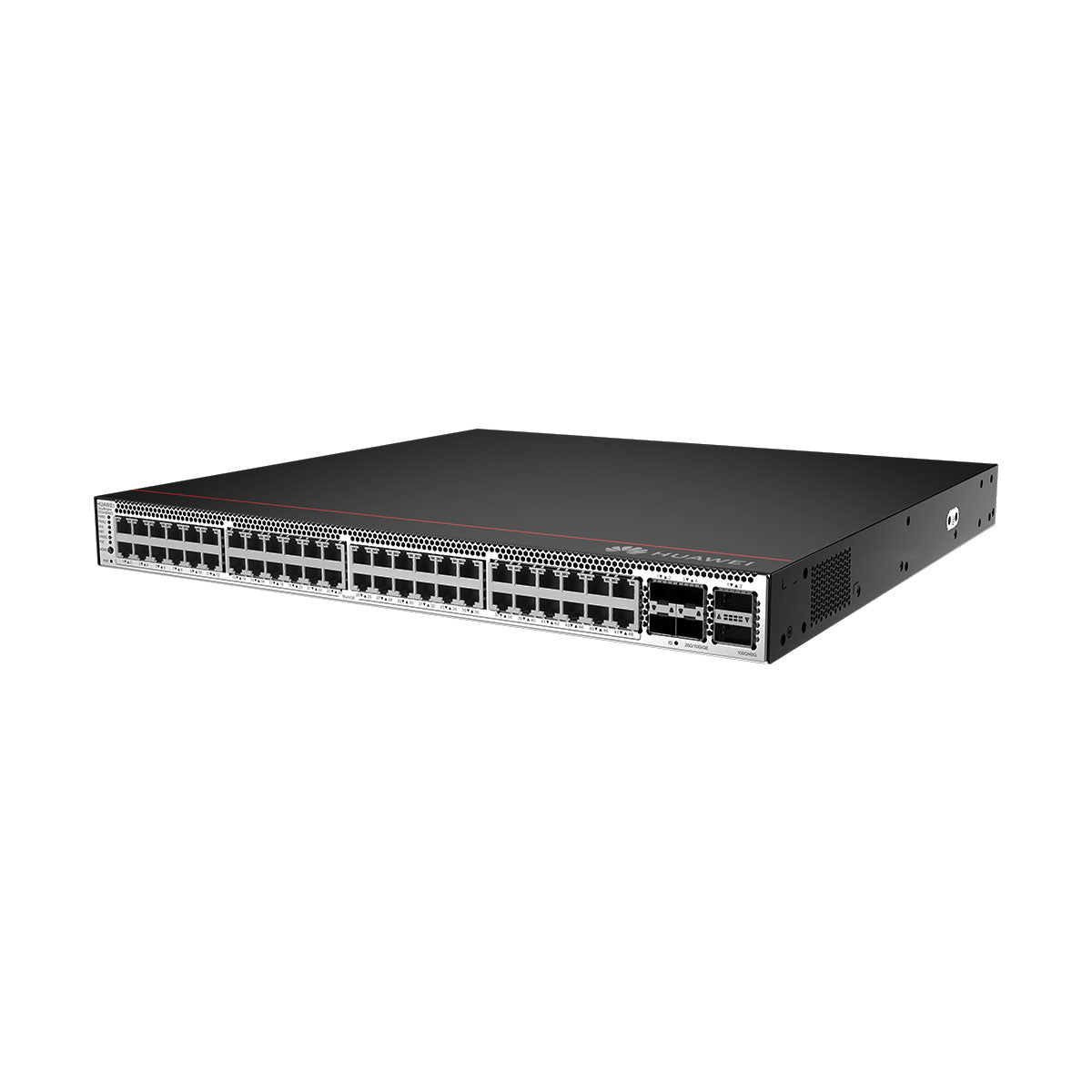

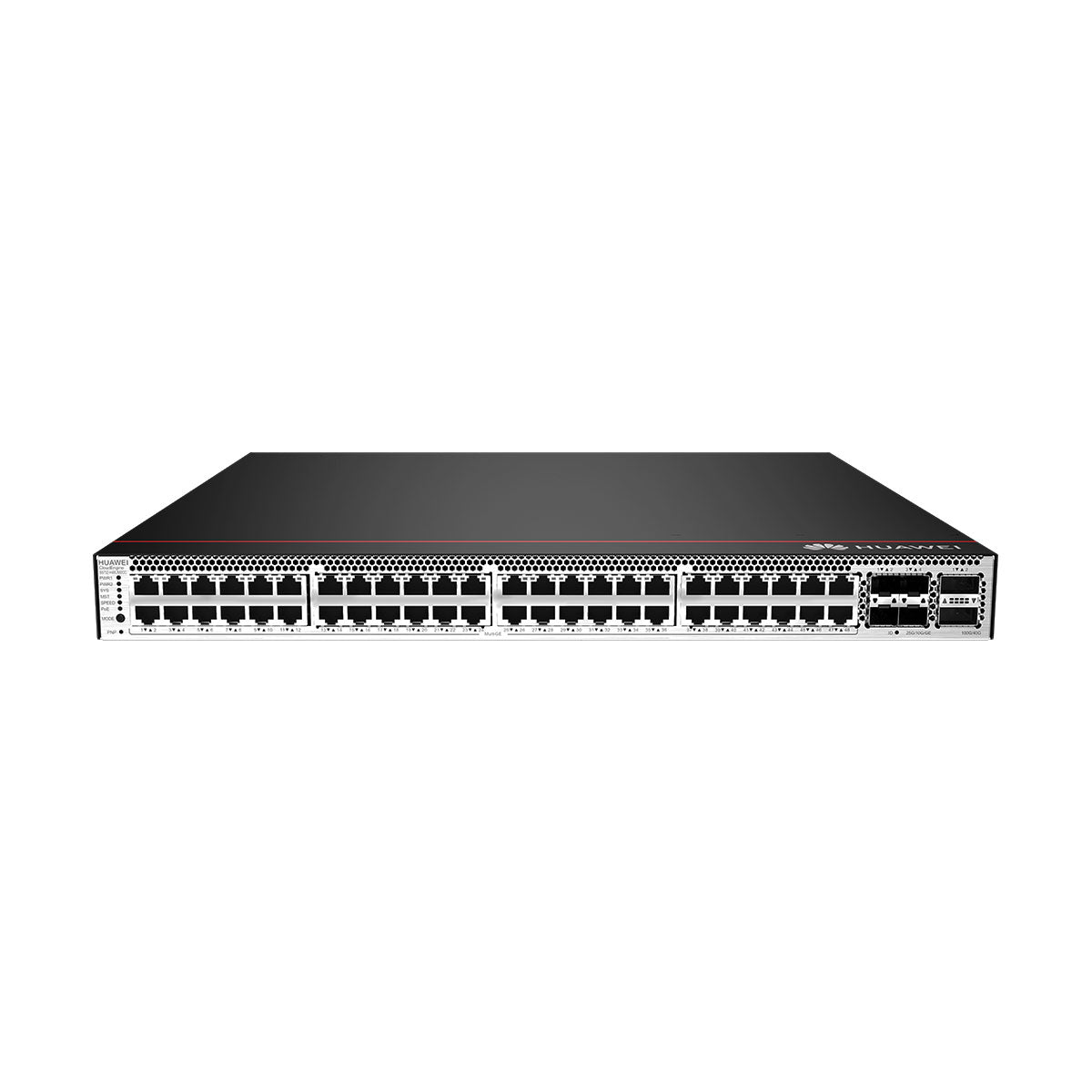

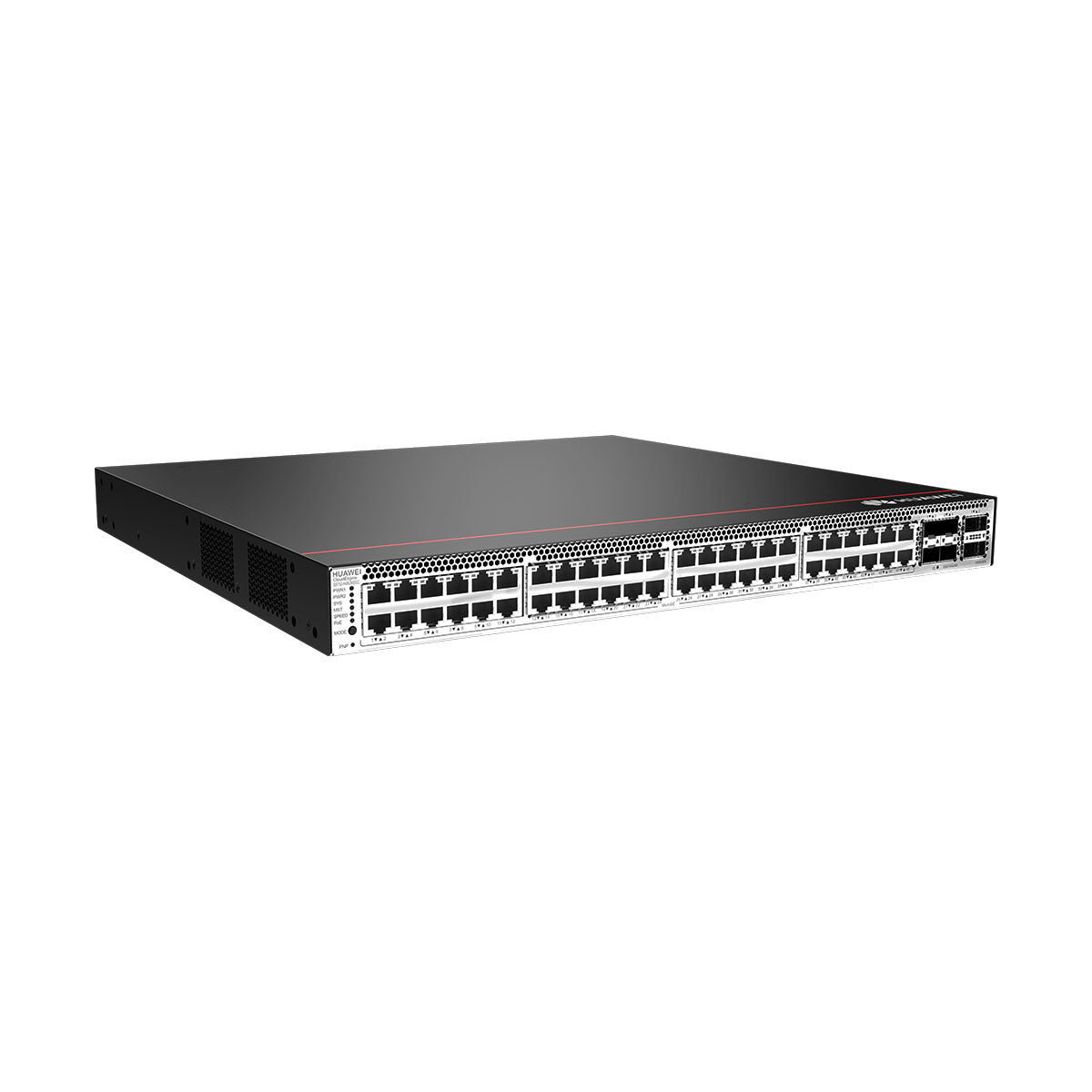

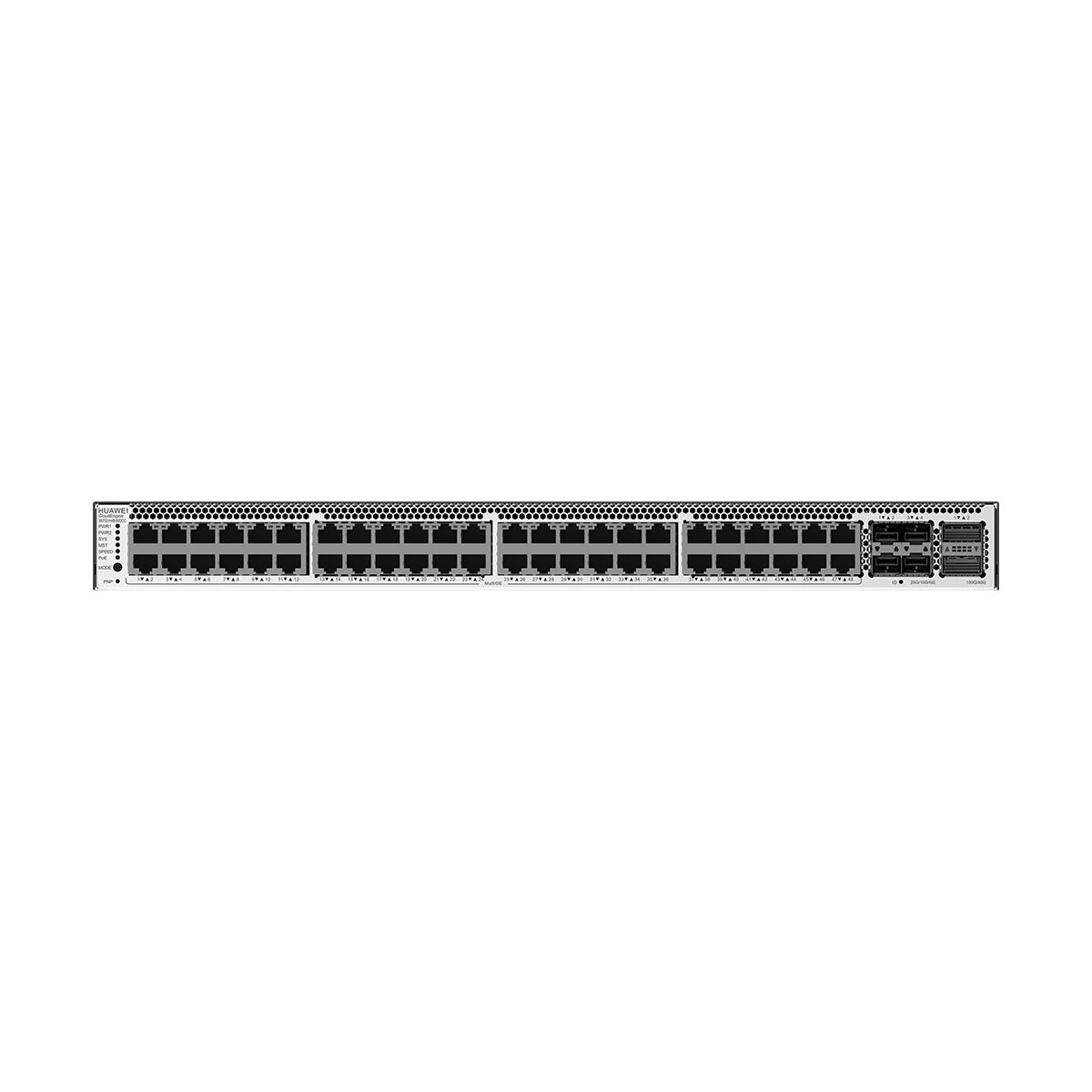

Huawei CloudEngine S5732-H48UM2CC Switches
The Huawei CloudEngine S5732-H48UM2CC is a next-generation, high-performance Layer 3 Multi-Gigabit Ethernet switch designed for enterprise campus networks and high-density Wi-Fi 6 deployments.
It offers 48 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 25GE SFP28 uplink ports, and 2 40GE or 2 100GE QSFP28 uplink ports, providing flexible deployment options and high-speed data transmission.
With a switching capacity of up to 2.4 Tbps and a forwarding rate of 490 Mpps, this switch ensures efficient data handling. It supports advanced features such as VXLAN, BGP EVPN, intelligent stacking (iStack), comprehensive security mechanisms, and energy-efficient design, making it a versatile solution for various networking needs.
Overview
Highlights
-
Port Configuration: 48 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 × 25GE SFP28 uplink ports, and 2 × 40GE or 2 × 100GE QSFP28 uplink ports.
-
High Performance: Switching capacity of up to 2.4 Tbps and forwarding rate of 490 Mpps ensure efficient data processing.
-
Advanced Layer 3 Features: Supports static routing, RIP, OSPF, BGP, IS-IS, and VXLAN for robust network routing capabilities.
-
Comprehensive Security: Features include 802.1X authentication, MAC address filtering, DHCP snooping, ARP inspection, and port isolation.
-
Intelligent Stacking (iStack): Supports stacking of up to 9 switches, simplifying network management and enhancing scalability.
-
Energy-Efficient Design: Intelligent fan speed adjustment for reduced power consumption and noise.
-
Robust Management: Offers web-based management, SNMP v1/v2/v3, RMON, and CLI via console or Telnet.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| SFP-10G-SR | SFP+ Transceiver | 10GBASE-SR SFP+, 850nm, multimode fiber, up to 300m |
| SFP-10G-LR | SFP+ Transceiver | 10GBASE-LR SFP+, 1310nm, single-mode fiber, up to 10km |
| SFP-10G-ER | SFP+ Transceiver | 10GBASE-ER SFP+, 1550nm, single-mode fiber, up to 40km |
| SFP-10G-ZR | SFP+ Transceiver | 10GBASE-ZR SFP+, 1550nm, single-mode fiber, up to 80km |
| PAC600S12-CB | Power Module | 600W AC PoE power module |
| PAC1000S56-CB | Power Module | 1000W AC PoE power module |
| PDC1000S56-CB | Power Module | 1000W DC PoE power module |
| FAN-023A-B | Fan Module | Pluggable fan module for enhanced cooling |
Comparison with Similar Items
| Feature | S5732-H48UM2CC | S5732-H24UM2CC | S5732-H48S6Q |
|---|---|---|---|
| Downlink Ports | 48 × Multi-GE | 24 × Multi-GE | 44 × GE SFP |
| Uplink Ports | 4 × 25GE SFP28 + 2 × 40GE/100GE QSFP28 | 4 × 25GE SFP28 + 2 × 40GE/100GE QSFP28 | 4 × 10GE SFP+ + 6 × 40GE QSFP+ |
| Switching Capacity | 2.4 Tbps | 2.4 Tbps | 2.4 Tbps |
| Forwarding Rate | 490 Mpps | 490 Mpps | 486 Mpps |
| Stacking Support | Yes (iStack) | Yes (iStack) | Yes (iStack) |
| Ideal Use Case | High-density Wi-Fi 6 access | Medium-density Wi-Fi 6 access | High-density aggregation |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5732-H48UM2CC |
| Downlink Ports | 48 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports |
| Uplink Ports | 4 × 25GE SFP28 ports and 2 × 40GE or 2 × 100GE QSFP28 ports |
| Switching Capacity | Up to 2.4 Tbps |
| Forwarding Rate | 490 Mpps |
| MAC Address Table | 32K entries |
| VLANs | Supports up to 4,096 VLANs (IEEE 802.1Q) |
| QoS | 8 queues per port, SP, WRR, and SP+WRR scheduling algorithms |
| IPv6 Features | IPv6 host, static routes, OSPFv3, BGP4+, IS-ISv6 |
| Security Features | 802.1X, MAC filtering, DHCP snooping, ARP inspection, port isolation |
| Management | Web-based, CLI, Telnet, SNMP v1/v2/v3, RMON, SSHv2 |
| Power Supply | Dual pluggable AC/DC power modules, supports up to 1000W PoE power budget |
| Power Consumption | Maximum: 977W (with full PoE load) |
| Operating Temperature | -5°C to 45°C (23°F to 113°F) |
| Dimensions (W×D×H) | 442 mm × 420 mm × 43.6 mm (17.4 in. × 16.5 in. × 1.7 in.) |
| Weight | ≤ 9.2 kg (20.28 lbs) |
| Warranty | Limited lifetime warranty |
