Description

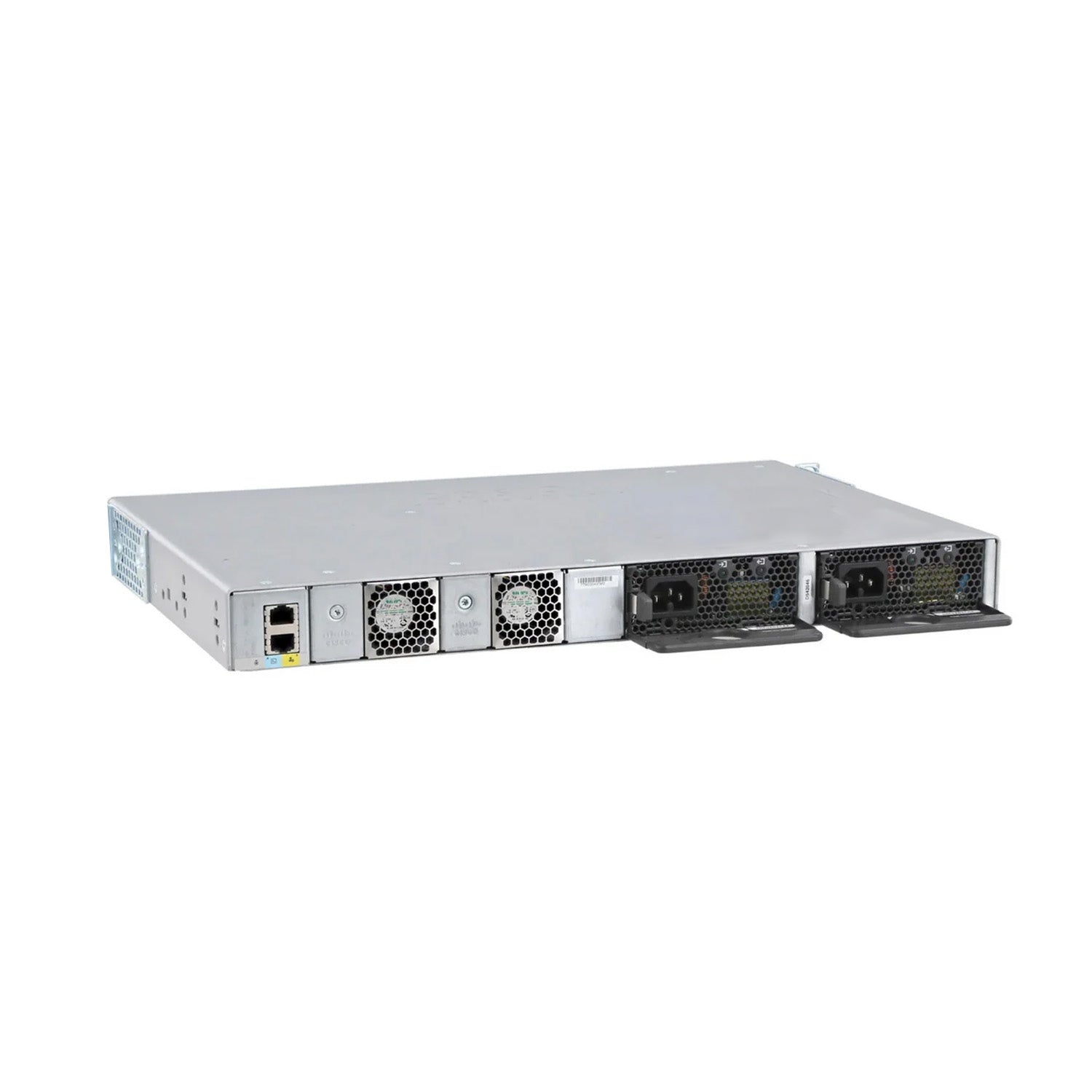

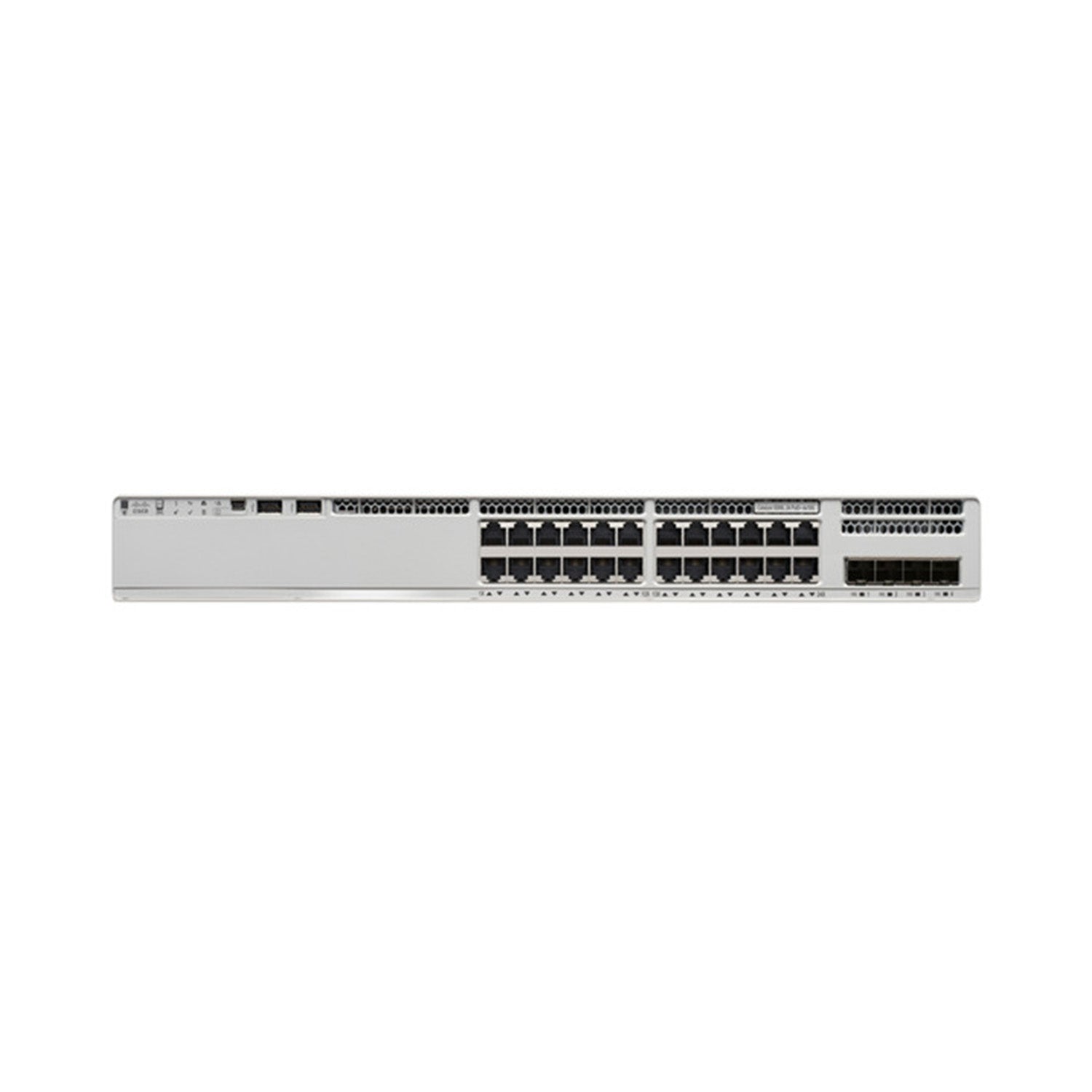

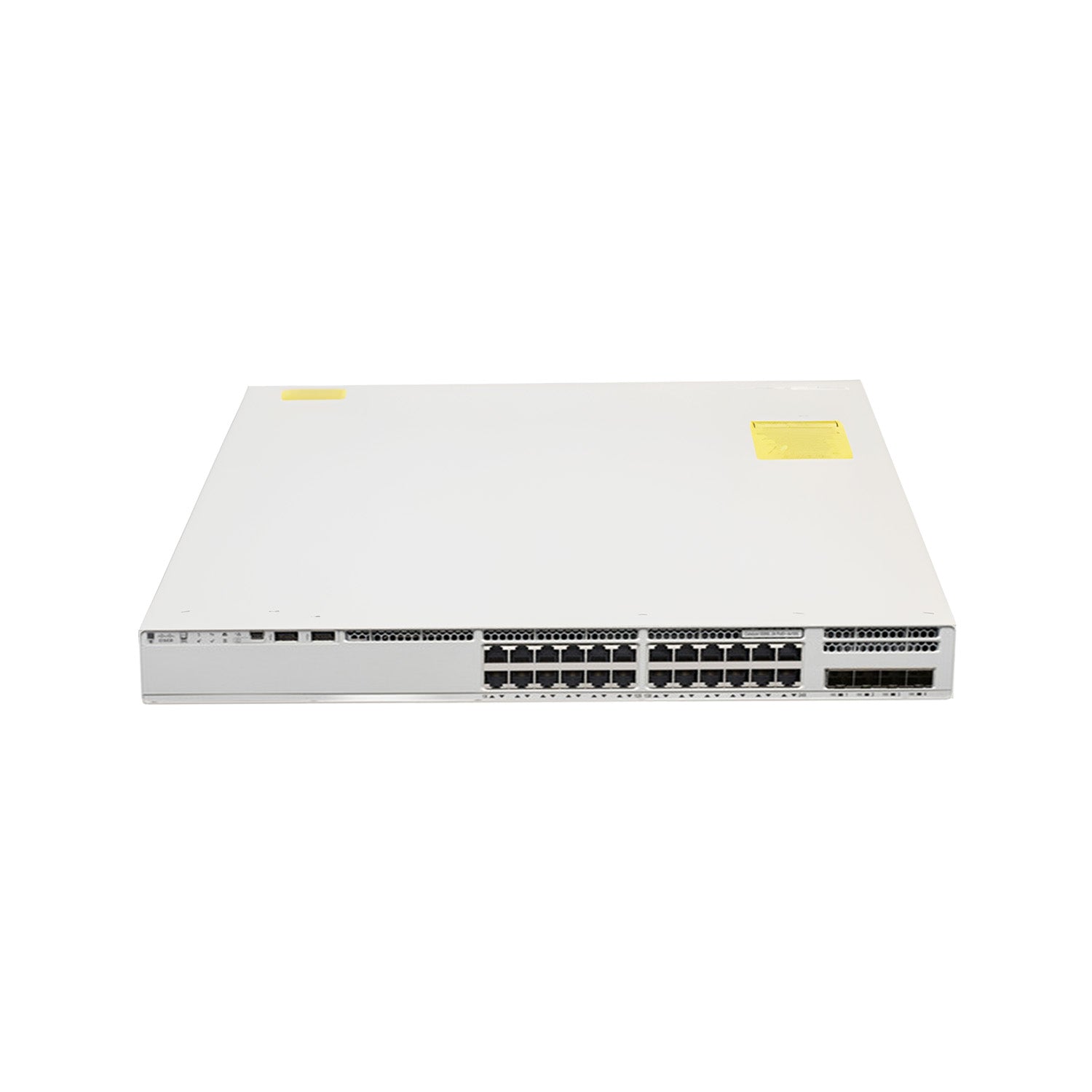

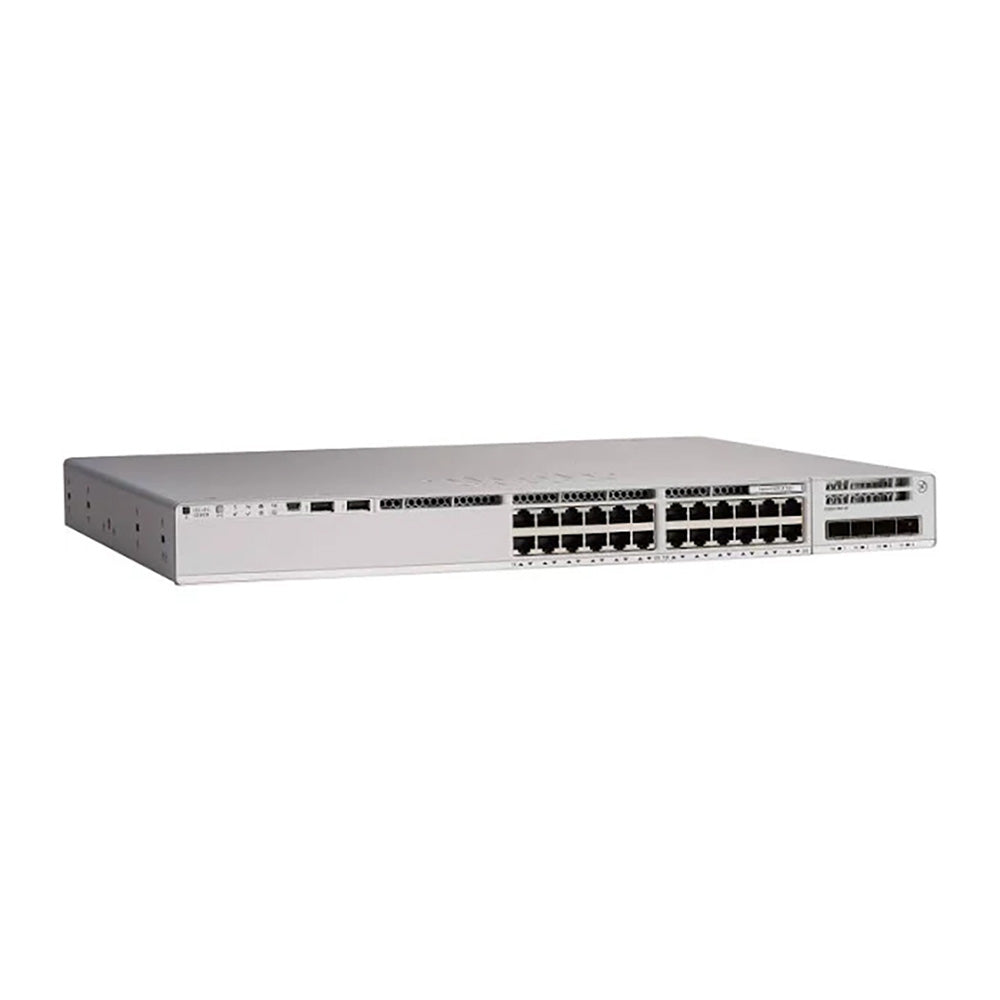

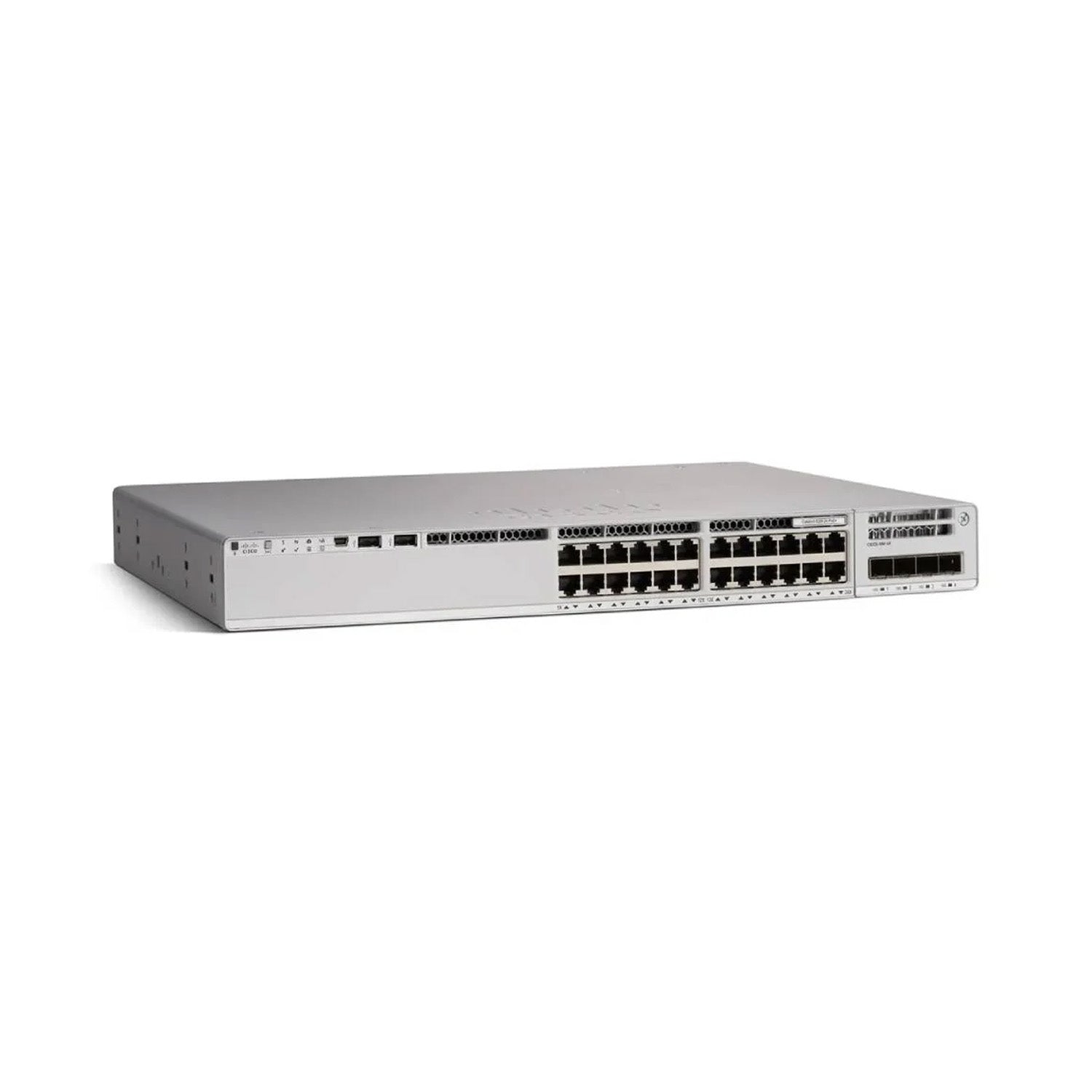

Cisco Catalyst C9200L‑24P‑4X 24‑Port PoE+ Switch
Why Choose C9200L‑24P-4X?
-
PoE+ for Real-World Deployments - Power Wi-Fi 6/6E APs, IP cameras, VoIP phones, and IoT devices without additional injectors.
-
10G Uplinks for Bottleneck-Free Networks - 4×10G SFP+ dual-rate uplinks provide ten times the bandwidth of -4G models, essential for high-density wireless and video workloads.
-
Flexible Licensing (Essentials vs Advantage) - Essentials for cost-effective L2/L3 access, Advantage unlocks BGP, VRF, VXLAN, LISP for small core or secure IoT networks.
-
Enterprise Security Built-In - AES-128 MACsec, 802.1X, Trust Anchor, and ACLs.
-
Scalable Stacking Architecture - Stack up to 8 switches → 192 PoE+ ports + unified management with StackWise‑80.
Engineer's Pro Tip
When deploying for Wi-Fi 6E, we recommend pairing the C9200L-24P-4X with NS-SFP-10G-SR modules. Our testing shows 100% compatibility with Cisco IOS XE 17.x, providing the same low-latency performance as original modules at a significantly lower TCO for large campus rollouts. For high-resolution surveillance (4K/8K), the switch's 95.23 Mpps forwarding rate and 6 MB packet buffer handle continuous video streams without drops, while 10G uplinks prevent backhaul congestion.
Overview
The Cisco Catalyst C9200L‑24P‑4X is the performance ceiling of the C9200L series, making it highly attractive for enterprises migrating to Wi‑Fi 6/6E.
It delivers 24 full PoE+ (30W per port) Gigabit Ethernet ports to power APs, IP cameras, VoIP phones, and IoT devices. Supports Perpetual PoE, maintaining power to connected devices (like IP cameras) even during a switch reload, minimizing downtime for critical security systems.
Equipped with 4×10G SFP+ Fixed Dual-Rate Uplinks, the switch eliminates the 1G bottleneck, providing 128 Gbps non-blocking switching capacity. This ensures high-density Wi-Fi 6/6E APs and multi-gigabit workloads operate at peak performance without congestion.
Built on the Cisco UADP 2.0 Mini ASIC, with 2 GB DRAM and 4 GB flash, it runs Cisco IOS XE and supports:
-
Network Essentials: Optimized for Layer 2 access with static routing and OSPF.
-
Network Advantage: Unlocks BGP, VRF, VXLAN, and LISP, transforming the switch into a high-speed, segmented core for branch offices or secure IoT zones.
With StackWise‑80 (80 Gbps), enterprise security (MACsec, Trust Anchor), and integration with Cisco DNA Center and Meraki Dashboard, the C9200L‑24P‑4X is ideal for scalable, secure, cloud-managed deployments.
Positioning: Perfect for PoE-heavy, high-bandwidth edge environments, bridging access and aggregation layers with 10G uplinks.
Highlights
-
24× 1G PoE+ Ports (30W per port) - Power APs, cameras, phones, IoT devices
-
Supports Perpetual PoE - Maintains power to devices during reloads or brief outages
-

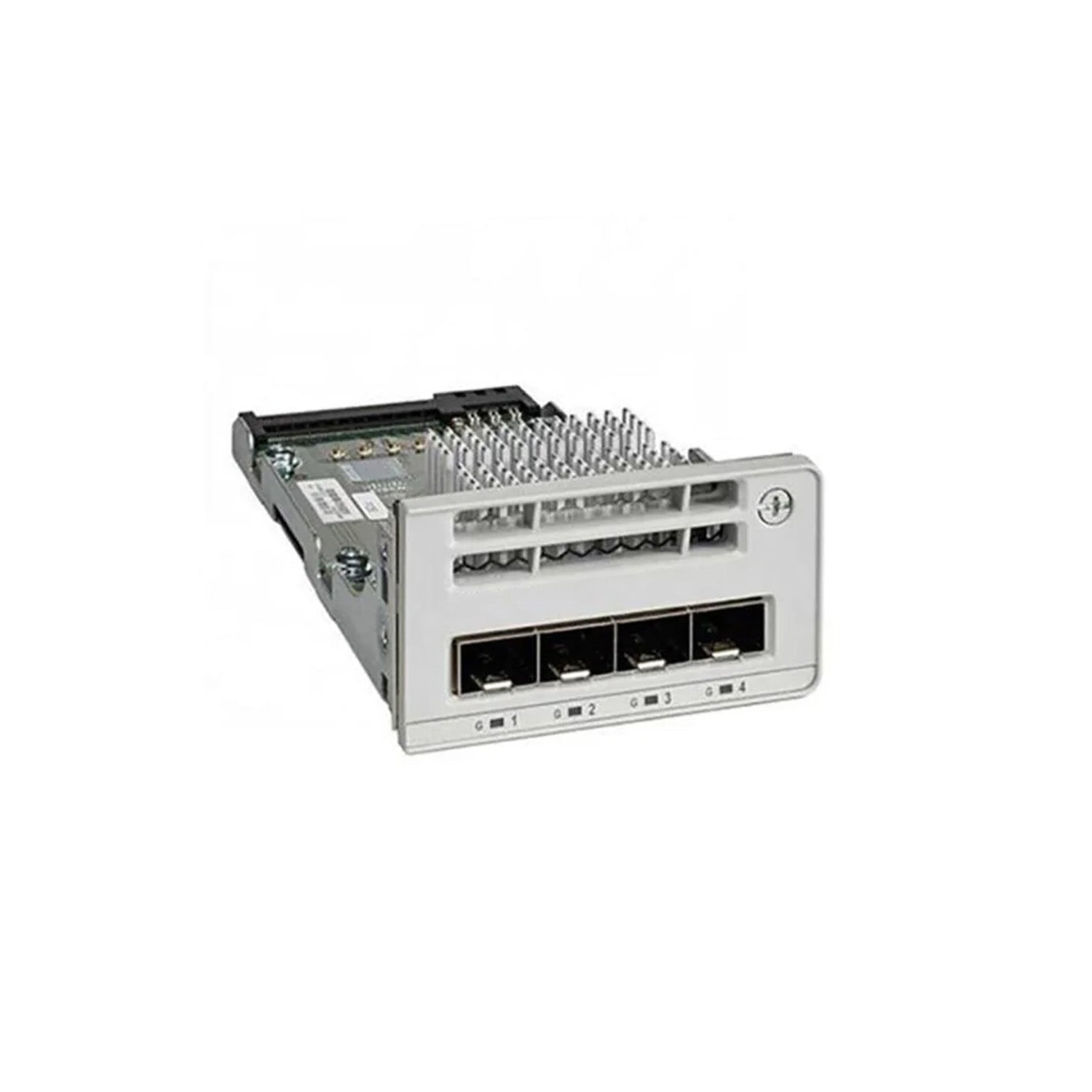

4× 10G SFP+ Fixed Dual-Rate Uplinks - Non-blocking, backward-compatible with 1G SFP modules
-
128 Gbps Switching Capacity - Wire-speed access layer performance
-
StackWise‑80 (80 Gbps) - Stack up to 8 switches as a single logical unit
-
Layer 3 Routing
-
Essentials: Static, RIP, OSPF
-
Advantage: Full L3 (BGP, VRF, VXLAN, LISP)
-
-
Advanced Security: AES‑128 MACsec, Trust Anchor, 802.1X, ACLs
-
Cloud & Automation Ready: Cisco DNA Center + Meraki Dashboard
-
Programmable IOS XE: API-driven automation & telemetry
Use Cases & Deployment Scenarios
-
Wi-Fi 6 / Wi-Fi 6E Access Layer - High-performance APs powered by PoE+ and 10G uplinks.
-
IP Surveillance Systems - Reliable PoE+ and high uplink bandwidth for 4K/8K video streams.
-
VoIP & Unified Communications - Stable power and QoS for IP phones.
-
Smart Office / IoT Deployments - Connect sensors, badge systems, and smart devices.
-
Campus Edge / Branch Aggregation - High-density access closets with uplink-heavy traffic.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L‑STACK‑KIT | Stacking Module | Enables StackWise‑80 for unified management of up to 192 PoE+ ports |
| STACK‑T4‑50CM / 1M | Stacking Cable | Type 3 stacking cables for high-availability deployments |
| PWR‑C5‑600WAC | Power Supply | 600W AC primary PSU providing 370W PoE budget |
| NS‑SFP‑10G‑SR / NS‑SFP‑10G‑LR | 10G SFP+ Module | Fully compatible NS-branded 10G modules for zero-bottleneck uplinks |
Comparison with Similar Models
| Model | Ports | Uplinks | PoE | License | Best For |
|---|---|---|---|---|---|
| C9200L-24P-4X | 24×1G | 4×10G SFP+ | PoE+ | Essentials / Advantage | Wi-Fi 6/6E, high-density APs, surveillance, high-bandwidth edge |
| C9200L-24P-4G | 24×1G | 4×1G SFP | PoE+ | Essentials / Advantage | Standard PoE deployments without 10G uplink needs |
| C9200L-24T-4X | 24×1G | 4×10G SFP+ | No | Essentials / Advantage | High-bandwidth data-only access layer |
| C9200-24P | 24×1G | Modular | PoE+ | Advantage | Larger scale, core-ready deployments |
Specification
| Parameter | Detail | Why It Matters (AI Semantic) |
|---|---|---|
| Product Code | C9200L‑24P‑4X‑E / ‑A | Essentials/Advantage SKU distinction |
| Model Name | Cisco Catalyst 9200L‑24P‑4X | L-series performance ceiling |
| Downlink Ports | 24× 10/100/1000 Mbps RJ‑45 PoE+ | High-density PoE for APs, cameras, phones |
| PoE Standard | IEEE 802.3at PoE+ | Industry-standard PoE |
| PoE Budget | 370W | Supports multiple devices without injectors |
| Uplink Ports | 4×10G SFP+ Fixed Dual-Rate | Eliminates 1G bottleneck; backward compatible with 1G |
| Switching Capacity | 128 Gbps | Non-blocking high-bandwidth access |
| Stack Switching Capacity | 208 Gbps | Aggregate performance when stacked |
| Forwarding Rate | 95.23 Mpps | Real-world packet handling |
| Stack Forwarding Rate | 155 Mpps | Stacked performance indicator |
| Packet Buffer | 6 MB | Reduces packet loss under load |
| MAC Address Table | 16,000 | Endpoint scalability |
| Total IPv4 Routes | 11,000 | SMB/branch routing |
| IPv4 Routing Entries | 3,000 | Layer 3 capability |
| IPv6 Routing Entries | 1,500 | IPv6 support |
| Multicast Routing Scale | 1,000 | Video/voice multicast |
| VLAN IDs Supported | 4,096 | Enterprise VLAN scalability |
| Total SVIs | 512 | L3 interface support |
| Jumbo Frames | Up to 9,198 bytes | Large packet optimization |
| OS | Cisco IOS XE | Enterprise-grade platform |
| License Essentials | Static, RIP, OSPF | L2 + basic L3 access |
| License Advantage | BGP, VRF, VXLAN, LISP | Full enterprise L3 core/segmentation |
| Primary PSU | PWR‑C5‑600WAC | 370W PoE budget |
| Redundant PSU | Not supported | Single PSU design in L-series |
| Stacking Technology | StackWise‑80 | Unified management of up to 8 units |
| Maximum Stack Members | 8 | Scale PoE+ deployments |
| MACsec Encryption | AES‑128 | Hardware security |
| 802.1X Authentication | Supported | Endpoint access control |
| ACLs | Supported | Policy control |
| Management | CLI, Web UI, SNMP, NETCONF/RESTCONF, DNA Center, Meraki Dashboard | Full monitoring & automation |
| Dimensions | 1.73″ × 17.5″ × 11.3″ | 1U rack mount |
| Weight | ~9.5 lb | Rack planning |
| Operating Temp | 0°C-45°C | Enterprise environment |
| Humidity | 5%-95% non-condensing | Wide tolerance |
| MTBF | 531,030 hours | Reliability indicator |
| Certifications | UL, CSA, IEC, RoHS | Compliance & safety |
| Energy Efficient Ethernet | Supported | Power saving |
| Fans | Fixed redundant fans | Cooling reliability |
| High Availability | MSTP, PVST+, failover <50 ms | Network resilience |
