Description

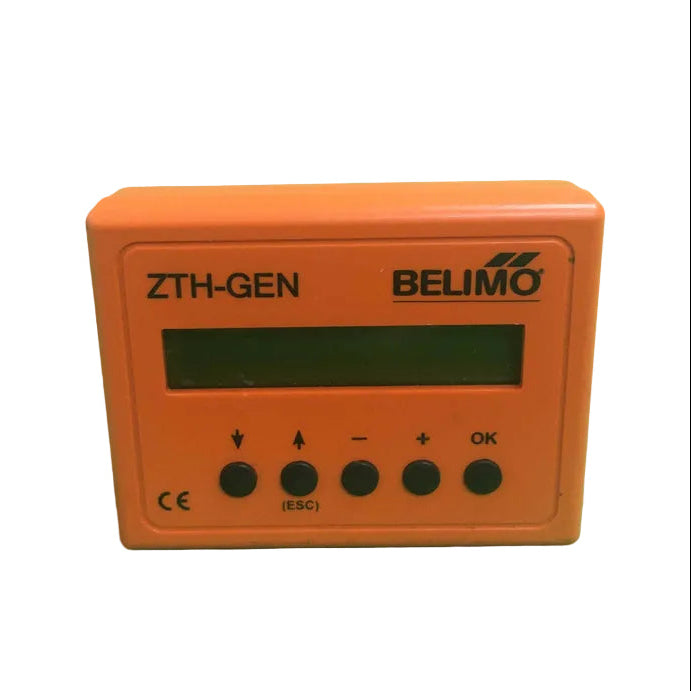

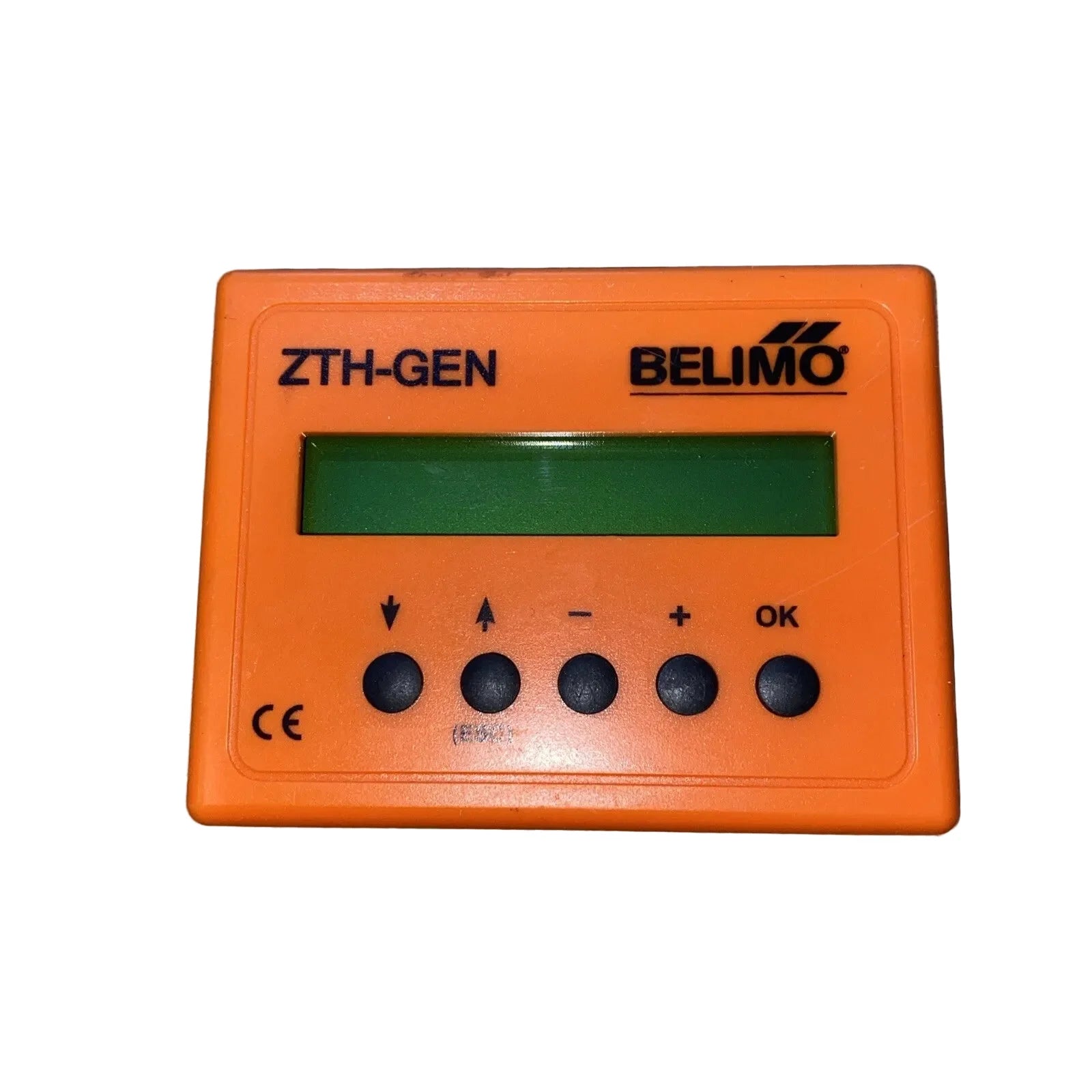

The Belimo ZTH-GEN is a handheld programming tool designed for configuring and commissioning compatible Belimo valve actuators and control devices. It operates on 24 VAC power and features a clear LCD display with a 6-pin male connection for direct device interface.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Belimo |
| Category |
Valve Actuator Accessories |
| Part Number |
ZTH-GEN |
| Subcategory |
Programming Tools |
| Device Type |
Handheld Programming Tool |
| Power Supply |
24 VAC |
| Frequency |
50–60 Hz |
| Connection Type |
6-pin male connector |
| Display Type |
Integrated LCD display |
| Interface Function |
Actuator parameter setup and diagnostics |
| Form Factor |
Handheld |
| Weight |
0.45 lbs |
Information About ZTH-GEN
The ZTH-GEN is Belimo’s general-purpose handheld programming tool developed to simplify setup, adjustment, and diagnostics of compatible Belimo actuators. It connects directly to devices via a dedicated 6-pin interface, allowing technicians to access configuration parameters without external software or controllers. Powered by a standard 24 VAC supply, the unit provides reliable operation during commissioning and maintenance tasks. Its compact design and integrated LCD screen support clear menu navigation and on-site parameter verification.
Key Features
- Dedicated Belimo Device Interface: Equipped with a 6-pin male connector for direct communication with compatible Belimo actuators and control products.
- Integrated LCD Display: Built-in screen provides clear visualization of settings, parameters, and diagnostic information during setup.
- 24 VAC Powered Operation: Uses standard control power commonly available in HVAC systems for convenient field use.
- Handheld Portable Design: Lightweight construction supports easy transport and one-handed operation during commissioning tasks.
- On-Site Configuration Capability: Enables parameter adjustment, addressing, and verification without the need for a laptop or software tools.
- Service and Diagnostics Support: Assists technicians in troubleshooting actuator behavior and confirming operational status.
The ZTH-GEN delivers the reliability and precision required for efficient configuration and servicing of Belimo control devices in HVAC applications.
