Description

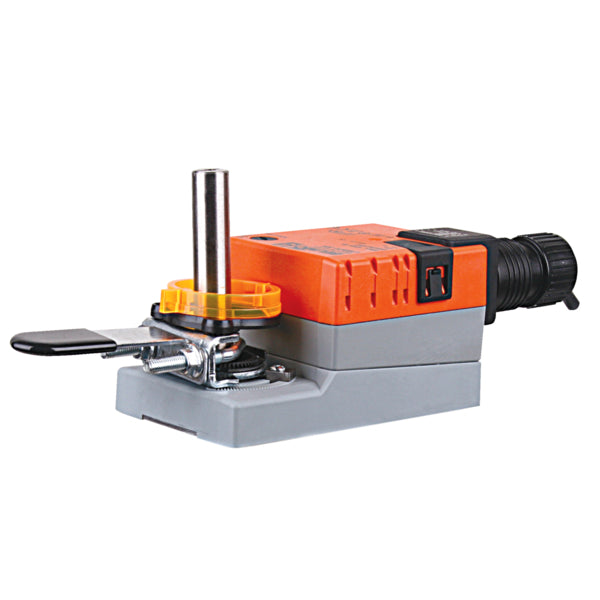

The Belimo NMX24-MFT-X1 is a configurable non spring return valve actuator designed for precise modulating control in hydronic HVAC systems. It operates on AC/DC 24 V power and uses MFT programmable technology to support flexible control modes and signal types.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Belimo |
| Category |
Control Valves |
| Part Number |
NMX24-MFT-X1 |
| Subcategory |
Valve Actuators |
| Nominal Voltage |
AC/DC 24 V |
| Nominal Frequency |
50/60 Hz |
| Voltage Range |
AC 19.2…28.8 V / DC 21.6…28.8 V |
| Power Consumption (Operation) |
3.5 W |
| Power Consumption (Rest) |
1.3 W |
| Transformer Sizing |
6 VA |
| Control Signal |
MFT programmable, 2…10 V |
| Input Impedance |
100 kΩ (2…10 V), 500 Ω (4…20 mA), 1500 Ω (PWM/On-Off/Floating) |
| Operating Modes |
VDC, PWM, On/Off, Floating Point |
| Position Feedback |
2…10 V |
| Angle of Rotation |
Max. 95°, adjustable |
| Running Time (Motor) |
45…170 s / 90° |
| Electrical Connection |
18 AWG plenum cable, 1/2" NPT |
| Ambient Temperature |
-30…50°C |
| Ambient Humidity |
Max. 95% RH, non-condensing |
| Weight |
1.6 lb (0.71 kg) |
Information About NMX24-MFT-X1
The NMX24-MFT-X1 is part of Belimo’s NM series of compact valve actuators engineered for flexible and reliable hydronic control. It incorporates Belimo MFT multi-functional technology, allowing field configuration of control signals, operating ranges, and actuator behavior to match specific system requirements. The actuator is designed for non fail-safe applications where continuous powered positioning is required without spring return action. Electronic overload protection throughout the full rotation range ensures dependable operation and long service life.
Key Features
- Non Spring Return Operation: Provides powered valve positioning without fail-safe spring action for applications where return on power loss is not required.
- MFT Programmable Control Technology: Supports multiple control modes including 2…10 V, 4…20 mA, PWM, on/off, and floating point for broad system compatibility.
- Configurable Control Range: Adjustable start and end points allow precise alignment of actuator response with building automation requirements.
- Integrated Position Feedback: Supplies a variable 2…10 V feedback signal for continuous valve position monitoring and closed-loop control.
- Electronic Overload Protection: Protects the actuator throughout the full 0…95° rotation range against obstruction or excessive load.
- Selectable Direction Of Motion: Motor rotation direction can be configured via onboard switch to accommodate different mounting orientations.
- Manual Override Push Button: Enables local valve positioning during commissioning, testing, or maintenance without tools.
The NMX24-MFT-X1 delivers the reliability and precision required for programmable modulating valve control in non fail-safe HVAC hydronic applications.
