Description

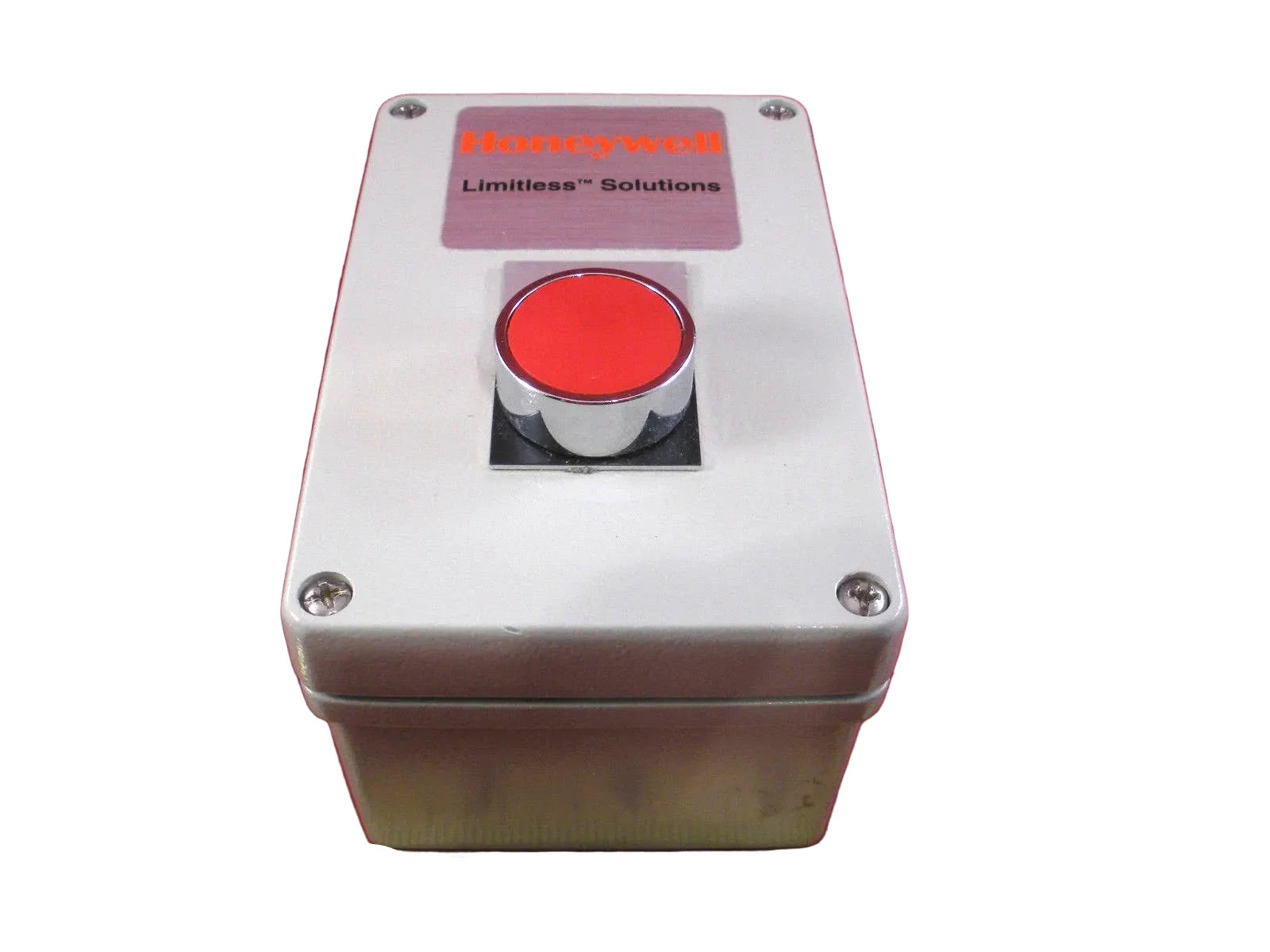

The Honeywell WOI1A11APAR is a wireless industrial pushbutton switch designed for remote control and signaling in automation systems. Operating at 3.6 VDC with low current consumption, it transmits control signals using a 2.4 GHz wireless protocol. This unit is suitable for industrial environments requiring cable-free operator input devices.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
WOI1A11APAR |
| Subcategory |
Limit Switch |
| Series |
Limitless™ WOI |
| Product Type |
Wireless Pushbutton Switch |
| Supply Voltage |
3.6 VDC |
| Current Consumption |
30 mA |
| Operating Force |
6.2 N (nominal 2 N snap action) |
| Frequency |
2.4 GHz |
| Protocol |
IEEE 802.15.4 |
| Actuator Type |
22 mm Round Momentary Pushbutton |
| Operating Temperature Range |
-25°C to +50°C |
| Compliance |
CE |
| Weight |
3.00 lbs |
Information About WOI1A11APAR
The WOI1A11APAR is part of Honeywell’s Limitless™ WOI series of wireless operator interface devices. It functions as a transmitter using the IEEE 802.15.4 wireless protocol to communicate with compatible receivers in industrial control systems. The device features a 22 mm round momentary pushbutton actuator housed in a durable enclosure for panel or equipment mounting. Designed for industrial applications, it operates within a wide temperature range and supports reliable wireless signaling without hardwired connections.
Key Features:
-
Wireless Pushbutton Operation: Transmits control signals without physical wiring.
-
2.4 GHz Communication: Uses IEEE 802.15.4 protocol for industrial wireless networks.
-
3.6 VDC Supply Voltage: Low-voltage operation for energy-efficient performance.
-
Momentary Snap-Action Mechanism: Provides immediate signal transmission upon actuation.
-
22 mm Industrial Interface: Standard panel-mount configuration for control stations.
-
Wide Temperature Range: Operates from -25°C to +50°C in industrial environments.
-
Low Current Consumption: Rated at 30 mA for efficient power usage.
The WOI1A11APAR delivers the reliability and precision required for wireless operator control in industrial automation systems.
