Description

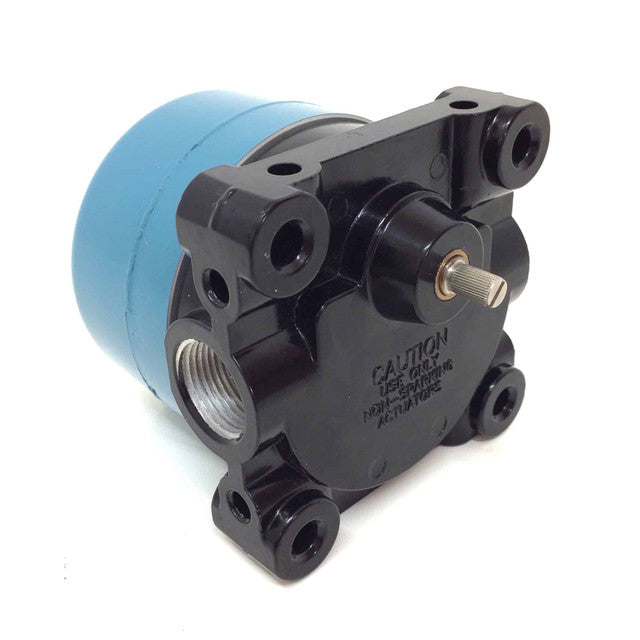

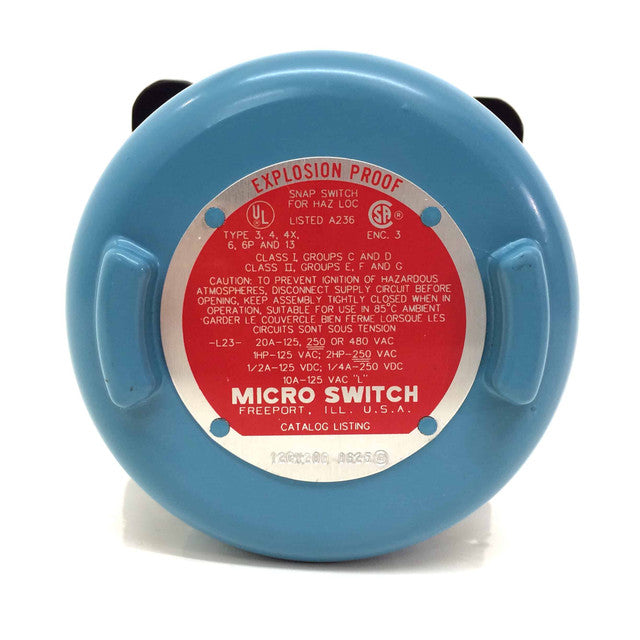

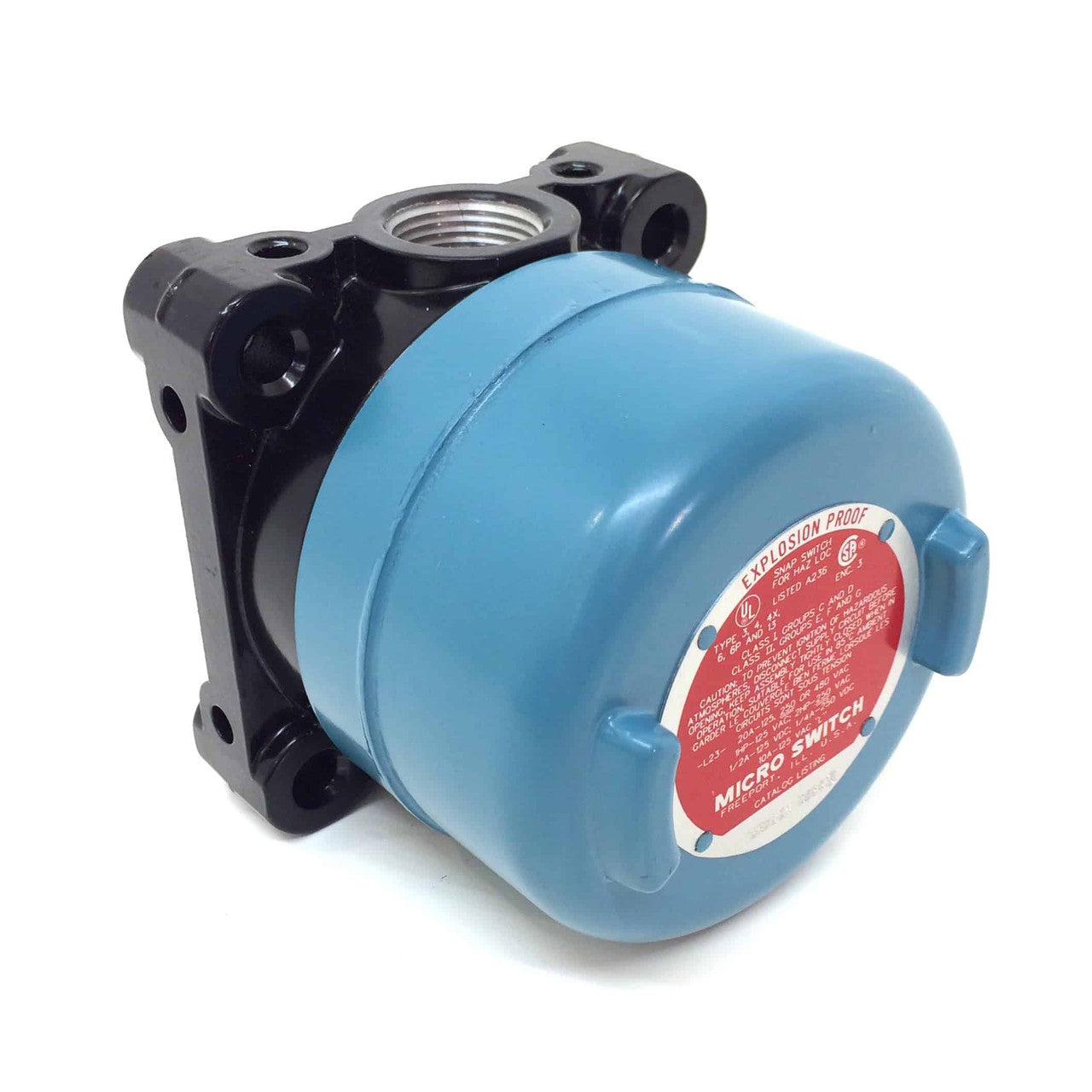

The Honeywell 12CX200 is an IP66-rated momentary action limit switch designed for hazardous locations, featuring a side rotary lever actuator. Built with a SPDT contact form (1NO/1NC) and a 20 A current rating, it provides durable switching for demanding industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Industrial Switches |
| Part Number |
12CX200 |
| Subcategory |
Limit Switch |
| Series |
CX Series |
| Contact Form |
SPDT (1NO/1NC) |
| Current Rating |
20 A |
| Voltage Rating AC |
480 VAC |
| Voltage Rating DC |
250 VDC |
| Operating Force |
0.5–1.25 N |
| Actuator Type |
Side rotary lever |
| IP Rating |
IP66 |
| Special Features |
Hazardous location, explosion-proof |
| Standards |
UL, CSA |
| Termination |
Screw terminals |
| Mounting |
Chassis mount |
| Housing Material |
Aluminum |
| Temperature Rating |
-25°C to +85°C |
| Weight |
2.49 lbs |
Information About 12CX200
The 12CX200 is part of Honeywell’s CX Series, specifically engineered for reliable performance in hazardous locations and harsh industrial conditions. This limit switch features a side rotary head with a lever actuator, allowing precise and repeatable actuation for position sensing and control applications. It supports a maximum contact voltage of 480 VAC and 250 VDC, with screw-type terminations for secure wiring. The IP66 enclosure ensures dust-tight and water-resistant operation, while compliance with UL and CSA standards guarantees safety and reliability. Constructed from robust aluminum and rated for a wide operating temperature range, it is well-suited for heavy-duty applications such as material handling, conveyor systems, and process control.
Key Features:
-
Hazardous location design: Certified for use in hazardous environments, ensuring safety in explosive or flammable atmospheres.
-
High electrical capacity: Supports up to 20 A at 480 VAC or 250 VDC for versatile industrial switching needs.
-
SPDT contact configuration: Provides both normally open and normally closed contact options in a single switch.
-
Side rotary lever actuator: Enables precise actuation for position sensing and mechanical control applications.
-
Rugged IP66 enclosure: Dust-tight and resistant to water ingress for reliable outdoor and washdown operation.
-
Wide temperature range: Operates from -25°C to +85°C to suit varied industrial environments.
-
Explosion-proof construction: Meets stringent safety standards for hazardous location applications.
-
Secure wiring connections: Screw terminal design allows firm and dependable conductor attachment.
The 12CX200 delivers the reliability and safety required for position sensing and control in hazardous and heavy-duty industrial applications.
