Description

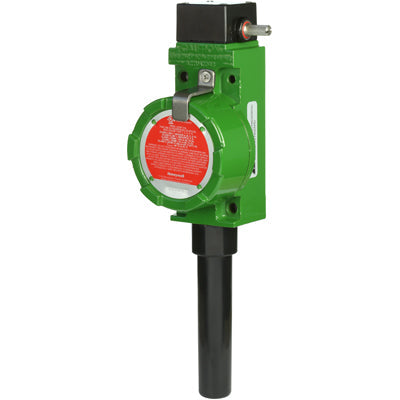

The Honeywell WBX1A12ABA3 is a wireless heavy-duty limit switch from the Limitless™ WBX series designed for industrial position sensing applications. It features a side rotary actuator and operates within a -40°C to +70°C temperature range. The device supports wireless communication for remote monitoring in automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
WBX1A12ABA3 |
| Subcategory |
Limit Switch |
| Series |
Limitless™ WBX |
| Device Type |
Wireless Heavy-Duty Limit Switch |
| Actuator Type |
Side Rotary |
| Operating Force Max |
0.452 N·m |
| Mechanical Life |
1,000,000 Cycles |
| Mounting Type |
Screw Mount |
| Termination Style |
Cable |
| Operating Temperature |
-40°C to +70°C |
| RoHS Compliant |
Yes |
| Weight |
3.00 lbs |
Information About WBX1A12ABA3
The WBX1A12ABA3 belongs to Honeywell’s WBX Series of wireless heavy-duty limit switches. It combines mechanical limit switch functionality with point-to-point wireless communication capability for applications where wired connections are impractical. The unit uses a side rotary actuator with a maximum operating torque of 0.452 N·m and is designed for screw mounting. With a mechanical life rated up to 1,000,000 cycles and industrial-grade construction, it is suitable for harsh automation environments.
Key Features:
-
Wireless Heavy-Duty Design: Combines limit switch function with wireless communication.
-
Side Rotary Actuator: Designed for rotary position detection.
-
Operating Torque 0.452 N·m: Suitable for mechanical actuation systems.
-
Wide Temperature Range: Operates from -40°C to +70°C.
-
Mechanical Life 1,000,000 Cycles: Designed for extended industrial use.
-
Screw Mount Installation: Secure mechanical mounting method.
-
Cable Termination: Industrial connection style.
-
RoHS Compliant: Meets environmental compliance standards.
The WBX1A12ABA3 delivers the reliability and precision required for wireless position sensing in industrial automation systems.
