Description

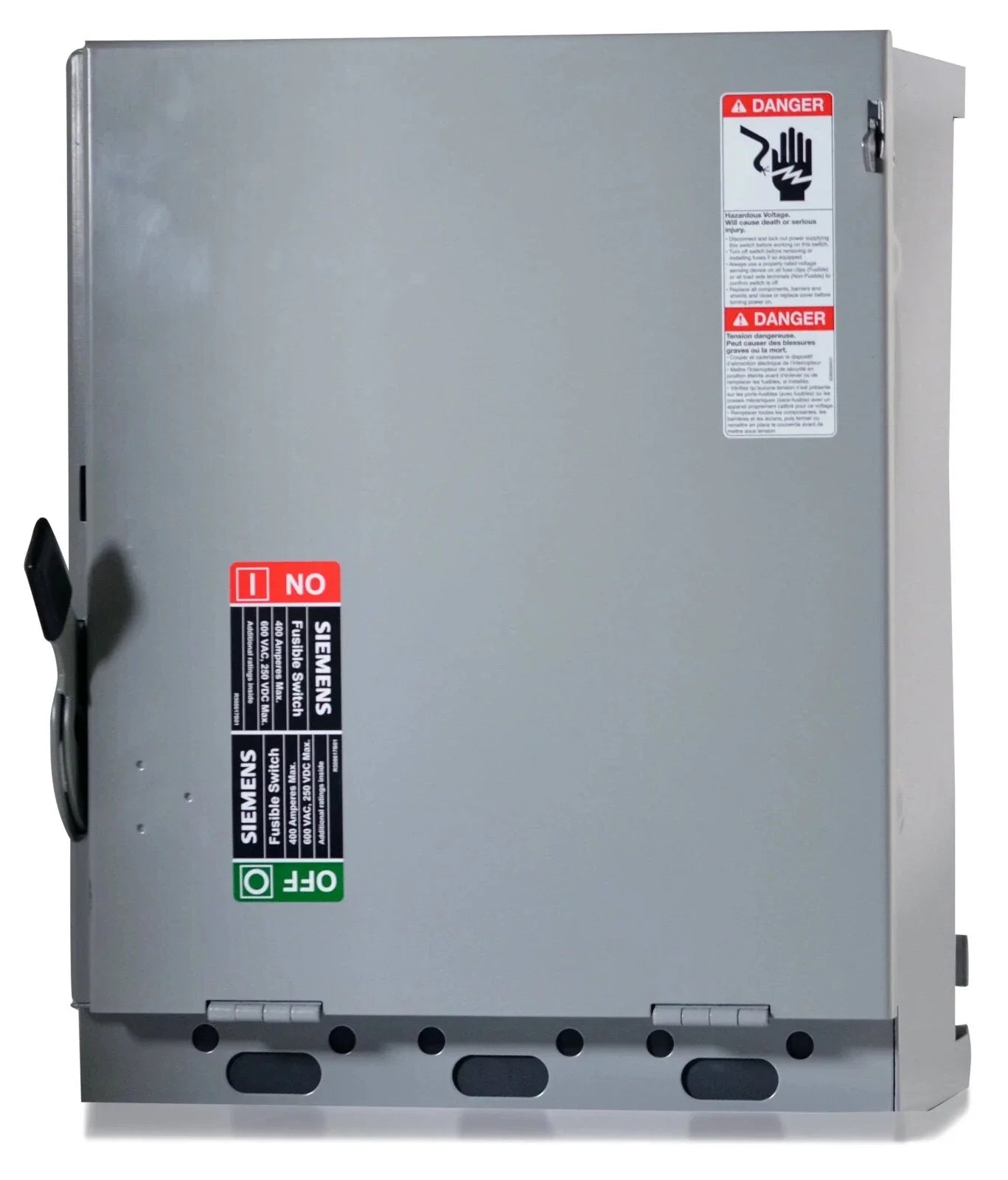

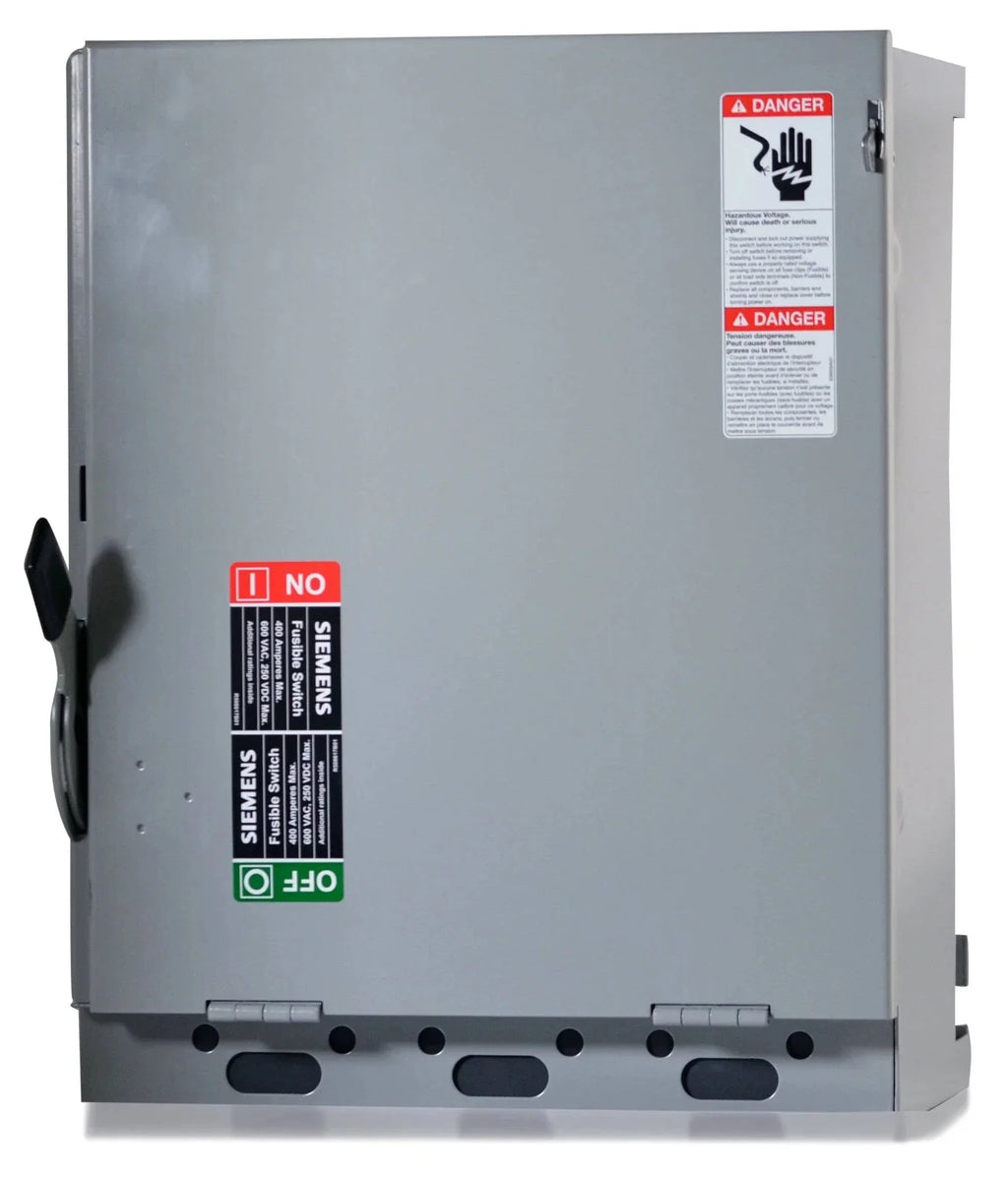

The Siemens V7H3606 is a 600-amp, 600-volt Vacu-Break panel board safety switch with a fusible design. Built for three-phase power systems, it provides secure circuit isolation and fault protection with a high interrupting rating of 200kA at 480V.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
ITE, Siemens |
| Category |
Safety Switches |
| Part Number |
V7H3606 |
| Subcategory |
Panel Mount |
| Family |
Vacu-Break |
| Type |
V7H |
| Voltage Rating |
600 VAC |
| Amperage Rating |
600 A |
| Poles |
3 |
| Phase |
3 |
| NEMA Rating |
1 |
| Fuse Type |
R, H, K |
| Switch Style |
Fusible |
| Configuration |
Single |
| Interrupting Rating |
200 kA @ 480V |
| Mounting Type |
Panel |
| Frame Type |
V7H |
| Approval |
UL Listed |
| Dimensions (L x W x H) |
21.6 in x 18.1 in x 14.7 in |
| Weight |
75 lbs |
Information About V7H3606
The V7H3606 is part of Siemens’ Vacu-Break safety switch series, engineered for demanding commercial and industrial applications. With a 600A rating and 600V operating capacity, it provides reliable circuit protection in three-phase electrical systems. The fusible design allows the use of R, H, and K type fuses for flexible protection, while its high interrupting rating of 200kA at 480V ensures robust fault handling. Designed for panel mounting, the V7H3606 combines Siemens durability with UL-approved safety for critical power distribution environments.
Key Features:
- High Current Capacity: Rated for 600 amps continuous duty, this switch supports heavy industrial loads and ensures stable power distribution without overheating.
- Voltage Rating: Designed for systems up to 600 VAC, it provides compatibility with medium-voltage applications in both commercial and industrial facilities.
- Three-Pole Protection: Covers all three phases of a power system, delivering balanced fault protection and safe isolation during maintenance.
- Fusible Configuration: Accepts R, H, and K class fuses, allowing users to tailor overcurrent protection to specific operational requirements.
- Exceptional Interrupting Rating: With a 200kA rating at 480V, the switch can handle high fault currents, reducing the risk of equipment damage and ensuring personnel safety.
- Vacu-Break Technology: Part of Siemens’ trusted Vacu-Break series, it offers proven reliability and durability in demanding environments.
- UL Certification: Meets stringent industry standards for safety and performance, guaranteeing compliance in regulated installations.
- Panel Mounting Design: Built for secure installation in panel board systems, ensuring consistent operation and simplified maintenance access.
- Rugged Construction: Weighing 75 lbs with large-frame design, it withstands mechanical stress and harsh environmental conditions.
- Compact Dimensions: At 21.6" x 18.1" x 14.7", it provides a balance of high capacity with manageable installation space.
The V7H3606 delivers the reliability and precision required for heavy-duty power distribution, ensuring safe isolation and robust protection in commercial and industrial electrical systems.
