Description

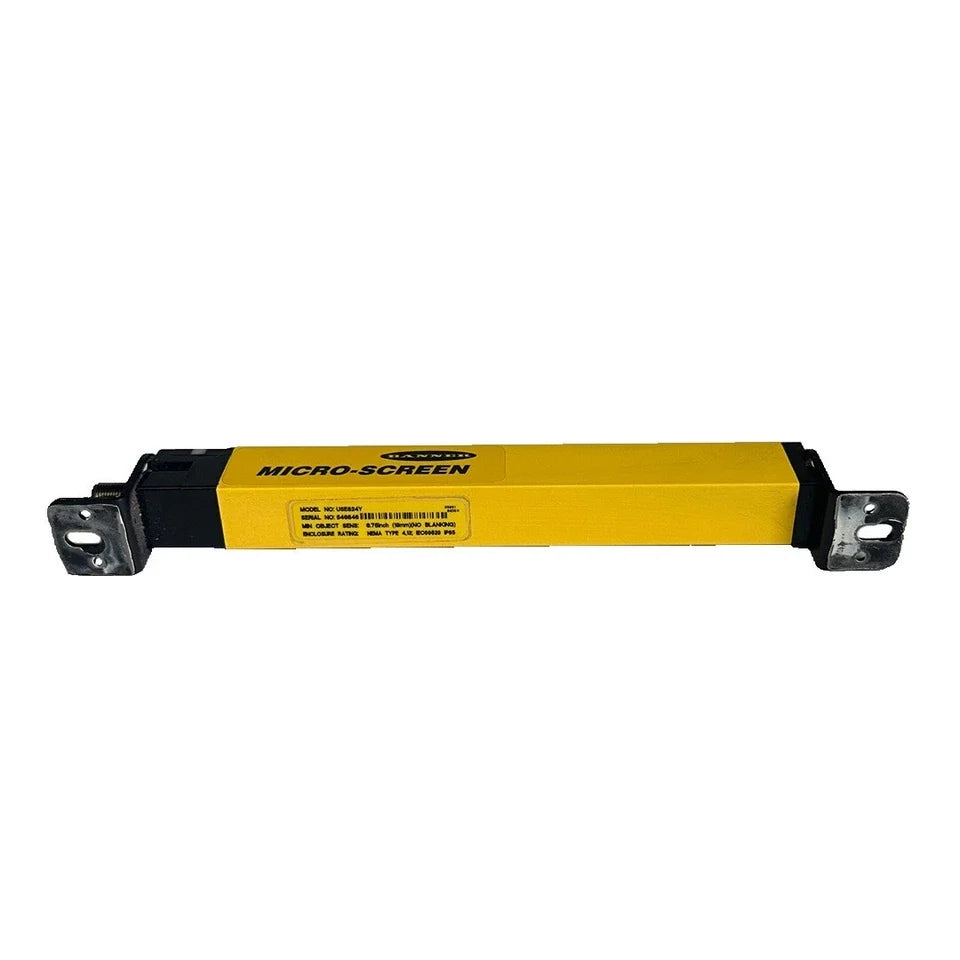

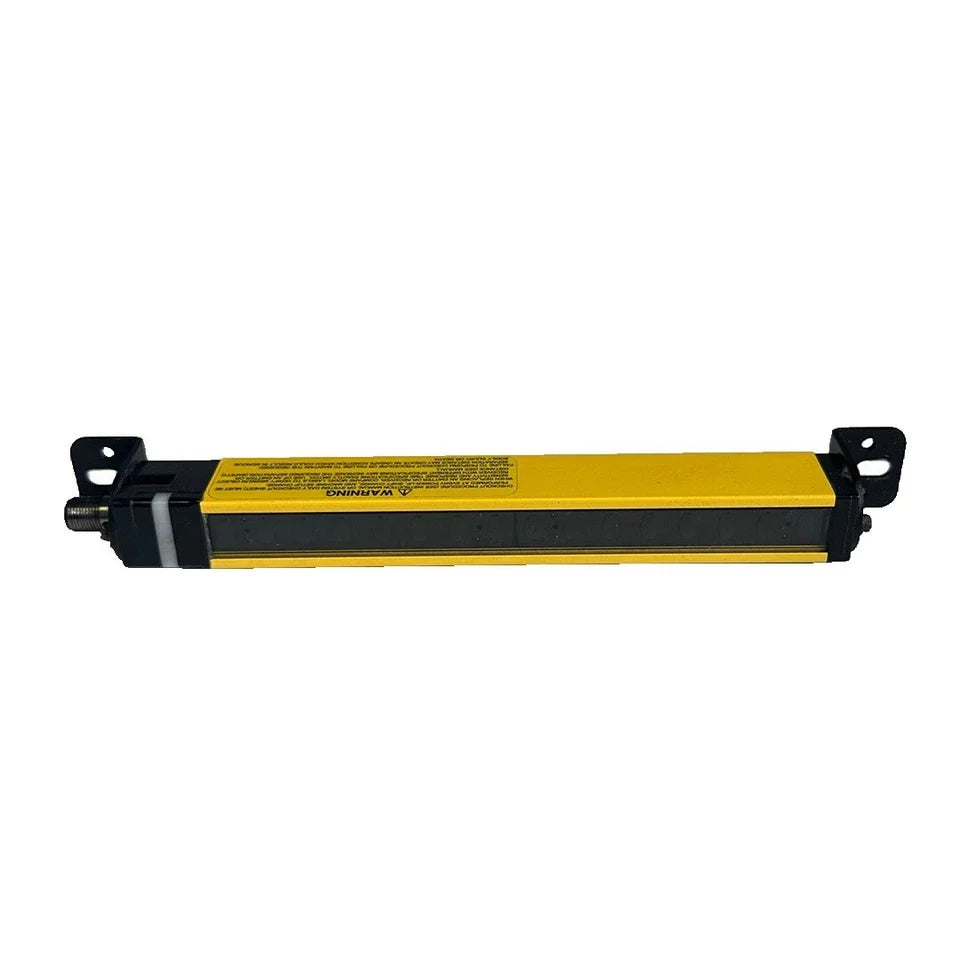

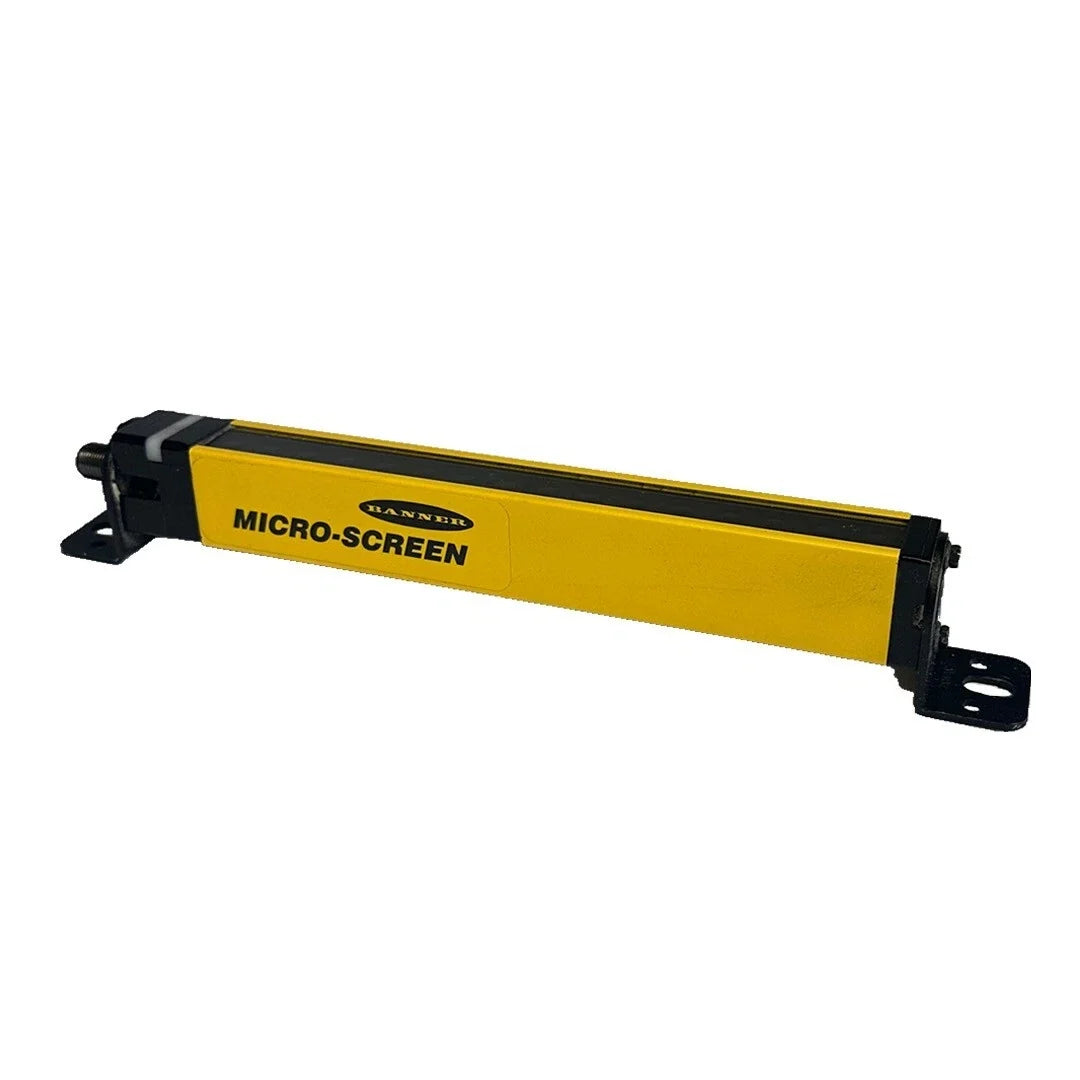

The Banner Engineering USE824Y is a safety light curtain emitter designed for personnel protection in industrial machine guarding applications. It generates an infrared light field across an 8-inch defined area and operates as the emitter component of a Micro-Screen safety system. The device is intended for use with a compatible receiver to detect intrusions into hazardous zones.

Technical Specifications

Information About  USE824Y

The USE824Y is part of the Banner Engineering Micro-Screen series, which provides compact safety light curtains for point-of-operation guarding. This unit functions exclusively as an emitter and must be paired with a corresponding receiver, such as the USR824Y, to form a complete safety system. It emits a synchronized infrared light pattern that is monitored by the receiver to detect object or personnel entry into the protected area. When correctly integrated with appropriate safety controls, the system supports safety-rated machine guarding applications.

Key Features:

• Safety light curtain emitter: Generates an infrared protective light field for machine guarding.

• 8-inch defined area: Provides localized protection coverage for hazardous machine zones.

• Infrared sensing technology: Supports reliable detection through modulated light beams.

• Micro-Screen system compatibility: Designed for use with matching Micro-Screen receivers.

• 19.1 mm beam spacing: Enables detection of objects meeting minimum size requirements.

• Industrial safety application design: Intended for point-of-operation guarding systems.

The USE824Y delivers the reliability and precision required for compact industrial safety light curtain emitter applications.
