Description

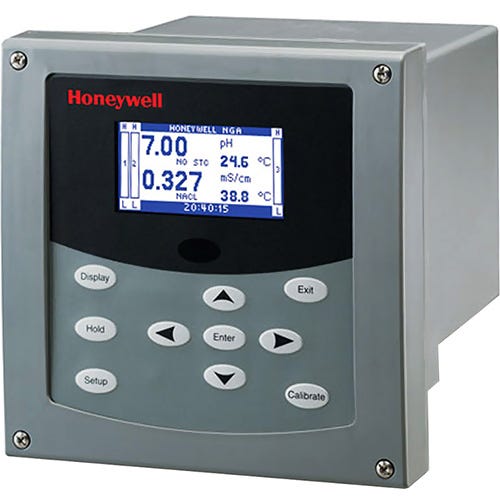

The Honeywell UDA2182-CC1-NN2-NN-N-0E00-EE is a single-channel analytical analyzer designed for precise conductivity measurement in industrial liquid analysis applications. It combines digital reliability with dual current outputs and integrated alarm functions in a compact panel-mounted design.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
UDA2182-CC1-NN2-NN-N-0E00-EE |
| Subcategory |
Temperature/Process Control |
| Series |
UDA2182 |
| Analyzer Type |
Single Input (Contacting Conductivity) |
| Channel 1 Input |
Contacting Conductivity
|
Channel 2 Input
|
None |
| Outputs |
(2) 4–20 mA analog outputs |
| Alarm Relays |
(2) SPDT programmable alarm relays |
| Communications |
Infrared (IR) diagnostics port |
| Mounting Type |
Panel Mount |
| Display |
LCD with menu navigation |
| Weight |
2.59 lbs |
Information About UDA2182-CC1-NN2-NN-N-0E00-EE
The UDA2182 model is a universal dual-input analytical platform, and the CC1-NN2 configuration defines it as a single-input unit for contacting conductivity on Channel 1, with Channel 2 unused. It includes two 4–20 mA analog outputs for process control and two programmable alarm relays for safety and alert functions. This panel-mount unit supports non-invasive infrared communication for diagnostics and configuration, making it suitable for chemical, water treatment, and industrial utility monitoring. Built for durability and ease of use, the UDA2182 features a large LCD display, menu-driven interface, and flexible mounting options.
Key Features:
- Single Input: Contacting Conductivity (CH1): Measures conductivity through precision sensors connected to input channel 1.
- Dual 4–20 mA Analog Outputs: Provides scalable current loops for real-time control and monitoring.
- Two Configurable Alarm Relays: Enables alerts or interlocks based on user-defined measurement thresholds.
- Infrared Communications Port: Allows setup and diagnostics without direct electrical contact.
- Panel Mount Design: Supports easy integration into control panels or instrument enclosures.
- Dual-Channel Platform (CH2 Unused): Offers future expandability while maintaining single-input operation.
- Menu-Driven Interface: Simplifies navigation and calibration via keypad and display.
- Reliable for Harsh Environments: Suitable for industrial process applications like water treatment or chemical manufacturing.
- Real-Time Measurement: High-speed data refresh for immediate process feedback.
- Compact Footprint: Saves space while delivering full analytical control and output.
The UDA2182-CC1-NN2-NN-N-0E00-EE delivers robust, accurate conductivity analysis with integrated outputs and alarms, all within a scalable and easy-to-install form factor.
